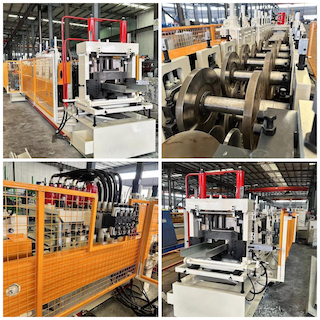

Cee Purlin Roll Forming Machine in Missouri, USA

The Cee Purlin Roll Forming Machine is a highly efficient and versatile solution designed for manufacturing steel purlins in the construction and building industry. Located in Missouri, USA, this machine caters to local construction projects, delivering high-quality purlins used in metal buildings, roofing systems, and structural applications. Its robust construction, advanced automation, and flexibility make it ideal for manufacturing precision-engineered profiles that meet the demands of the U.S. market.

Machine Specifications

• Profile Size: 5" to 12"
• Coil Width: Variable (adjustable to suit various profile requirements)
• Forming Speed: 50 - 60 ft/min
• Material Thickness: Variable (compatible with a range of gauges)
• Machine Weight: 15 tons
• Machine Footprint: 60 ft x 12 ft
• Main Power: 32 Hp, 480V, 3-phase
• Stations: 21 forming stations
• Cutting Type: Hydraulic shear for precision cutting
• Control System: Delta PLC for user-friendly operation and precise control
• Safety Covers: Yes, ensuring operator safety during operation

Profiles and Their Specifications

The machine produces Cee purlins commonly used in structural applications. Below are the key details:

• Profile Size: Adjustable from 5" to 12" with precise forming capability.
• Material Compatibility: Handles variable material thicknesses, allowing customization for different structural needs.
• Market Application: Roofing, wall structures, and secondary framing in industrial and commercial buildings.

Key Features

1. High Efficiency: Capable of producing profiles at speeds of 50-60 ft/min.
2. Customizable Profiles: Adjustability in profile size and material thickness for diverse applications.
3. Durable Construction: A heavy-duty 15-ton machine built to withstand continuous operation.
4. Compact Design: Despite its robust nature, the 60 ft x 12 ft footprint allows it to fit within standard factory layouts.
5. Advanced Automation: Equipped with a Delta PLC system for seamless control and minimal downtime.
6. Safety First: Integrated safety covers to protect operators during use.

Setup and Installation

Located in Missouri, USA, the machine is well-suited for local manufacturing industries, offering:

• Easy delivery and setup with local support.
• Comprehensive training for operators to ensure smooth operation.
• Ongoing technical support and maintenance services available within the region.

Maintenance Requirements

To ensure longevity and consistent performance:

• Regular lubrication of forming stations and moving parts.
• Periodic inspection of the hydraulic system for leaks or wear.
• Maintenance of the Delta PLC system to ensure software updates and error-free operation.
• Replacement of worn-out components, such as rollers or cutting blades, to maintain profile accuracy.

Question and Answer Section

Q: What is the forming speed of this machine?

A: The Cee Purlin Roll Forming Machine operates at a speed of 50-60 ft/min.

Q: Can the machine handle variable material thickness?

A: Yes, the machine is designed to process materials of varying thicknesses, making it versatile for different project needs.

Q: What are the power requirements for the machine?

A: The machine requires 32 Hp power with a 480V, 3-phase connection.

Q: Is this machine suitable for high-volume production?

A: Absolutely. With 21 forming stations and a forming speed of up to 60 ft/min, it is ideal for large-scale production.

Q: What kind of cutting system does it use?

A: The machine uses a hydraulic shear cutting system for precision and durability.

Q: Does it come with safety features?

A: Yes, the machine is equipped with safety covers to protect operators during operation.

Q: What industries commonly use Cee purlins?

A: Cee purlins are extensively used in construction for roofing systems, wall structures, and secondary framing.

Q: What support is available for setup and training in Missouri?

A: Local setup and training services are available in Missouri, along with technical support to ensure smooth operation.

Q: Can the profiles be customized beyond 5" to 12"?

A: While the standard range is 5" to 12", customizations may be possible depending on specific requirements. Please consult the manufacturer for details.
