PUTAI Ceiling Panel Roll Forming Machine – High-Speed Metal Ceiling Panel Production Line

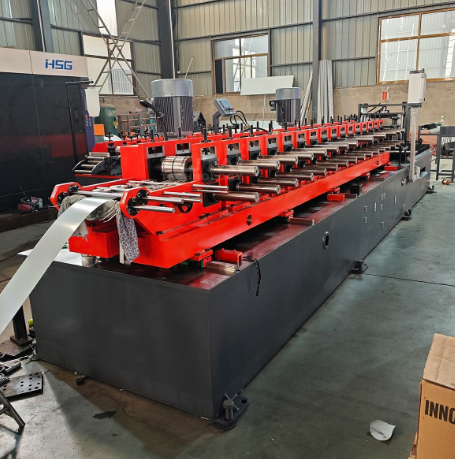

The PUTAI ceiling panel roll forming machine is an automatic production line for manufacturing long metal ceiling panels from galvanized or pre-painted steel coil. It forms 0.5–0.9 mm steel through 16 stations with forged Cr12 rollers at up to 50 m/min, then cuts each panel to length with a servo cutting system. Metal ceiling panels are valued for their durability, clean appearance and fire resistance, and this line gives manufacturers the speed and consistency needed for high-volume supply to commercial, industrial and institutional projects.

Why Metal Ceiling Panels?

• Durable and impact resistant, with a long service life
• Non-combustible, helping buildings meet fire safety requirements
• Easy to clean, suited to hospitals, kitchens and public spaces
• Available in a wide range of colours and finishes using pre-painted coil
• Moisture resistant, so they won't sag or stain like fibre tiles

Key Features

• High production speed of up to 50 m/min
• Forms 0.5–0.9 mm galvanized and pre-painted steel
• 16 forming stations for accurate, flat panels with clean edges
• Forged Cr12 rollers for high wear resistance and long service life
• Servo motor cutting with length set by encoder or punched-hole detection
• Adjustable straightening rolls remove coil curvature for flat panels
• Edge guiding keeps the strip centred for consistent panel dimensions
• Gear drive for accurate, low-maintenance running
• Archway roller stands with graduated adjusting nuts for quick, repeatable setup
• Hydraulic cylinders and pumps in national standard sizes, easy to replace worldwide

Technical Specifications

• Product: Metal ceiling panels
• Material: Galvanized steel (GI), pre-painted steel (PPGI)
• Material thickness: 0.5 – 0.9 mm
• Forming stations: 16
• Roller material: Cr12 (D3), forged
• Shaft: 50 mm, 45# steel, forged
• Speed: Up to 50 m/min
• Transmission: Gear drive
• Cutting system: Servo motor cutting
• Machine weight: Approx. 3,500 kg

How the Production Line Works

• Decoiling: Steel coil is loaded and fed into the line
• Straightening and guiding: The strip is flattened and centred before forming
• Roll forming: 16 stations shape the strip into the finished panel profile
• Servo cutting: Each panel is measured and cut to the programmed length
• Output: Finished panels are collected for packing

Applications

• Commercial offices and retail spaces
• Hospitals, clinics and laboratories
• Schools, universities and public buildings
• Industrial facilities and clean areas
• Airports and transport buildings

Related PUTAI Ceiling Machines

• Linear strip ceiling panel roll forming machine
• U baffle ceiling roll forming machine
• Ceiling carrier and cassette ceiling bar roll forming machines

About the Manufacturer

PUTAI operates its production factory in Bazhou, Hebei, with its company office in Tianjin, and has over 20 years of experience building cold roll forming machinery. Its range covers roof sheet and floor deck machines, light steel keel and ceiling machines, stud and track and C Z U forming lines, hydraulic uncoilers and shutter door machines. The company holds two patents for machines it developed in-house and uses branded electrical components and steel from established mills.

Commercial Details

• Brand: PUTAI Technology
• Company: Tianjin PUTAI Technology Co., Ltd
• Factory: Bazhou, Hebei, China
• Minimum order: 1 set
• Colour: Customised
• Packing: Plastic film wrap for export
• Warranty: One year
• Services: Installation and operator training

Frequently Asked Questions

• Where is this machine made? At PUTAI's factory in Bazhou, Hebei, China. The company office is in Tianjin, and machines are exported worldwide.
• What material and thickness does it form? Galvanized and pre-painted steel from 0.5 to 0.9 mm.
• How fast does it run? Up to 50 m/min.
• Why choose metal ceiling panels over mineral fibre tiles? Metal panels are more durable, non-combustible, moisture resistant and easier to clean.
• Are installation and training included? Yes. PUTAI provides installation and operator training services.
• What should I send for a quotation? Your panel profile drawing, panel width, thickness, any perforation needs, target output, and local voltage and frequency.
