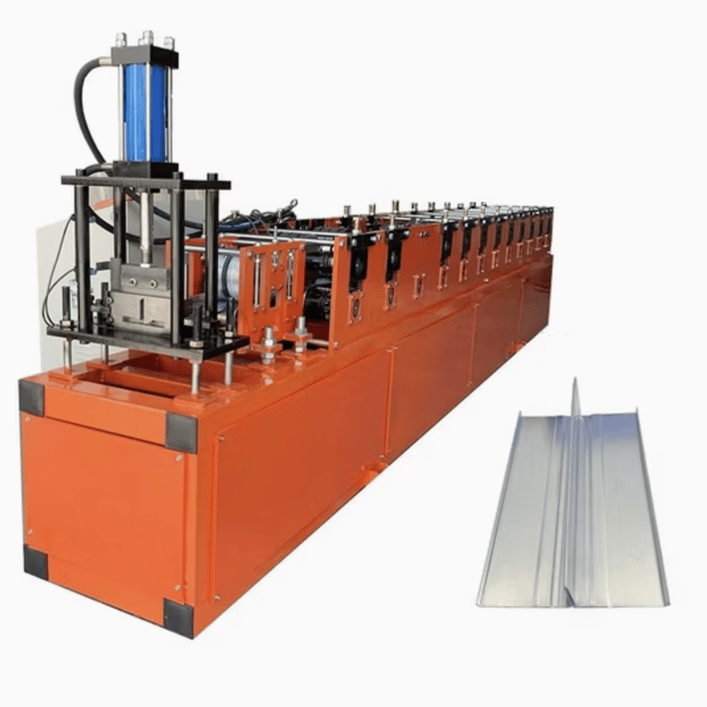

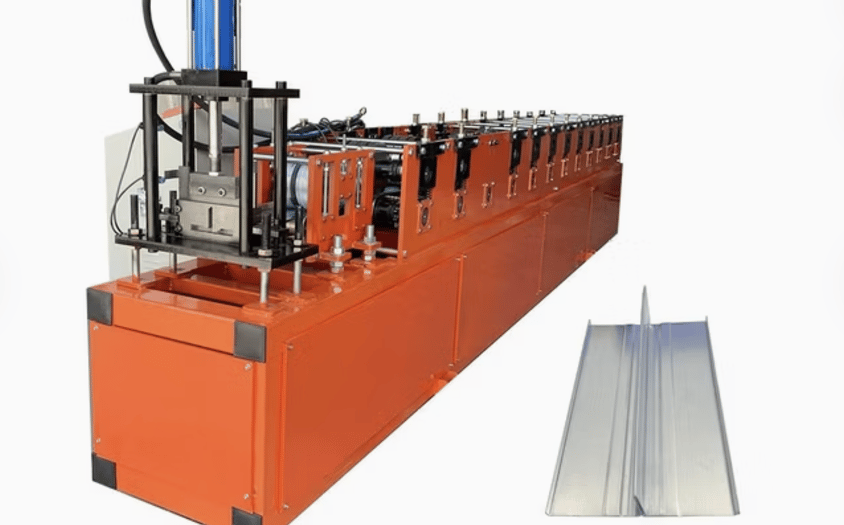

Ceiling T-Bar Roll Forming Machine in the USA

•

Ceiling T-Bar roll forming machines are specialized equipment used in the production of T-bar profiles, an essential component in suspended ceilings. These machines are engineered to manufacture T-bars with high precision, speed, and efficiency, ensuring quality products for the construction and interior design industries.

Full Description of Ceiling T-Bar Roll Forming Machine

The Ceiling T-Bar roll forming machine is a robust and versatile piece of equipment designed to produce T-bar profiles commonly used in drop ceilings. These profiles form the structural grid that supports ceiling tiles. The machine is fully automated, capable of handling a variety of materials and producing T-bars in different sizes and gauges.

The machine integrates advanced technology, including a PLC control system for accuracy, servo motors for high-speed operations, and hydraulic cutting mechanisms for precise profile cutting. With optional features like punching units and embossing systems, the machine can meet various customization needs.

Machine Specifications

1. Roller Materials:
   • High-grade steel with hard chrome plating for durability and anti-corrosion.
   • Heat-treated for longer lifespan.
2. Frame Structure:
   • Heavy-duty welded frame.
   • Stress-relieved structure for stability and vibration-free operation.
3. Motors:
   • Main Motor: 5.5 kW to 7.5 kW.
   • Servo Motor: 2.0 kW for feeding and punching precision.
4. PLC System:
   • Brand: Mitsubishi or Siemens.
   • User-friendly interface with a touchscreen display.
5. Machine Speed:
   • Up to 30–40 meters per minute (varies with profile complexity).
6. Punching and Notching:
   • Hydraulic punching system with replaceable dies for precision holes.
   • Automatic notching for seamless connections.
7. Cutting System:
   • Hydraulic cutting with servo control for length accuracy.
   • Cutting tolerance: ±0.5 mm.
8. Profile Dimensions:
   • T-Bar Width: 24 mm, 15 mm (standard).
   • Profile Length: Customizable.
   • Material Thickness: 0.3 mm to 0.6 mm.
9. Material Compatibility:
   • Galvanized steel, aluminum, and stainless steel.
   • Coil width: 100 mm to 200 mm.
10. Safety Features:
    • Safety guards and emergency stop buttons.
    • Overload protection systems.
11. Optional Extras:
    • Uncoilers (manual or automatic).
    • Stacker system for finished profiles.
    • Embossing units for textured profiles.
    • Remote monitoring via PLC system.

Key Benefits

• High Precision: Ensures uniform profiles that meet industry standards.
• Customization: Supports a variety of designs and dimensions for different ceiling applications.
• Cost Efficiency: Reduces waste material and minimizes production costs.
• Speed: High throughput ensures faster production cycles.
• Durability: Built for long-term use with minimal maintenance.

Setup and Installation

1. Site Preparation:
   • Ensure a flat and vibration-free foundation.
   • Proper power supply and compressed air setup.
2. Installation:
   • Assemble components as per the manual.
   • Connect the hydraulic system and PLC system.
   • Calibrate the rollers for the desired profile.
3. Trial Run:
   • Load material coil and perform a trial run.
   • Adjust settings for optimal performance.

Maintenance Requirements

• Regular lubrication of moving parts.
• Periodic inspection of rollers for wear and tear.
• Cleaning of punching dies and hydraulic systems.
• Software updates for PLC as needed.

Question and Answer Section

Q1: What materials can the Ceiling T-Bar roll forming machine process?
A1: The machine is compatible with galvanized steel, aluminum, and stainless steel, depending on your project requirements.

Q2: Can the machine produce custom T-Bar sizes?
A2: Yes, the machine supports customization for width, height, and gauge thickness.

Q3: Is the machine suitable for mass production?
A3: Absolutely! With a production speed of up to 40 meters per minute, it is ideal for high-volume manufacturing.

Q4: What is the power requirement for this machine in the USA?
A4: Typically, the machine requires a 220V/60Hz or 440V/60Hz power supply, which is standard in the USA.

Q5: How much space is needed to set up the machine?
A5: The machine requires a minimum floor area of approximately 8m x 2m, with additional space for material handling.

Q6: Are there warranties available?
A6: Most manufacturers offer a 1-2 year warranty covering critical components like the PLC system and hydraulic parts.

Q7: What is the average cost of a Ceiling T-Bar roll forming machine in the USA?
A7: The cost ranges from $50,000 to $80,000, depending on features and optional extras.

Q8: Can I integrate this machine into an existing production line?
A8: Yes, the machine can be easily integrated with other equipment like uncoilers and stackers for a seamless production process.
