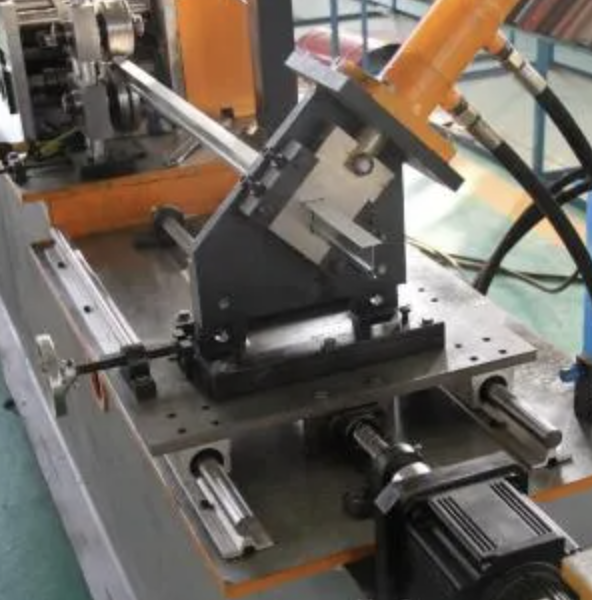

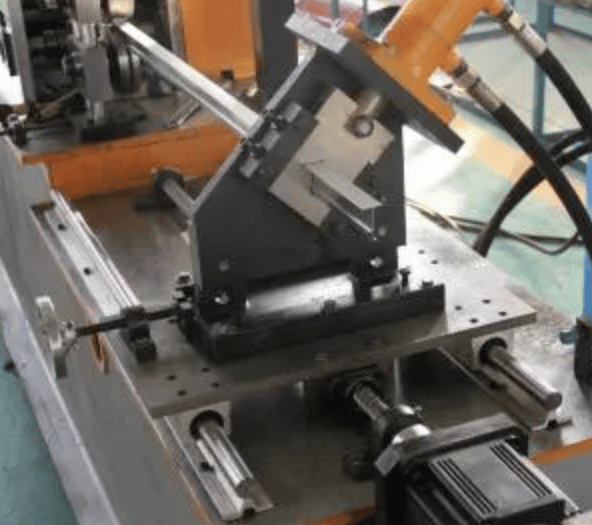

Ceiling T Grid Roll Forming Machine in Brazil
- Condition
- New
- Supplier
- Roll Forming Machines Brazil
- Country
- Brazil
- Listing ID
- 9425
Request a Quote
To express an interest in this machine please submit the form below.

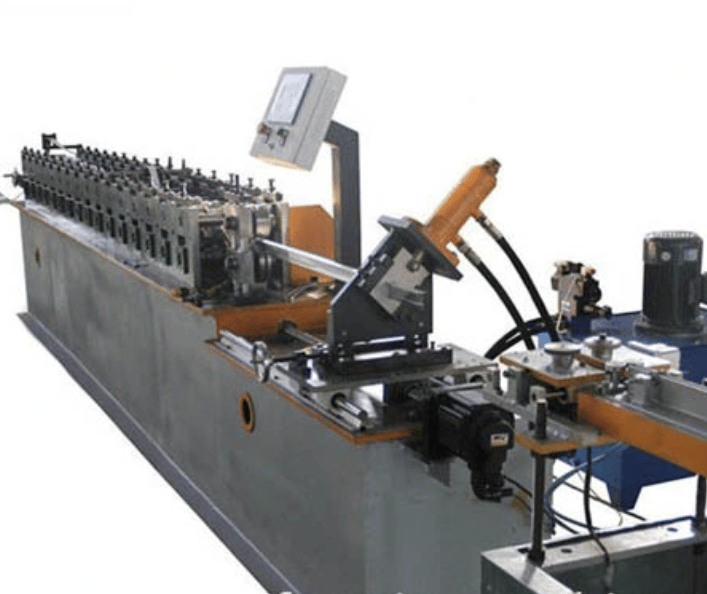

Ceiling Main T grid roll forming machine
We provide you the fully automatic machine with in-line punching of T-bars in the various custom models and sizes. The ceiling T-Bar, T runner roll forming machines are consisted of a Main T-Bar Machine, a Cross T-Bar Machine and an Angle Roll forming machine, for manufacture main T-Bar, Cross-T-Bar, wall angle, ceiling panel.
Decoiler
- Coil inner diameter:400-470mm
- Coil outer diameter:2000mm
- Coil max width:600mm
- Max carrying capacity:1500kg
| 1.Shaft material : | 45#steel |
| 2.roll stations: | 12 main forming steps |
| 3. Rollers material: | bearing steel(GCR15) |
| 4. forming speed: | 12m/min(incluing punching) 25m/min(without punching) |
| 5.Driving of machine | gear wheel |
| 6.Main power of motor: | 7.5kw |
| 7.Measurement of machine: | 5.5*1.3*1.4m |
| 8.Voltage: | 380v/50hw,3phases or as your request. |
