CH-300SA Automatic Metal Cutting Band Saw (300mm, Mitre to 60°) | DDM Machinery, Shanghai, China

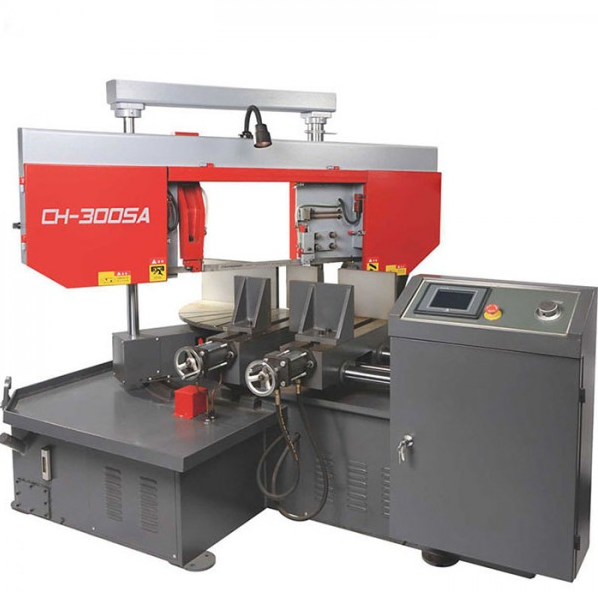

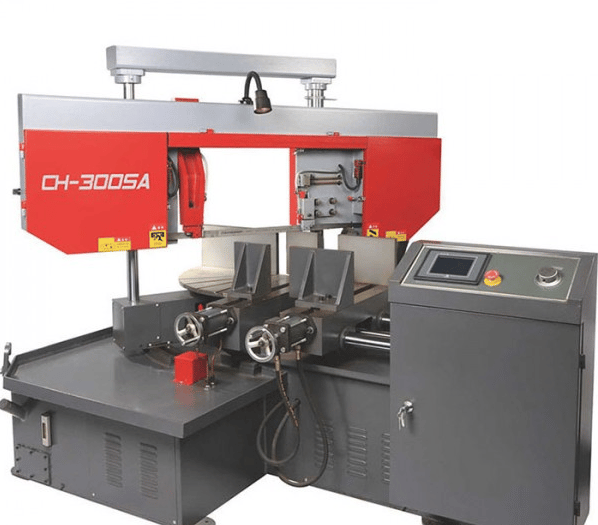

The CH-300SA is an automatic metal cutting band saw for cutting bar, tube, and section. It cuts at 90° and can swivel automatically to make mitre cuts at 45° and 60°. Cutting capacity at 90° is 300mm for round material and 360mm wide by 300mm high for rectangular material.

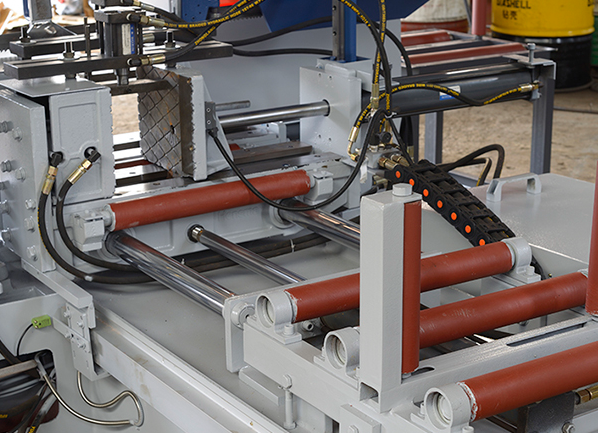

The saw frame is fed hydraulically along a chrome-plated column guide, and is slightly inclined, which DDM says improves cutting performance and extends service life. Workpieces are held by dual hydraulic clamping in an automatic-feed hydraulic vise. Blade speed is infinitely variable from 20 to 80m/min using an inverter, and the machine has NC control.

It comes fitted with an automatic chip conveyor, blade cleaning brush, working light, a saw frame height selector gauge, and one bi-metal saw blade, along with a set of tools in a tool box.

Why Choose an Automatic Mitring Band Saw?

Fabrication shops cut a lot of bar and profile to length and to angle. An automatic saw with hydraulic feed and clamping does this without the operator standing over the machine, and mitre capability avoids a second machine for angled cuts.

• Mitre cutting. 45° and 60° cuts as well as 90°.
• Automatic operation. Hydraulic feed, clamping, swivelling, and chip removal.
• Adjustable speed. Infinitely variable blade speed from 20 to 80m/min to suit the material.
• Solid frame guidance. Hydraulic feed along chrome-plated column guides.
• Ready to run. Chip conveyor, blade brush, light, and a blade come as standard.

Machine Specifications

Cutting capacity

• 90°: 300mm (round); 360mm wide × 300mm high (rectangular)
• 45°: 220mm (round); 220mm wide × 260mm high (rectangular)
• 60°: 100mm (round); 100mm wide × 230mm high (rectangular)

Machine

• Blade speed: 20 to 80m/min (with inverter)
• Blade size: 34 × 1.1 × 4,420mm
• Main motor: 3kW
• Hydraulic motor: 0.75kW
• Coolant pump: 0.06kW
• Workpiece clamping: hydraulic vise
• Blade tension: manual
• Main drive: worm wheel drive
• Table height: 735mm

Standard equipment: blade cleaning brush, working light, saw frame height selector gauge, automatic-feed hydraulic vice assembly, one bi-metal saw blade, tool set with tool box, inverter, NC control, automatic hydraulic swivelling, automatic chip conveyor

Optional equipment: bundle cutting device (2 pieces), free drive roller rack (2m long)

Condition Available: New

Key Features

• Hydraulic saw frame feed via chrome-plated column guide
• Slightly inclined saw frame for better cutting and longer service life
• Dual hydraulic workpiece clamping
• Infinitely variable cutting speed
• NC control with automatic hydraulic swivelling
• Automatic chip conveyor

Applications

• Cutting bar, tube, and profile to length
• Mitre cutting of section at 45° and 60°
• Metal fabrication and steel stockholding

Who This Machine Is For

• Metal fabrication shops
• Steel stockholders and service centres
• Workshops needing one saw for straight and mitre cuts

Frequently Asked Questions

What is the maximum cutting size?
At 90°, 300mm for round material and 360 × 300mm for rectangular material.

Can it cut angles?
Yes. It cuts mitres at 45° (up to 220mm round) and 60° (up to 100mm round), and swivels automatically.

How fast does the blade run?
Blade speed is infinitely variable from 20 to 80m/min using an inverter.

What comes with the machine?
A bi-metal saw blade, blade cleaning brush, working light, saw frame height gauge, tool set, chip conveyor, and inverter.

What options are available?
A bundle cutting device (two pieces) and a 2m long free drive roller rack.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This model is available new.
