CNC Plasma Cutting Machine PSG Series — New | Jinfeng, Ningbo, China

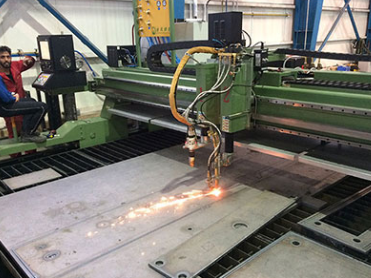

The CNC Plasma Cutting Machine (PSG Series) is a gantry/portal-style plasma cutting system integrated with a cutting table, designed for high-precision plasma cutting of steel plate. A single torch carriage mounts on the gantry's girder beam, delivering consistent, accurate cuts across the full working area, with oxy-fuel cutting available as an option for thicker material applications.

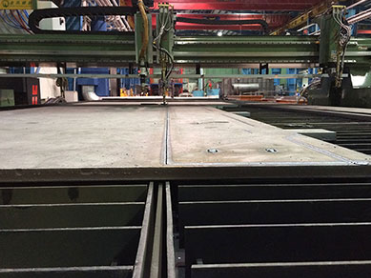

Built with a dual-drive system using precise linear rails and racks installed on both longitudinal sides of the cutting table, the PSG Series ensures high-quality, consistent cutting performance across its full working length. The cutting table integrates directly with the machine gantry as one complete system, divided into multiple ventilation sections with control damper valves — with the option to connect a fan or filter unit for fume extraction.

Designed for simple, easy installation, the PSG Series supports all major CAD-CAM software interfaces, making it a practical choice for steel fabricators looking to increase plate-cutting productivity across a range of industries.

Why Choose a Gantry CNC Plasma Cutting Machine?

Gantry-style plasma cutting machines are the standard choice for cutting flat steel plate at scale, offering a stable, rigid cutting platform that maintains accuracy across large working areas. Unlike handheld or smaller cutting tools, a gantry system like the PSG Series delivers consistent cut quality regardless of plate size, while integrated CAD-CAM support allows cutting programs to be generated directly from design files rather than manually programmed.

The optional oxy-fuel cutting capability extends the machine's usefulness beyond standard plasma cutting, allowing fabricators to cut thicker steel plate where oxy-fuel cutting is more cost-effective than plasma — giving buyers flexibility to handle a wider range of material thicknesses with one machine.

Machine Specifications

PSG3015

• Working width: 1500mm
• Rail span: 2000mm
• Working length: 3000mm
• Torch carriages: 1

PSG4020

• Working width: 2000mm
• Rail span: 2500mm
• Working length: 4000mm
• Torch carriages: 1

PSG6020

• Working width: 2000mm
• Rail span: 2500mm
• Working length: 6000mm
• Torch carriages: 1

Condition Available: New
Warranty: 2 years

Capabilities

• Dry plasma cutting
• Plasma marking
• Oxy-fuel cutting (optional)
• CAD-CAM software support
• Compatible with nesting software creating DIN-standard cutting programs
• Unloading travel speed up to 18m/min

Key Features

• Dual-drive system with precise linear rails and racks on both longitudinal sides for consistent cutting accuracy
• Integrated gantry and cutting table as one complete system
• Multiple ventilation sections with control damper valves
• Optional fan or filter unit connection for fume extraction
• Simple, easy installation

Applications

• Steel plate cutting for structural fabrication
• General steel fabrication and manufacturing
• Industries requiring high-volume, precision plate cutting

Who This Machine Is For

• Steel fabricators and structural steel manufacturers
• Sheet and plate processing companies
• Manufacturers requiring both plasma and oxy-fuel cutting flexibility

Frequently Asked Questions

What sizes are available in the PSG Series?
Three models are available: PSG3015 (1500mm working width, 3000mm working length), PSG4020 (2000mm width, 4000mm length), and PSG6020 (2000mm width, 6000mm length) — each with a single torch carriage.

Can this machine cut thick steel plate?
Yes. In addition to standard plasma cutting, the PSG Series offers optional oxy-fuel cutting, which is better suited to cutting thicker steel plate than plasma alone.

Does this machine support CAD-CAM software?
Yes. The PSG Series supports all major CAD-CAM interfaces, plus nesting software capable of creating DIN-standard cutting programs.

Is fume extraction included?
The cutting table is divided into ventilation sections with control damper valves, and buyers can optionally connect a fan or filter unit for fume extraction.

How fast does this machine operate?
Unloading travel speed is up to 18 meters per minute.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This model is available new, backed by a 2-year warranty, giving full manufacturer support from day one.
