CS-220 Metal Cutting Band Saw

DDM Machinery: Shanghai, China

Compact scissors-type band saw for cutting bar, tube, and section up to 220mm round or 400 × 100mm rectangular, with four blade speeds, a worm gear drive, and a 1.5kW blade motor.

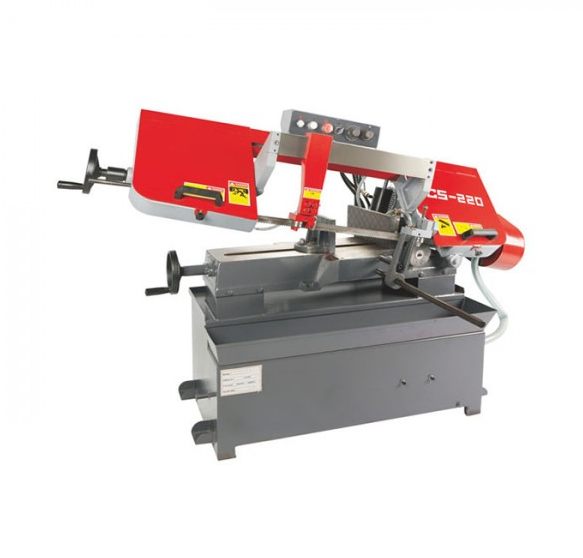

The CS-220 is a compact metal cutting band saw for workshops and stockholders. At 90° it cuts up to 220mm round material and 400mm wide by 100mm high in rectangular section. At 45° it cuts up to 130mm.

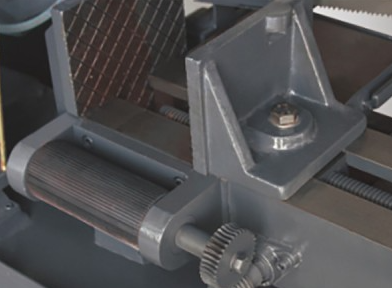

The main drive combines a worm gear reducer, pulleys, and drive wheels, with the reducer coupled directly to the drive wheel. DDM says this gives stable transmission with no impact. The blade speed is changed by moving the belt on the pulleys, giving four speeds (21, 34, 43, and 60m/min) so the machine can cut different materials. Workpieces are clamped with a hydraulic vise using a single jaw and a screw cylinder structure.

The blade is 27 × 0.9 × 3,045mm, guided by carbide and bearing blade guides, and is cleaned with a wire brush and flood coolant. The blade motor is 1.5kW, the machine weighs 330kg, and it measures 1,600 × 610 × 1,130mm.

Why Choose a Compact Band Saw?

Not every shop needs a fully automatic saw. A compact machine with a simple, robust drive is quick to set up, easy to maintain, and takes little floor space.

• Small footprint. 1,600 × 610mm on the floor, and only 330kg.
• Four blade speeds. Adjusted by belt position, to suit different materials.
• Stable drive. Worm gear reducer coupled directly to the drive wheel.
• Good guiding. Carbide and bearing blade guides.
• Low power draw. A 1.5kW blade motor.

Machine Specifications

• Model: CS-220
• Maximum cutting capacity (90°): 220mm round; 400mm wide × 100mm high rectangular
• Cutting capacity at 45°: 130mm
• Saw blade speed: 21 / 34 / 43 / 60 m/min
• Blade size: 27 × 0.9 × 3,045mm
• Blade guides: carbide and bearing guides
• Cleaning: wire brush and flood coolant
• Blade tension: manual
• Blade motor: 1.5kW
• Coolant pump: 0.06kW
• Work feeding: manual
• Work vise: hydraulic-clamp single jaw (see notes)
• Machine weight: 330kg
• Machine size (L × W × H): 1,600 × 610 × 1,130mm

Standard equipment: blade cleaning brush, length stopper, one bi-metal saw blade, tool set with tool box

Condition Available: New

Key Features

• Worm gear reducer directly coupled to the drive wheel
• Four blade speeds via belt change
• Hydraulic vise with a single jaw and screw cylinder structure
• Carbide and bearing blade guides
• Compact and lightweight at 330kg
• Length stopper for repeat cuts

Applications

• Cutting bar, tube, and profile to length
• Angled cuts up to 45°
• Small fabrication shops and maintenance workshops

Who This Machine Is For

• Small and medium fabrication workshops
• Maintenance and repair shops
• Buyers who want a simple, economical saw

Frequently Asked Questions

What is the maximum cutting size?
At 90°, 220mm round or 400 × 100mm rectangular. At 45°, 130mm.

What blade speeds does it have?
Four speeds: 21, 34, 43, and 60m/min, changed by moving the belt.

How heavy is it?
330kg, with dimensions of 1,600 × 610 × 1,130mm.

What blade does it use?
A 27 × 0.9 × 3,045mm bi-metal blade, with one supplied.

Does it have a length stop?
Yes, a length stopper is standard.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This model is available new.
