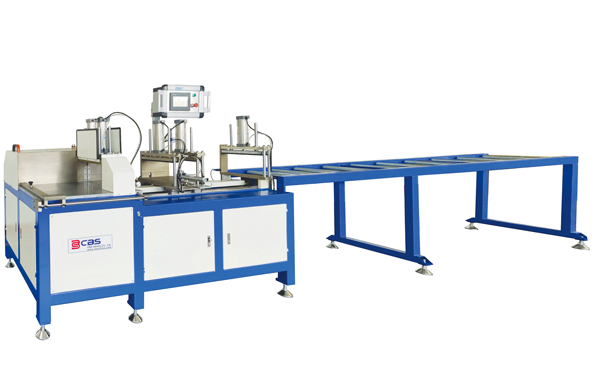

CSAF-500C CNC Automatic Stiffener Cutting Machine for Aluminium Profiles | CBS Industry, Jinan, China

The CSAF-500C is a fully automatic CNC cutting machine for the continuous cutting of aluminium profiles. It is built for high-volume work, especially the bulk cutting of aluminium formwork stiffeners into many short pieces.

The operator enters the cutting sizes and quantities on the touch screen. The machine then feeds the profile, cuts it, and counts the finished parts automatically. A PLC controller and auto-feeding system keep the process running efficiently for large production volumes, and an imported carbide saw blade gives accurate, efficient cuts. A high-power cutting motor handles heavy profiles.

Beyond formwork, CBS positions the machine for heavy-duty industrial aluminium profiles in general, including heat sink profiles, motor body profiles, and curtain wall sections.

Why Choose an Automatic Feeding Cutting Machine?

Stiffeners and similar formwork parts are cut in large quantities to fixed lengths. Feeding and measuring these by hand ties up an operator and adds variation. This machine takes both out of the process.

• Set the job once. Enter sizes and quantities on the touch screen and the machine runs through the batch, feeding, cutting, and counting on its own.
• Built for volume. The PLC controller and auto-feeding system are designed for large-volume production.
• Handles heavy profiles. The high-power cutting motor cuts heavy sections easily.
• Versatile beyond formwork. The same machine cuts heat sink, motor body, and curtain wall profiles, which helps if your workshop serves more than one market.

This machine is designed for short-part bulk cutting (20 to 1000mm auto-feed length). For cutting long formwork profiles to length from a cutting list, see the CCSN-500/550 listing.

Machine Specifications

• Cutting angle: 90°
• Saw blade: Φ500 × Φ30 × 4.4 (imported carbide blade)
• Cutting motor power: 4.0kW
• Motor rotary speed: 2800 r/min
• Auto-feeding length: 20mm to 1000mm
• Saw blade feeding speed: 0 to 3m/min
• Maximum cutting section (width × height): 240 × 150mm, or 400 × 80mm
• Power supply: 415/380V, 50Hz
• Operation air pressure: 0.6 to 0.8MPa
• Control: PLC with touch screen

Condition Available: New

Key Features

• Fully automatic feeding, cutting, and counting
• Touch-screen input for cutting sizes and quantities
• PLC controller with high-efficiency auto-feeding system for large-volume production
• Imported carbide saw blade for accuracy and efficiency
• High-power motor for cutting heavy profiles
• Auto-feeding length from 20mm to 1000mm

Applications

• Bulk cutting of aluminium formwork stiffeners
• Cutting aluminium formwork profiles
• Heat sink profiles
• Motor body profiles
• Curtain wall sections
• Other heavy-duty industrial aluminium profiles

Who This Machine Is For

• Aluminium formwork manufacturers producing stiffeners in volume
• Aluminium extrusion processors cutting heavy industrial profiles
• Curtain wall and heat sink fabricators
• Workshops that want to cut repeat batches with minimal operator involvement

Frequently Asked Questions

How does the automatic cutting work?
You enter the cutting sizes and quantities on the touch screen. The machine then automatically feeds the profile, cuts it, and counts the parts.

What lengths can it cut?
The auto-feeding length is 20mm to 1000mm, which makes it well suited to bulk cutting of shorter parts such as stiffeners.

What profile sizes can it cut?
The maximum cutting section is 240 × 150mm or 400 × 80mm (width × height).

Can it cut angles?
No. It is a 90 degree cutting machine. CBS makes separate degree-cutting and variable-angle machines.

What else can it cut besides formwork?
CBS lists heat sink profiles, motor body profiles, and curtain wall sections, as well as other heavy-duty industrial aluminium profiles.

What power and air supply does it need?
415/380V, 50Hz power with a 4.0kW cutting motor, plus compressed air at 0.6 to 0.8MPa.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This model is available new, from a manufacturer that supplies complete formwork machine ranges and turn-key lines.
