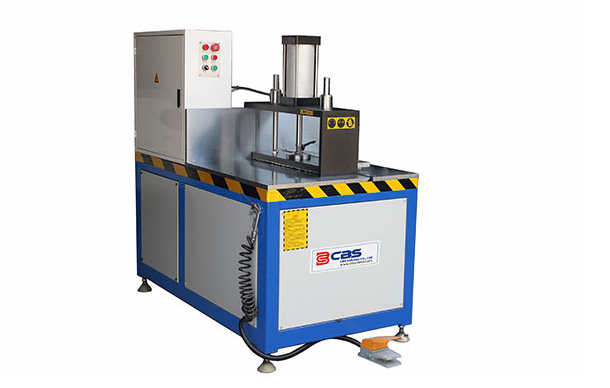

CSE-350 Chamfer Cutting Saw for Aluminium Formwork | CBS Industry, Jinan, China

The CSE-350 is a chamfer cutting saw designed for 45 degree chamfering of aluminium profile ends. It is built for the smaller components in an aluminium formwork system: end plates, reinforcement profiles, and secondary rib profiles.

A heavy-duty spindle motor gives high speed and high accuracy, and multiple profiles can be processed at the same time. The compact structure and small footprint make it easy to place alongside the main cutting saws in a formwork workshop, and CBS describes the machine as highly durable.

It sits in CBS's aluminium formwork cutting range, where the main cutting machines handle length-cutting and this saw handles the angled end preparation on smaller profiles.

Why Choose a Dedicated Chamfer Saw?

Formwork stiffeners, end plates, and ribs need clean 45° ends so they fit and weld or assemble correctly into finished panels. Doing this on a general-purpose saw means changing set-ups and slows down repetitive work.

A dedicated chamfer saw handles one job repeatedly:

• Fixed 45° cut. The machine is built for 45 degree chamfering, so there is no angle re-setting between parts.
• Batch processing. Multiple profiles can be chamfered at the same time.
• Heavy-duty spindle. The spindle motor is designed for high speed and accuracy.
• Small footprint. The compact structure suits workshops where floor space is shared with cutting saws, milling machines, and welding equipment.

Machine Specifications

• Cutting angle: 45°
• Saw blade diameter: 350mm
• Saw blade speed: 2800 r/min
• Input voltage: 3-phase, 380V, 50Hz
• Input power: 2.2kW
• Working air pressure: 0.5 to 0.8MPa
• Air consumption: 100L/min

Condition Available: New

Key Features

• 45° chamfering of aluminium profile ends
• Heavy-duty spindle motor for high speed and accuracy
• Multiple profiles processed at the same time
• Compact structure with small footprint
• High machining accuracy and durability
• Low power draw at 2.2kW

Applications

• 45° chamfering of aluminium formwork end plates
• 45° chamfering of reinforcement profile ends
• 45° chamfering of secondary rib profile ends
• Stiffener chamfering (demonstrated by CBS)

Who This Machine Is For

• Aluminium formwork manufacturers
• Formwork system producers who need consistent 45° ends on stiffeners and ribs
• Aluminium profile fabricators adding a dedicated chamfering station

Frequently Asked Questions

What does this machine do?
It chamfers the ends of aluminium profiles at 45 degrees. CBS designed it for formwork end plates, reinforcement profiles, and secondary rib profiles.

Can it cut other angles?
No. It is a 45 degree machine. CBS makes separate variable-angle and 90° cutting machines for other angles.

Can it process more than one profile at a time?
Yes. Multiple profiles can be processed at the same time.

What power and air supply does it need?
3-phase 380V, 50Hz power at 2.2kW, plus compressed air at 0.5 to 0.8MPa with 100L/min consumption.

How does it fit with CBS's other formwork machines?
It is part of CBS's aluminium formwork cutting range. The larger CNC cutting machines handle length-cutting of the main profiles, and this saw handles the 45° ends on smaller components.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This model is available new, from a manufacturer that supplies complete formwork machine ranges and turn-key lines.
