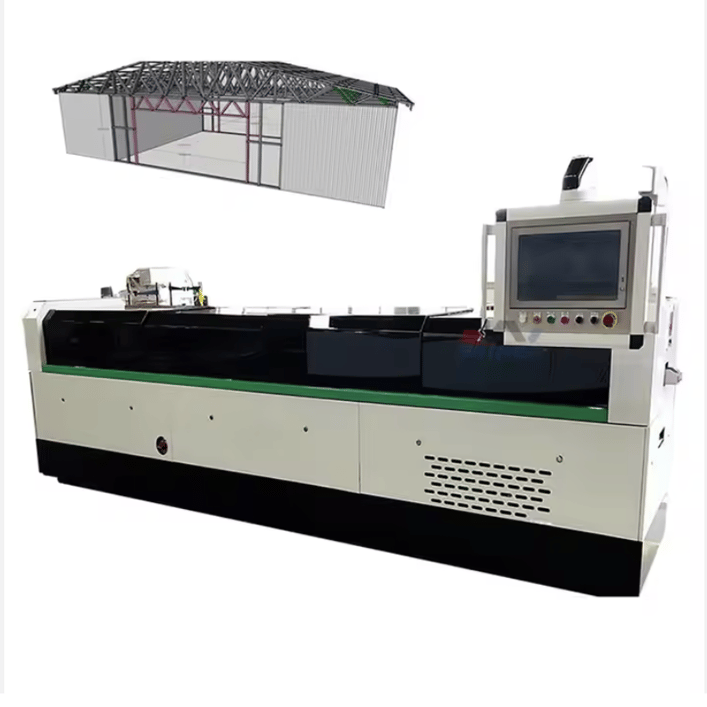

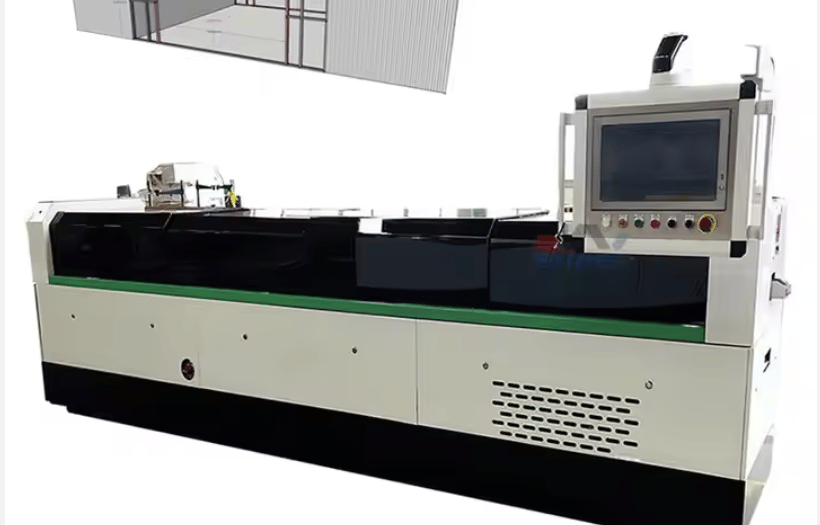

CU Purlin Light Gauge Steel Building Roll Forming Machine in China
- Condition
- New
- Supplier
- Nantong Super Machinery Co., Ltd
- Country
- China
- Listing ID
- 6121
Request a Quote
To express an interest in this machine please submit the form below.
View more information and all machines from this supplier here
|
Core Components |
PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump |
|
Production Capacity |
30M/MIN |
|
Place of Origin |
Jiangsu, China |
|
Weight |
4000 kg |
|
Warranty |
1 Year |
|
Key Selling Points |
High-accuracy |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Brand Name |
SUPER |
|
Dimension(L*W*H) |
5000mm*900mm*1300mm |
|
Control System |
PLC(imported Brand) |
|
Shaft material |
40Cr |
|
Material Thickness |
0.6-1.2mm |
|
Hydraulic Power |
7.5kw |
|
Cutting Blade |
Cr12MoV |
|
Roller material |
GCr15 |
|
Forming Speed |
30m/min |
|
Roller Station |
9 Stations |
