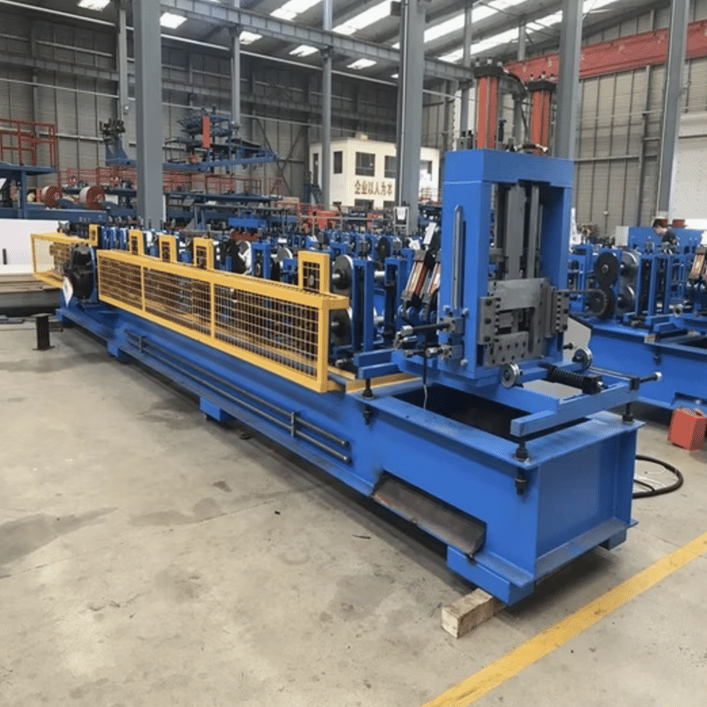

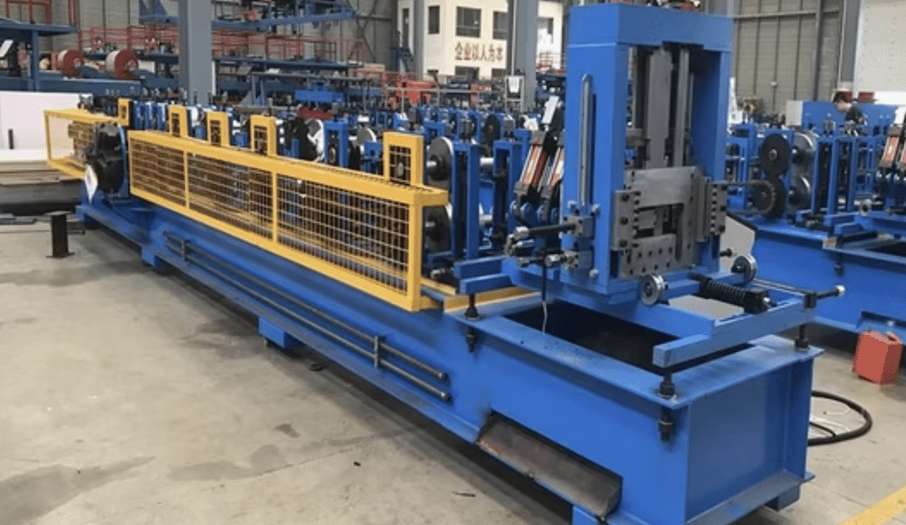

CZ Purlin Roll Forming Machine Argentina
- Condition
- New
- Supplier
- Roll Forming Machines Argentina
- Country
- Argentina
- Listing ID
- 5206
Request a Quote
To express an interest in this machine please submit the form below.
CZ Purlin Roll Forming Machines are specialized equipment designed to produce C and Z-shaped purlins used in the construction of steel structures, warehouses, industrial buildings, and roofing systems. In Argentina, the demand for high-quality roll-forming machines is growing due to the robust construction industry and the increasing need for durable steel components.
Full Description of CZ Purlin Roll Forming Machines
A CZ Purlin Roll Forming Machine is a fully automated system that efficiently produces C and Z purlins by adjusting the rollers and cutting dies. These machines are equipped with advanced technology to switch between C and Z profiles without manual intervention, making them highly versatile and time-saving.
Key Features:
- Automatic Profile Switching: Effortlessly switch between C and Z profiles via PLC control.
- High Precision Rollers: Made from high-grade steel for accurate and consistent profiling.
- Customizable Profiles: Adaptable to different sizes and thicknesses of purlins.
- User-Friendly Interface: Intuitive PLC systems with touchscreen controls.
- Durable Structure: Heavy-duty frame construction for long-lasting performance.
- High Speed and Efficiency: Capable of producing multiple profiles in a short time.
Applications:
- Steel structure buildings
- Warehouses and storage units
- Roofing systems
- Industrial and commercial buildings
Specifications of CZ Purlin Roll Forming Machines
| Specification | Details |
|---|---|
| Roller Material | High-grade steel with chrome plating for durability and precision |
| Profile Thickness | 1.5 mm to 3.0 mm |
| Profile Width | 80 mm to 300 mm |
| Profile Height | 30 mm to 80 mm |
| Machine Speed | 10-15 meters per minute |
| Cutting System | Hydraulic cutting system with high precision |
| Control System | PLC control with touchscreen operation |
| Motor Power | 15 kW to 20 kW |
| Hydraulic Power | 5.5 kW |
| Switching Mechanism | Automatic C and Z profile switching |
| Frame Structure | Heavy-duty welded steel frame |
| Power Supply | 380V/50Hz (customizable for Argentina’s grid standards) |
| Optional Extras | Pre-punching system, remote control operation, stackers, and leveling units |
Considerations for Buying in Argentina
- Local Power Supply Compatibility: Ensure the machine is compatible with Argentina's standard power supply.
- Shipping and Import Costs: Factor in tariffs and logistics when budgeting.
- After-Sales Support: Check for availability of local technical support and spare parts.
- Regulatory Compliance: Ensure the machine complies with Argentinian industry standards.
Question and Answer Section
Q1: What is the primary function of a CZ Purlin Roll Forming Machine?
A: The primary function is to produce C and Z-shaped steel purlins used in constructing steel structures.
Q2: How does the machine switch between C and Z profiles?
A: The machine uses an automatic mechanism controlled by a PLC system to adjust rollers and cutting dies for seamless switching.
Q3: What industries in Argentina commonly use CZ purlins?
A: Industries such as construction, warehousing, and roofing frequently use CZ purlins due to their structural strength and versatility.
Q4: What is the price range for CZ Purlin Roll Forming Machines in Argentina?
A: The price typically ranges from $30,000 to $80,000 depending on specifications and additional features.
Q5: What maintenance is required for the machine?
A: Regular lubrication of rollers, checking hydraulic systems, cleaning cutting dies, and periodic inspection of electrical components.
Q6: Can the machine handle custom profiles?
A: Yes, many machines can be customized to produce specific profile sizes and thicknesses.
Q7: What is the lead time for importing the machine into Argentina?
A: Depending on the supplier and shipping method, it typically takes 6-12 weeks.
