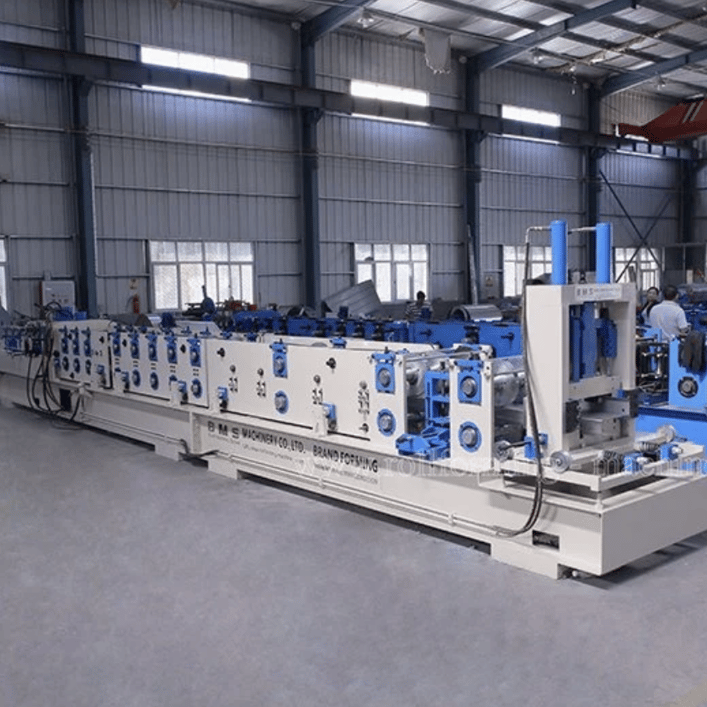

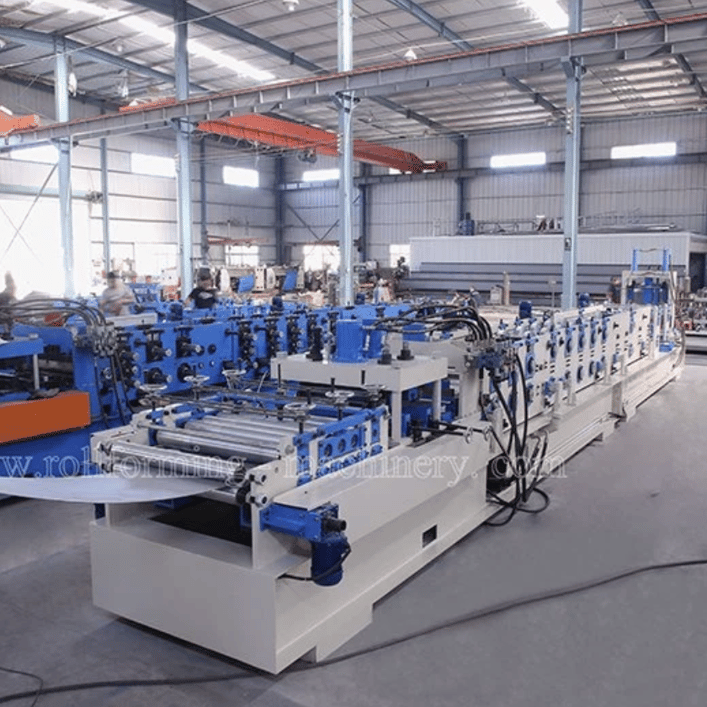

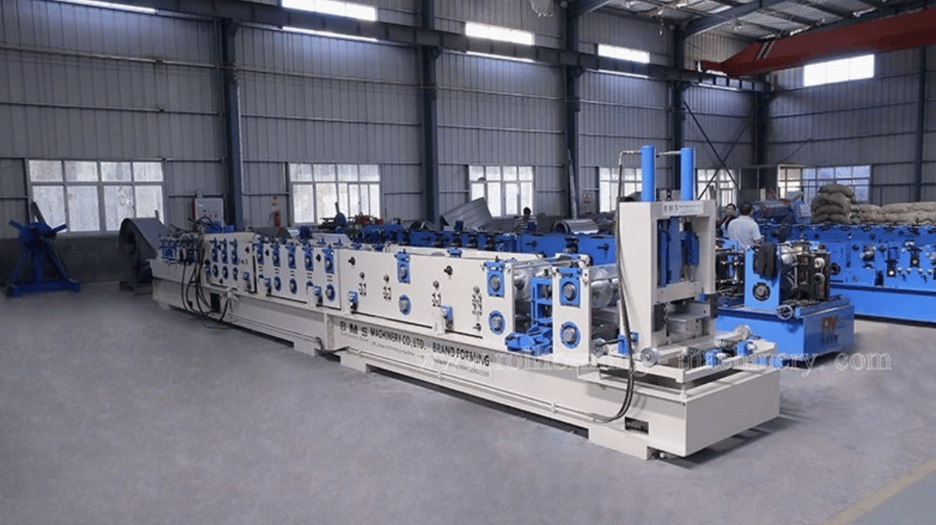

CZ Purlin Roll Forming Machine in Peru

C/Z Automatic Changeable Purlin Roll Forming Machine Speed

With feeding material guide, body frame made from H450 type steel by welding

Side wall thickness: Q235 t30mm ;Tie rod:ф22 Galvanized

Rollers manufactured from Gcr15/Cr12 steel,CNC lathes,Heat Treatment

with thickness 0.04mm,surface with mirror treatment

Shafts Diameter=ф90mm,precision machined

Gear/Sprocket driving,about 21-step to form(19-step to form and 3 step for final shaping).

Main Motor=18.5KW , Frequency speed control

Speed redcucer motor:K series;

Size changing motor:6pcs, Automatically controlled by PLC Programing.

All the screw bolts with grade 8.8

Real forming speed 20m/min (depending on the number of punching holes)

Two pieces type of cutting blade design, no blanking

Hydraulic motor:7.5KW,with Hydrualic Pre-Cutting&Punching Device Share a hydraulic station ;

Cutting tool material: Cr12MoV

The cutting power is provided by the main engine hydraulic station

Plus our PATENTED hydraulic UNIVERSAL post-cutting device(NO NEED TO CHANGE cutting die for different size like traditional purlin machine), which make the cut profile looks better
