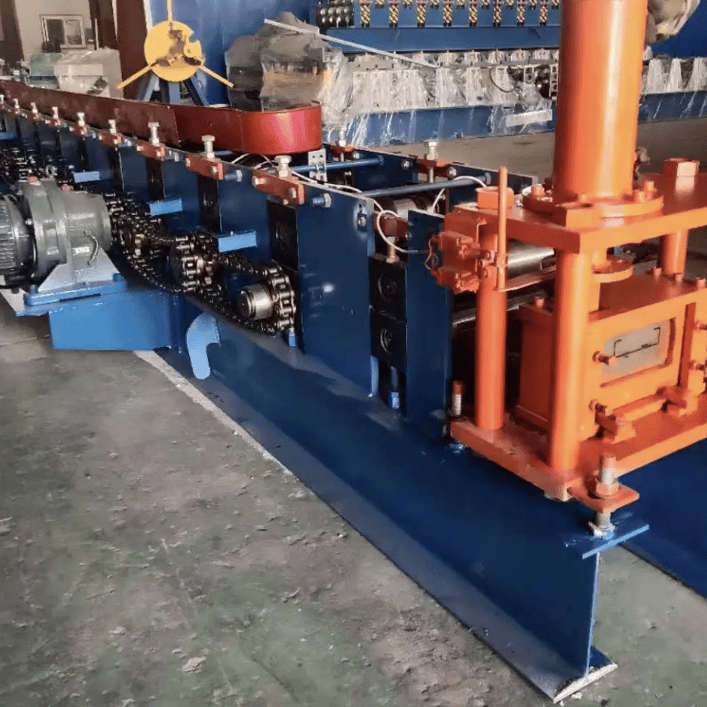

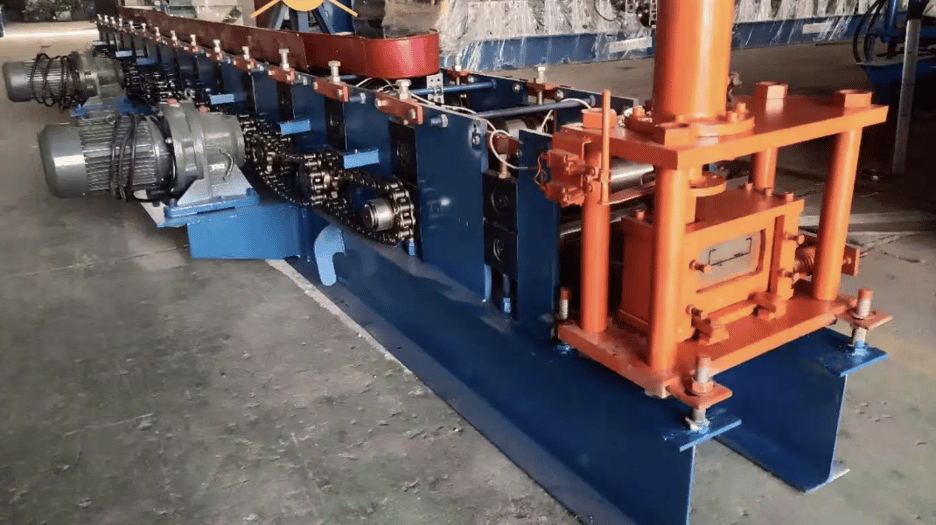

CZ Roll Forming Machine in Sudan

(1) Processing material: aluzinc/galvanized steel/colored steel coil

(2) Material thickness: 0.3-0.8mm

(3) Main motor power: 4 kw

(4) Pump power: 4kw

(5) Shaft diameter: 75mm and solid forming shaft

(6) Forming steps: 15 steps.

(7) Roller material: 45# forged steel, with hard chrome plating

(8) Main frame: 350H steel

(9) Medium plate thickness: 18mm

(10) Control systerm: PLC computer control with inverter

(11) Power supply: 380V, 3 Phase, 60Hz or as your requirement

(12) 0veral sized:about 6800mm*1500mm*1500mm
