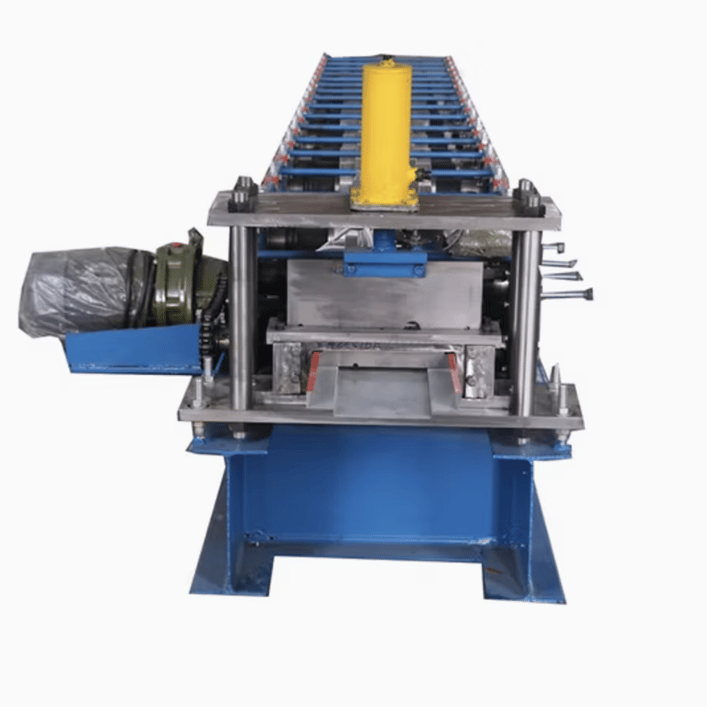

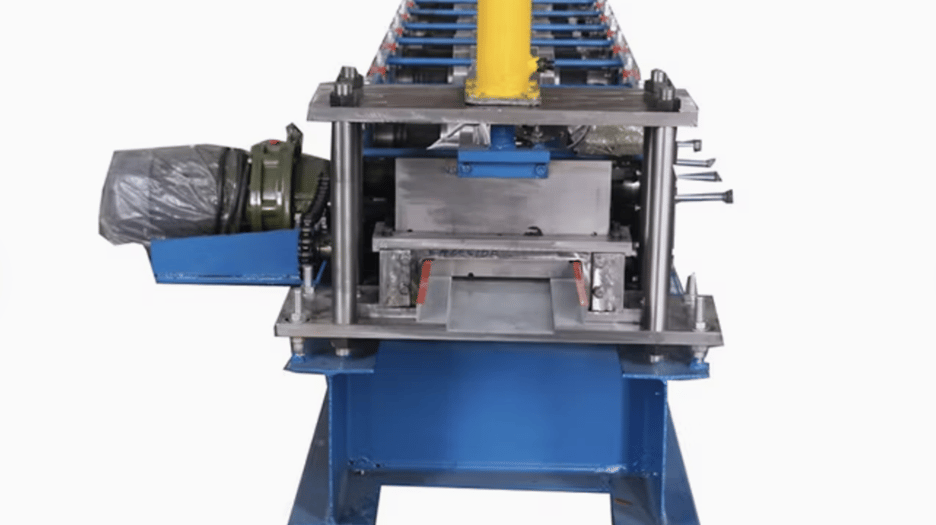

Door Frame Roll Forming Machine Germany

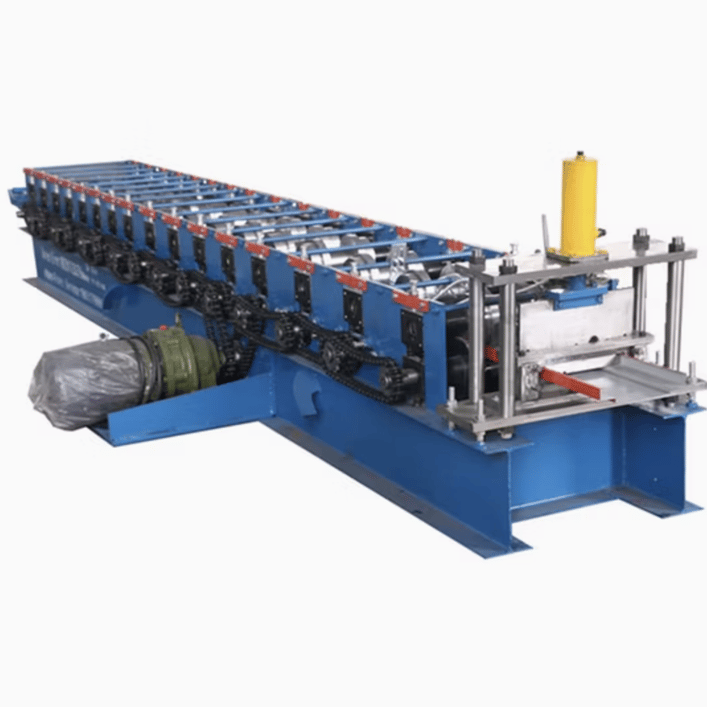

A door frame roll forming machine is a specialized equipment designed to produce metal door frames efficiently and accurately. These machines are essential in manufacturing high-quality door frames used in residential, commercial, and industrial applications. Known for their versatility, precision, and high-speed production, door frame roll forming machines are tailored to meet specific customer needs, including varying profile designs, materials, and production scales.

The machine operates by feeding a steel or aluminum coil into a series of rollers that gradually form the material into the desired door frame profile. With advanced automation systems, including a PLC control system, these machines deliver consistent output while minimizing manual intervention.

Specifications

• Roller Materials: High-grade GCr15 steel with heat treatment and chrome plating for durability and precision.
• Material Thickness: 0.6mm–2.0mm (adjustable based on customer requirements).
• Material Width: Adjustable to accommodate varying door frame widths.
• Material Type: Galvanized steel, stainless steel, aluminum, or pre-painted steel.
• Punching and Notching: Integrated hydraulic or servo-driven systems for precise hole punching and notching as per design.
• Frame Size: Rigid steel structure designed to minimize vibration and ensure accuracy.
• Motors:
  • Main motor: 7.5kW–15kW (customizable).
  • Hydraulic motor: 4.0kW–7.5kW.
• PLC System: Siemens or Mitsubishi PLC with a touchscreen interface for easy operation and customization.
• Cutting System: Hydraulic cutting or flying shear for clean and burr-free cuts.
• Speed: Up to 20m/min (production speed varies with profile complexity).
• Safety Features: Protective enclosures, emergency stop buttons, and overload protection.
• Extras:
  • Uncoiler (manual or automatic): 3–5 tons capacity.
  • Stacker: Automatic stacking system for easy handling of finished products.
  • Coil Car Tippers: To streamline coil loading.

Key Features

1. Precision Manufacturing: Produces door frames with high dimensional accuracy.
2. Versatility: Capable of forming multiple designs with simple tooling changes.
3. Durability: Heavy-duty structure designed for prolonged use.
4. Energy Efficiency: Low power consumption with high output.
5. Automation: Reduced manual labor requirements thanks to PLC-controlled operations.
6. Customization: Machines can be tailored for unique designs and specific market requirements.

Applications

• Residential door frames
• Industrial and commercial door frames
• Fire-rated and security door frames
• Custom architectural designs

Buying Considerations in Germany

1. Power Supply: Ensure the machine supports Germany's standard voltage (230V single-phase or 400V three-phase).
2. Compliance: Check that the machine meets EU safety and environmental regulations.
3. Shipping and Import Duties: Factor in shipping costs, import duties, and VAT when purchasing from overseas manufacturers.
4. Customization: Choose a machine that allows for design flexibility and complies with local architectural standards.
5. Support and Training: Opt for suppliers offering local support, installation services, and operator training.

Question and Answer Section

Q1: What materials can be processed with a door frame roll forming machine?

A1: These machines are designed to process galvanized steel, stainless steel, aluminum, and pre-painted steel. The choice of material depends on the end-use application.

Q2: What is the average production capacity?

A2: A typical machine can produce up to 20 meters of door frame profiles per minute, depending on the complexity of the design and material thickness.

Q3: How can I ensure compliance with German safety standards?

A3: When purchasing, ensure the machine is CE-certified and includes essential safety features such as emergency stops and protective enclosures.

Q4: Are these machines customizable?

A4: Yes, most manufacturers offer customization options, including profile design, material handling systems, and automation levels.

Q5: What is the maintenance requirement for these machines?

A5: Regular maintenance involves cleaning the rollers, checking the lubrication system, inspecting the hydraulic system, and calibrating the PLC control system.

Q6: What should I look for in a supplier?

A6: Choose a supplier with a proven track record, excellent customer reviews, and after-sales support, including spare parts availability and technical assistance.

Q7: Can these machines be upgraded for future needs?

A7: Yes, many manufacturers provide upgrade kits, allowing you to add features like servo-driven punching or automatic stacking systems.
