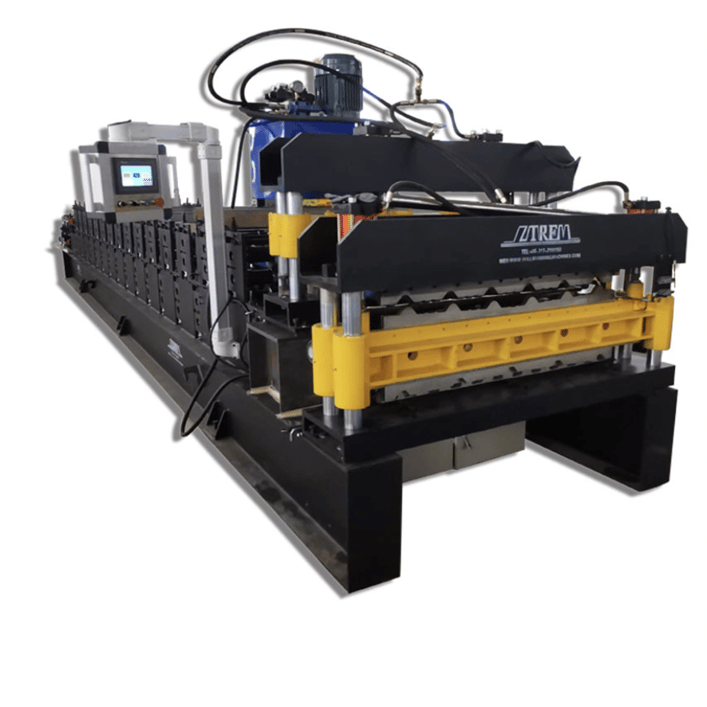

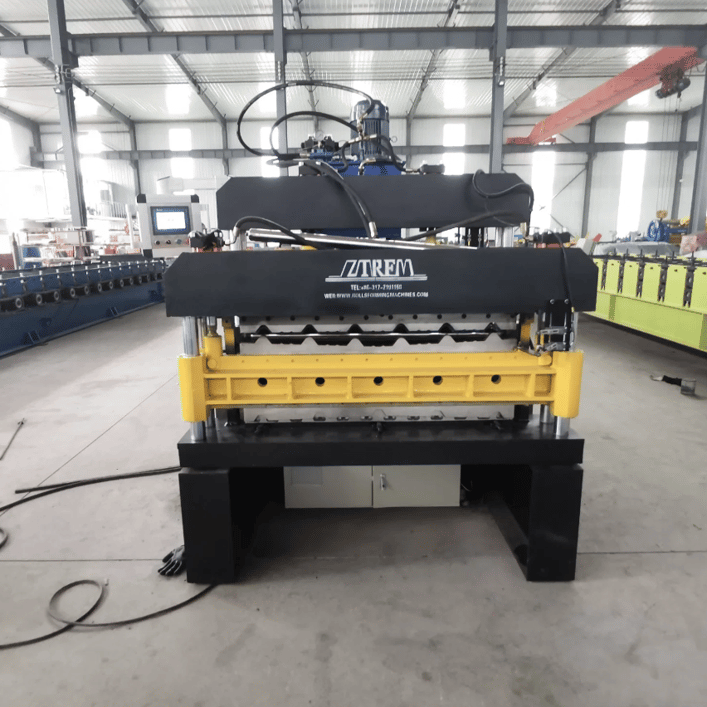

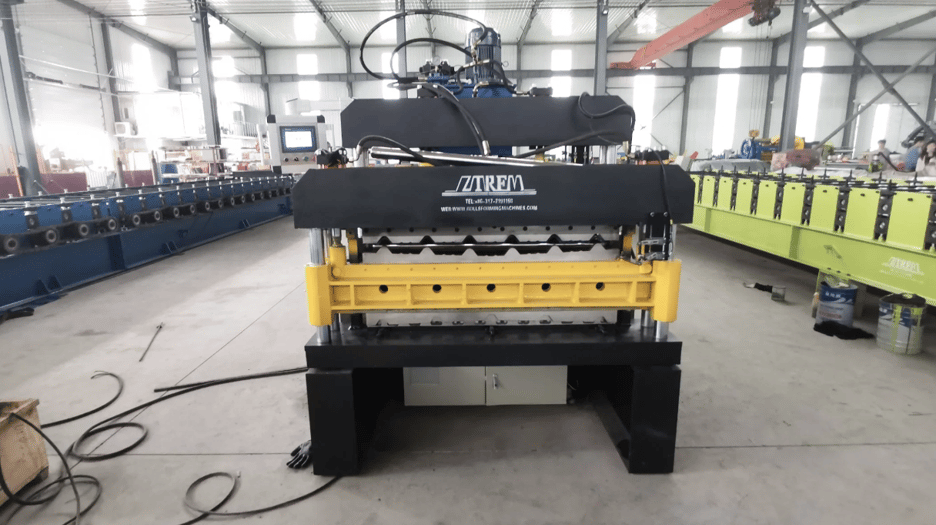

Double Layer Roll Forming Machine in Honduras
The double layer roll forming machine consist of uncoiler and its base,infeed guides,fixed position driven forming machine, shearing device,hydraulic station,PLC control console and so on.
| Suitable material | Color steel sheet ,galvanized steel sheet, aluminium sheet | |
| 2 | Width of material | 1000mm or as need |
| 3 | Thickness of material | 0.3-0.8mm or as your needs |
| 4 | Working speed | 10-20m/min |
| 5 | Electrical control system | PLC control system |
| 6 | Shaft diameter | 80mm/85mm |
| 7 | Dimension | 7500x1500x1910mm |
| 8 | Weight | About 7 T |
| 9 | Voltage | 380V 3phase 50HZ or as the customer's requirements |
| 10 | Material of roller | High grade 45# forged steel plated with hard chrome plating |
| 11 | Material of cutting | Cr12 mould steel with quenched treatment |
| 12 | Working time | Can be 24 hours |
| 13 | Workers | 1-2 only |
