European Gantry Crane — New | DJ Cranes, Zhengzhou, China

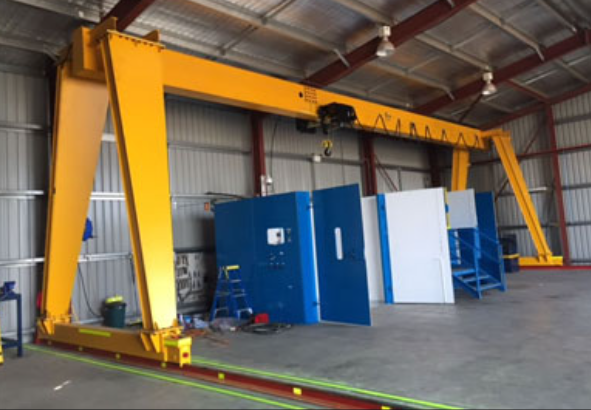

The European Gantry Crane combines the reliability, versatility, and low cost of traditional Chinese gantry crane construction with advanced European crane engineering. Compared to traditional gantry cranes, the design reduces dead load by 20–30% and reduces maximum wheel pressure by 15–20%, thanks to its lighter, more efficient structure — cutting overall construction and infrastructure costs for the buyer.

DJ Cranes offers this design in both European single girder and European double girder configurations, built to order according to the buyer's lifting capacity, span, and application requirements. The lighter structure means buyers can reduce plant building height, use smaller rail beam cross-sections, and specify lower-capacity corbels and pile foundations — lowering the total investment required for both the crane and the building it operates in.

Why Choose a European-Style Gantry Crane?

Traditional gantry cranes are heavier and place more load on the supporting structure, driving up construction costs for the building housing the crane. The European-style design addresses this directly — using a more efficient structural approach across the trolley, end beam, and main beam — resulting in a lighter machine that still delivers full lifting performance.

Beyond the structural savings, European gantry cranes offer standardized, modular design across a full product range, allowing DJ Cranes to configure a crane quickly to match specific lifting weight, working level, speed, and height requirements — while incorporating safety features and, for larger or specialized applications, advanced options like electronic anti-shake, energy feedback, real-time monitoring, and precise positioning.

High-quality key components (reducer, brake, coupling, motor) combined with variable frequency control keep operating noise below 74dB, while also extending component working life through smoother operation — reducing both energy consumption (by more than 30% compared to traditional equivalent equipment) and long-term maintenance costs.

Machine Specifications

• Lifting capacity: 5t – 400t
• Span: 12m – 30m
• Lifting height: 9m – 60m
• Working class: A5, A6, A7
• Ambient temperature range: -20°C to 40°C

Technical parameters by capacity:

3.2t

• Span: 12–30m
• Lifting height: 6–12m
• Lifting speed: 0.8/5 m/min
• Trolley speed: 2–20 m/min
• Crane speed: 3–30 m/min
• Work duty: A4–A5
• Track type: P24/P38

5t

• Span: 12–30m
• Lifting height: 6–12m
• Lifting speed: 0.8/5 m/min
• Trolley speed: 2–20 m/min
• Crane speed: 3–30 m/min
• Work duty: A4–A5
• Track type: P24/P38

10t

• Span: 12–30m
• Lifting height: 6–12m
• Lifting speed: 0.8/5 m/min
• Trolley speed: 2–20 m/min
• Crane speed: 3–30 m/min
• Work duty: A4–A5
• Track type: P38/P43

16t

• Span: 12–30m
• Lifting height: 6–12m
• Lifting speed: 0.6/4 m/min
• Trolley speed: 2–20 m/min
• Crane speed: 3–30 m/min
• Work duty: A4–A5
• Track type: P38/P43

20t

• Span: 12–30m
• Lifting height: 6–12m
• Lifting speed: 0.6/4 m/min
• Trolley speed: 2–20 m/min
• Crane speed: 3–30 m/min
• Work duty: A4–A5
• Track type: P43

Condition Available: New

Key Features

• Dead load reduced by 20–30% vs. traditional gantry cranes
• Maximum wheel pressure reduced by 15–20%
• Standardized, modular design across full product range
• Comprehensive safety protection: travel/height/overload/emergency limits, phase misalignment, phase loss, under/overvoltage protection
• Optional advanced features: electronic anti-shake, energy feedback, real-time monitoring, synchronous control, precise positioning
• Operating noise below 74dB
• Energy consumption reduced by 30%+ vs. traditional equivalent equipment

Applications

• Steel industry
• Forest products
• Biomass/pellet processing
• Concrete production
• General industrial and manufacturing facilities

Who This Machine Is For

• Steel fabricators and steel construction companies needing efficient material handling
• Manufacturing facilities looking to reduce building/infrastructure investment costs
• Industrial buyers seeking a lighter, lower-cost alternative to traditional gantry cranes

Frequently Asked Questions

What's the difference between a European-style gantry crane and a traditional gantry crane?
The European-style design reduces dead load by 20–30% and maximum wheel pressure by 15–20% through a lighter, more efficient structure, allowing for smaller support infrastructure and lower overall construction costs compared to traditional gantry cranes of the same capacity.

What lifting capacities are available?
This crane range covers 5t to 400t lifting capacity, with spans from 12m to 30m and lifting heights from 9m to 60m.

Is this available as single girder or double girder?
Yes. DJ Cranes offers this European-style design in both single girder and double girder configurations, built to the buyer's specific requirements.

What industries typically use this crane?
Common applications include the steel industry, forest products, biomass/pellet processing, and concrete production, though it suits most general industrial and manufacturing environments.

What safety features are included?
Standard safety protection includes travel limit, height limit, overload limit, emergency limit, and phase misalignment/phase loss/under-voltage/over-voltage protection. Advanced options like electronic anti-shake, energy feedback, and real-time monitoring are available for larger or specialized applications.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This model is available new, built to order according to your specific capacity, span, and configuration requirements.
