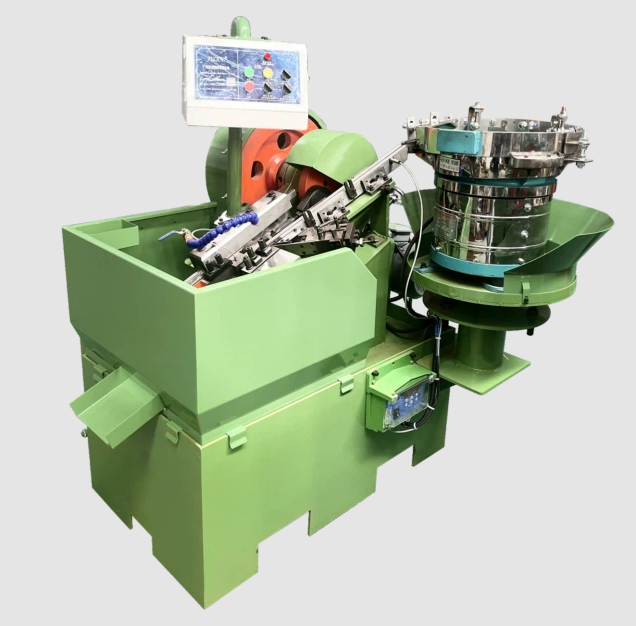

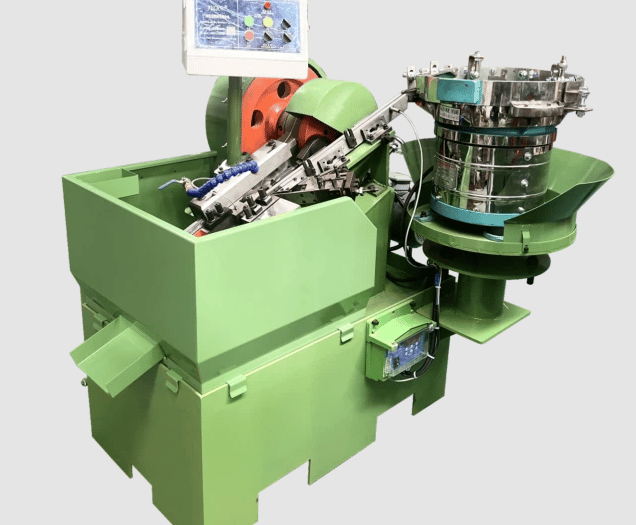

High Speed Screw Thread Rolling Machine (FFI-KN4R-40 / KN5R-60 / KN6R-80)

Fine Fasteners Industry (FFI): Hefei, Anhui, China

Automatic high-speed thread rolling machines in three sizes for screws and bolts from φ2 to φ6mm, up to 80mm thread length, and up to 320 pieces per minute, with automatic feeding and an adjustable forming structure.

The High Speed Screw Thread Rolling Machine forms threads on screw and bolt blanks by rolling, at a high rate and with minimal operator involvement. FFI offers three models: the FFI-KN4R-40 for small screws (φ2 to 4mm), the FFI-KN5R-60 (φ2 to 5mm), and the FFI-KN6R-80 (φ3 to 6mm). Thread lengths run from 4mm up to 80mm depending on the model, and output reaches up to 320 pieces per minute on the smallest.

FFI describes the machine as having a reinforced, thickened body and high-hardness wear-resistant transmission parts, which it says gives low vibration and low noise, longer service life, and fewer breakdowns. An intelligent feeding control system and an adjustable forming structure let the operator change thread specifications and parameters easily, so a new job doesn't need a highly skilled setter.

The machine is designed for continuous, automatic running, so one operator can look after several machines. A bucket roll and an iron separator are available as options to automate feeding and separation.

Why Choose This Machine?

Thread rolling is the standard way to make screw threads at volume, and rolled threads are stronger than cut ones. A machine that runs unattended and switches specifications quickly cuts the labour cost per screw.

• High output. Up to 320 pieces per minute on the small model.
• Low labour. Designed so one operator can run several machines.
• Quick changeover. Adjustable forming structure and simple parameter switching.
• Durable build. Thickened body, wear-resistant transmission parts, and a structural lubrication system.
• Wide range. Standard and non-standard screws in carbon steel, stainless steel, aluminium alloy, and other metals.

Machine Specifications

• FFI-KN4R-40: screw diameter φ2.0 to 4.0mm; thread length 4 to 40mm; capacity 260 to 320 pcs/min; mould size 76 (89) × 25 × 40mm; main motor 2.2kW; net weight 1,000kg; dimensions 1,700 × 1,200 × 1,700mm
• FFI-KN5R-60: screw diameter φ2.0 to 5.0mm; thread length 5 to 60mm; capacity 200 to 260 pcs/min; mould size 90 (105) × 25 × 60mm; main motor 4.0kW; net weight 1,300kg; dimensions 2,100 × 1,400 × 1,700mm
• FFI-KN6R-80: screw diameter φ3.0 to 6.0mm; thread length 5 to 80mm; capacity 180 to 220 pcs/min; mould size 110 (115) × 25 × 80mm; main motor 5.5kW; net weight 1,800kg; dimensions 2,100 × 1,600 × 1,750mm

Common: coil pump motor as listed on the page (see notes)

Materials processed: carbon steel, stainless steel, aluminium alloy, and other metals
Optional accessories: bucket roll and iron separator (automatic feeding and separation)
Certification (stated): CE

Condition Available: New

Key Features

• Continuous rolling for stable, high-volume output
• Automatic operation, with one operator managing multiple machines
• Intelligent feeding control system
• Adjustable forming structure for quick thread specification changes
• Reinforced thickened body and wear-resistant transmission parts
• Low vibration, low noise, and low energy consumption
• Structural lubrication system to reduce wear
• Optional bucket roll and iron separator

Applications

• Screw, bolt, and threaded fastener production
• Automotive parts, electronic hardware, and construction fasteners
• Hardware accessories and furniture hardware

Who This Machine Is For

• Fastener manufacturers producing small and medium screws in volume
• Hardware and screw factories looking to cut labour costs
• Producers of standard and non-standard threaded parts

Frequently Asked Questions

What screw sizes can it make?
From φ2.0mm up to φ6.0mm in diameter, and thread lengths from 4mm to 80mm, depending on the model.

How fast is it?
The FFI-KN4R-40 runs at 260 to 320 pieces per minute, the KN5R-60 at 200 to 260, and the KN6R-80 at 180 to 220.

What materials can it process?
Carbon steel, stainless steel, aluminium alloy, and other metals, according to FFI.

Can one person run more than one machine?
FFI says the automatic design lets one operator manage several machines.

Is it CE certified?
FFI says the series has passed CE certification. Please ask for the certificate.

What options are available?
A bucket roll and an iron separator for automatic feeding and separation.

How much space does it need?
From 1,700 × 1,200mm (smallest model) to 2,100 × 1,600mm (largest), and the machines weigh from 1,000 to 1,800kg.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
These machines are available new.
