FFI-TX-15B Screw Heading Machine (M3-M6, up to 130pcs/min) | Fine Fasteners Industry, Hefei, Chin

FFI-TX-15B High Speed Screws Making Machine

Fine Fasteners Industry (FFI): Hefei, Anhui, China

Cold heading machine for screws from M3 to M6, taking blanks from 10 to 60mm long at 110 to 130 pieces per minute, marketed as an integrated heading and thread rolling machine with servo "camless" changeover.

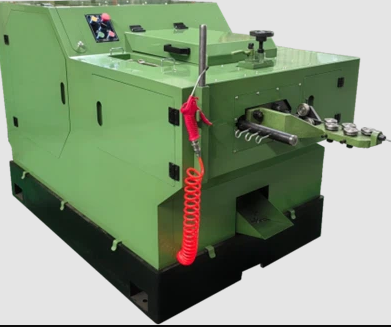

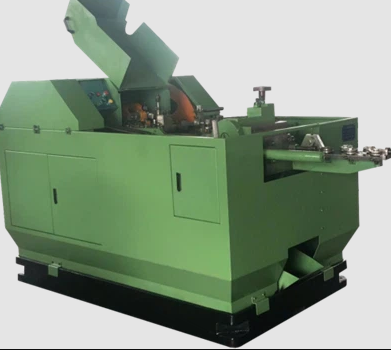

The FFI-TX-15B is a high-speed screw making machine that forms the heads of screws from wire. It takes blanks of M3 to M6 diameter and 10 to 60mm in length, and makes screws up to 50mm long at 110 to 130 pieces per minute, driven by a 2.2kW main motor.

FFI describes its screw making machines as integrating heading and threading in a single continuous flow, so wire is turned into finished screws without a separate thread rolling machine. It also describes a servo-driven "camless" design, where the settings are stored digitally and a change of specification takes 5 to 10 minutes from the touch screen, instead of the half day FFI says cam-driven machines need. Screw pointing, for self-tapping or sharp-tipped screws, is an option.

The machine works with tooling sets: the main die is 34.5 × 80.5mm, the punch 31 × 75mm, and the cut-off die 19 × 40mm. Moulds for the heading machine and an automatic checker are available as extras.

Why Choose an Integrated Screw Machine?

Separate heading and thread rolling machines need two operators or transfer steps. An integrated machine keeps the process in one flow, which FFI says saves floor space and avoids handling damage between operations.

• Compact build. Weighs 1,750kg and measures 1,850 × 1,080 × 1,110mm.
• Low power. A 2.2kW main motor.
• Fast changeover. FFI says 5 to 10 minutes from the touch screen with its servo camless design.
• Wire to finished screw. Heading and threading in one flow (per FFI's description).
• Optional inspection. An automatic checker can be added.

Machine Specifications

FFI-TX-15B (screw heading machine)

• Blank diameter: M3 to M6
• Blank length range: 10 to 60mm
• Maximum screw length: 50mm
• Capacity: 110 to 130 pcs/min
• Main die size: 34.5 × 80.5mm
• Punch size: 31 × 75mm
• Cut-off die size: 19 × 40mm
• Main motor: 2.2kW
• Weight: 1,750kg
• Dimensions: 1,850 × 1,080 × 1,110mm

Options and extras: pointing (self-tapping or sharp tip), heading machine moulds (extra cost), automatic checker (extra cost)

Condition Available: New

Key Features

• Cold heading of M3 to M6 screws at 110 to 130 pcs/min
• Described as integrating heading and thread rolling in a single flow
• Servo camless changeover in 5 to 10 minutes (FFI's description)
• Optional pointing for self-tapping or sharp-tipped screws
• Optional automatic checker
• Compact 1,850 × 1,080mm footprint

Applications

• Production of small machine screws and self-tapping screws
• Fastener factories making M3 to M6 screws in volume
• Hardware, electronics, and furniture screw production

Who This Machine Is For

• Small and medium fastener manufacturers
• Screw factories adding or replacing heading capacity
• Producers who change specifications often

Frequently Asked Questions

What screw sizes can it make?
M3 to M6, from blanks 10 to 60mm long, with a maximum finished screw length of 50mm.

How fast is it?
110 to 130 pieces per minute.

How much power does it need?
A 2.2kW main motor.

How much does it weigh and how much space does it need?
1,750kg, and 1,850 × 1,080 × 1,110mm.

Can it make pointed screws?
Pointing is an optional extra.

What options are available?
An automatic checker, and extra moulds for the heading machine, both at extra cost.

How quickly can I change screw sizes?
FFI says 5 to 10 minutes on the touch screen, thanks to its servo camless design.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This machine is available new.
