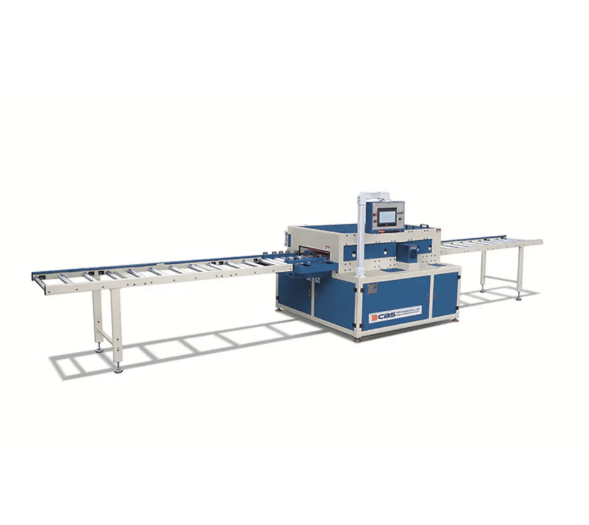

FMT-600 CNC Aluminium Formwork Trimming Machine | CGMA, Jinan, China

The FMT-600 is a CNC trimming machine designed for refurbishing aluminium formwork panels. Formwork panels that have been used on site often have residue and damaged, sharp, or uneven edges along the side rails. This machine cleans and reshapes them so the panels can go back into service.

The process works in stages. Buffing tools first clean the residue from the side of the formwork. High-speed milling blades then trim the side rails, remove sharp edges, and make the rail flat at the required width. The trimming depth is CNC adjustable, and a dust collector captures all the chips.

It handles panel widths from 100mm to 600mm, and the processing speed is adjustable from 4 to 8m/min with a variable frequency drive. CGMA also lists a heavy-duty automatic buffing machine, a straightening machine, and a water jet cleaning machine, so the FMT-600 can be part of a broader refurbishment set-up.

Why Choose a Dedicated Formwork Trimming Machine?

Aluminium formwork is reused many times, and after repeated use the side rails pick up residue, burrs, and uneven edges. Refurbishing panels is a business in itself, and doing it by hand is slow and inconsistent.

• Cleans first, then trims. Buffing tools remove residue before the milling blades cut, which protects the blades and gives a cleaner result.
• Flat, consistent rails. The milling blades make the side rail flat at the required width and remove sharp edges.
• CNC-set depth. Trimming depth is adjustable through the CNC, so it can be matched to how worn the panel is.
• Adjustable speed. Processing speed of 4 to 8m/min is set by a variable frequency drive.
• Cleaner workshop. Chips go straight into the dust collector.

Machine Specifications

• Power supply: 3-phase, 380V/415V, 50Hz
• Rated power: 22.6kW
• Processing speed: 4 to 8m/min (VFD adjustable)
• Processing width: 100mm to 600mm
• Processing length: 600mm minimum
• Main body dimensions (L × W × H): 2,300 × 1,750 × 1,250mm
• Trimming depth: CNC adjustable
• Dust collection: included (collects all chips)

Condition Available: New

Key Features

• Buffing tools clean residue from the side of the formwork before trimming
• High-speed milling blades trim side rails, remove sharp edges, and flatten to the required width
• CNC-adjustable trimming depth
• VFD-adjustable processing speed of 4 to 8m/min
• Dust collector for all chips
• Handles panel widths of 100 to 600mm

Applications

• Refurbishing used aluminium formwork panels
• Trimming and flattening formwork side rails
• Removing sharp edges and residue from reused panels

Who This Machine Is For

• Formwork rental and refurbishment businesses
• Contractors who own and reuse aluminium formwork
• Formwork manufacturers offering refurbishment services

Frequently Asked Questions

What does this machine do?
It refurbishes aluminium formwork panels by cleaning the side rails with buffing tools, then trimming them with high-speed milling blades to remove sharp edges and make them flat at the required width.

What panel sizes can it handle?
Panel widths from 100mm to 600mm, with a minimum length of 600mm.

How fast does it run?
Processing speed is adjustable from 4 to 8m/min using a variable frequency drive.

How is the trimming depth set?
It is CNC adjustable.

Does it produce a lot of dust?
The machine is equipped with a dust collector that collects all the chips.

What power does it need?
3-phase 380V or 415V, 50Hz, with a rated power of 22.6kW.

What other machines does CGMA offer for refurbishment?
CGMA also lists a heavy-duty automatic buffing machine, a formwork straightening machine, and an automatic water jet cleaning machine.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This model is available new, from a manufacturer with 23 years of experience in aluminium processing machinery.
