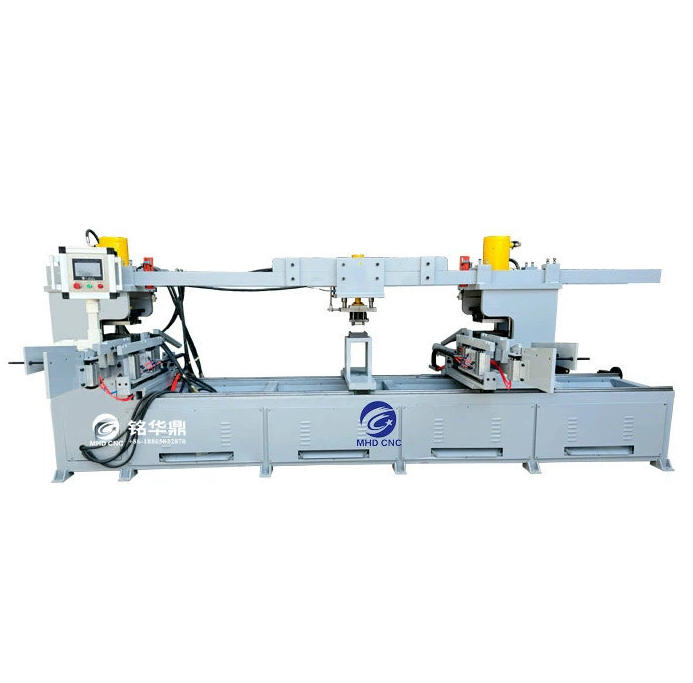

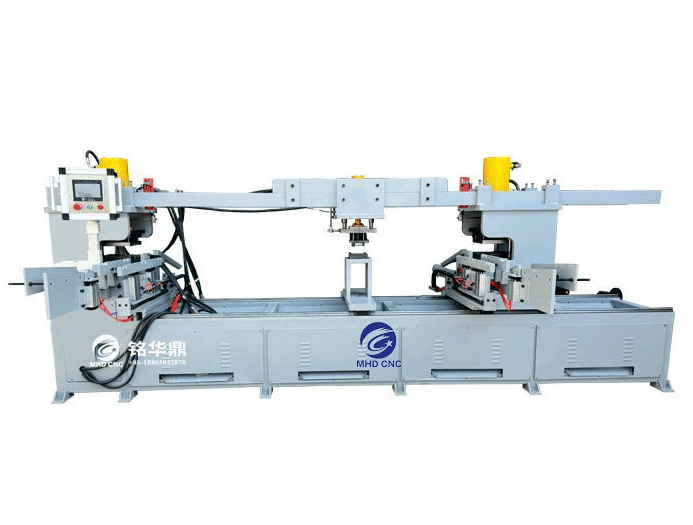

The Frame Scaffolding Diagonal Brace Fabrication Machine makes the diagonal braces used in frame scaffolding, and can also make cross braces. Round tube is flattened, punched, and formed in a single pass, rather than in separate operations.

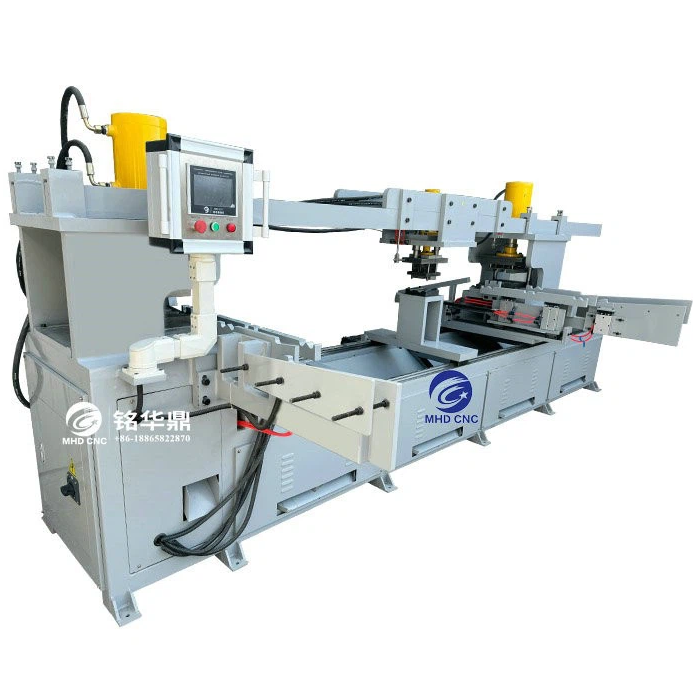

The whole process is controlled by a Siemens PLC and is designed to be easy and quick to operate. It is a fully automatic machine with a complete cycle of feeding, punching, forming, and unloading. It processes two tubes at a time, and because loading and unloading are automatic, labour intensity is low.

Power comes from a hydraulic pressure station. MHD CNC describes it as compact, efficient, reliable, and leak-free. A high-precision punching die does the forming work, and the machine body is built to be firm, with low vibration and stable precision.

Why Choose an Automatic Brace Machine?

Braces are made in large numbers for every frame scaffolding set, and each one needs to be flattened, punched, and formed to the same dimensions so that it fits the frames it connects to. Doing this in several separate steps adds handling, time, and variation.

• One-pass processing. Flattening, punching, and forming happen in one operation, which MHD CNC says shortens the process flow and saves time and energy.
• Two tubes at once. Processing two tubes per cycle raises output.
• Automatic cycle. Loading, punching, forming, and unloading run automatically, so operators aren't handling each piece.
• Precise and repeatable. A high-precision, durable punching die and Siemens PLC control give consistent results.
• Stable and leak-free. A firm machine body and a compact, no-leakage hydraulic station keep precision steady over long runs.

Machine Specifications

⚠ Not yet available. The page gives no numeric specifications. To complete this section, I need the following from MHD CNC:

• Tube diameter and wall thickness range
• Tube length range
• Output rate (braces per hour)
• Hydraulic pressure and punching force
• Motor and total power, and electrical supply
• Machine dimensions and weight
• Warranty and lead time

Control system: Siemens PLC
Drive: hydraulic pressure station
Processing: two tubes at a time
Condition Available: New

Key Features

• Makes frame scaffolding diagonal braces and cross braces
• Flattening, punching, and forming in one pass
• Siemens PLC control of the whole process
• Fully automatic cycle of feeding, punching, forming, and unloading
• Processes two tubes at a time
• Compact, leak-free hydraulic pressure station
• High-precision, durable punching die
• Firm machine body with low vibration and stable precision

Applications

• Making diagonal braces for frame scaffolding
• Making cross braces for frame scaffolding
• Scaffold component production lines

Who This Machine Is For

• Frame scaffolding manufacturers
• Scaffold producers who make braces in volume
• Factories building a frame scaffold production line

Frequently Asked Questions

What does this machine make?
Diagonal braces for frame scaffolding, and also cross braces.

How does it work?
The round tube is flattened, punched, and formed in one pass, using a hydraulic pressure station and a high-precision punching die.

Is it automatic?
Yes. It runs an automatic cycle of feeding, punching, forming, and unloading, and it processes two tubes at a time.

What control system does it use?
A Siemens PLC controls the whole process.

What sizes of tube can it handle?
The page doesn't say. Please contact the supplier with your brace dimensions for a specification.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This model is available new, from a manufacturer that specialises in scaffolding production equipment.
