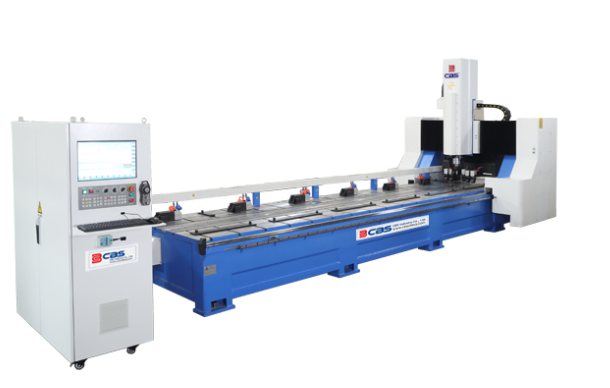

FSW-660M/690 Friction Stir Welding Machine for Aluminium Formwork | CBS Industry, Jinan, China

The FSW-660M/690 is a friction stir welding (FSW) machine developed specifically for aluminium formwork production. It welds the centre joint between two L-sections to form a C panel, and handles C panel widths from 250mm to 600mm in a single weld length of up to 6000mm.

Friction stir welding is a solid-state joining process. A constantly rotating tool with a specially designed shoulder and pin is plunged into the workpiece. Friction between the tool and the material generates heat and softens the aluminium without melting it. As the tool travels along the joint, the softened material is swept from the leading edge to the trailing edge and forged into a solid joint.

The machine uses a heavy-duty gantry design, chosen for strength and durability in continuous production. It is part of CBS Industry's aluminium formwork machine range, alongside their panel cutting and mitre cutting machines.

Why Choose Friction Stir Welding for Aluminium Formwork?

Conventional arc welding of aluminium needs welding wire, flux, and shielding gas, and produces fume, sparks, and bright light. Friction stir welding removes most of that from the workshop.

• No welding consumables. No wire, rod, flux, or protective gas is needed. The only consumable is the pin tool.
• Long tool life. In aluminium alloy welding, one pin tool can typically weld a joint line of 1000 to 2000 metres.
• Cleaner, safer workshop. There is no fume, dust, spark, or harmful light, and noise is low.
• Lower running cost. CBS positions FSW as a cost-saving welding technology compared with other methods.

For formwork manufacturers, this means fewer consumables to buy and manage, a cleaner working environment, and a process designed specifically for the C panel joint.

Machine Specifications

• Maximum welding thickness: 5mm
• Worktable dimensions: 800 × 3000mm
• X axis stroke: 6000mm
• Y axis stroke: 400mm
• Z axis stroke: 200mm
• X axis moving speed: 6000mm/min
• Y axis moving speed: 5000mm/min
• Z axis moving speed: 5000mm/min
• Maximum weld length per pass: 6000mm
• C panel width range: 250mm to 600mm
• Overall dimensions (L × W × H): 7000 × 2300 × 2500mm
• Gross weight: approx. 8000kg

Condition Available: New

Key Features

• Solid-state welding process with no melting of the aluminium
• No fume, dust, sparks, or harmful light, and low noise
• No welding wire, rod, flux, or shielding gas required
• One pin tool can weld 1000 to 2000 metres of joint line in aluminium alloy
• Built specifically for aluminium formwork C panel welding (two L-sections, centre joint)
• Heavy-duty gantry construction
• Weld lengths up to 6000mm in one pass

Applications

• Aluminium formwork C panel production
• Aluminium formwork system manufacturing
• Long-run aluminium profile joining where a clean, consumable-free weld is preferred

Who This Machine Is For

• Aluminium formwork manufacturers
• Formwork system producers expanding into aluminium panels
• Workshops that want to reduce welding consumables and fume extraction requirements

Frequently Asked Questions

What is this machine used for?
It welds aluminium formwork C panels. It joins two L-sections along their centre joint using friction stir welding.

What panel sizes can it weld?
C panel widths from 250mm to 600mm, with a maximum single weld length of 6000mm.

What thickness can it weld?
Up to 5mm.

Does it need welding wire or shielding gas?
No. Friction stir welding needs no wire, rod, flux, or protective gas. The only consumable is the pin tool.

How long does a pin tool last?
In aluminium alloy welding, one pin tool can typically weld a joint line of 1000 to 2000 metres.

Is it safe and clean to operate?
The process produces no fume, dust, sparks, or harmful light, and runs at low noise.

What other CBS machines pair with this one?
CBS also supplies aluminium formwork panel cutting machines and degree (mitre) cutting machines, so a full formwork production setup can be sourced from one manufacturer.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This model is available new, from a manufacturer that supplies complete turn-key lines as well as individual machines.
