Grain Bin Floor Roll Forming Machine in Kansas, USA

A Grain Bin Floor Roll Forming Machine is a specialized piece of equipment designed to produce corrugated panels used in grain bins or silos. These panels are crucial for grain storage facilities, providing a durable, ventilated floor to ensure proper aeration and prevent spoilage of stored grains.

Machine Description

The Grain Bin Floor Roll Forming Machine is engineered to fabricate high-strength, precise corrugated floor panels. These panels are typically perforated or have airflow gaps for effective grain aeration. The machine operates with advanced automation, ensuring consistency and accuracy in production. It is suitable for manufacturing panels from galvanized steel or other corrosion-resistant materials.

This roll forming system includes several stages: feeding, roll forming, punching (optional), cutting, and stacking. The machine is equipped with user-friendly controls, ensuring efficient operation even for less experienced operators.

Specifications

1. Material Specifications:
   • Material: Galvanized Steel, Stainless Steel, Aluminum
   • Thickness: 0.5–1.5 mm
   • Width: 600–1250 mm (customizable)

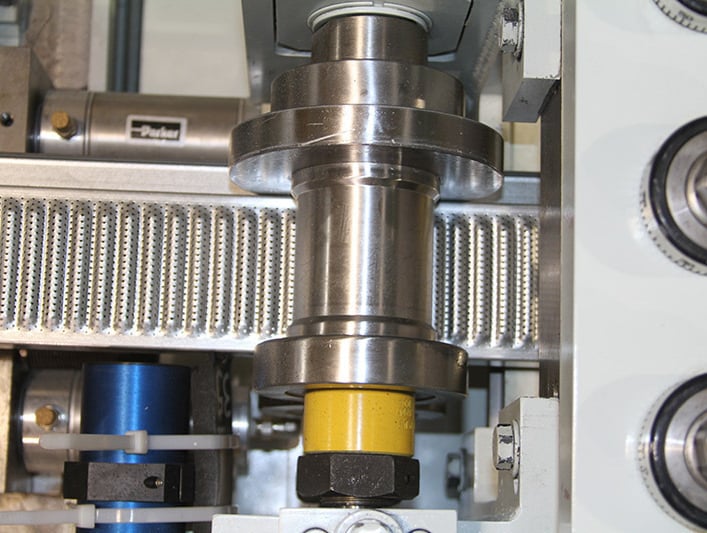

2. Roller System:
   • Number of Stations: 18–24 stations
   • Roller Material: High-grade GCr15 steel, hardened and chrome-plated
   • Shaft Diameter: 70–90 mm
3. Punching and Perforation (Optional):
   • Hydraulic punching system
   • Adjustable perforation patterns
   • CNC control for precise positioning

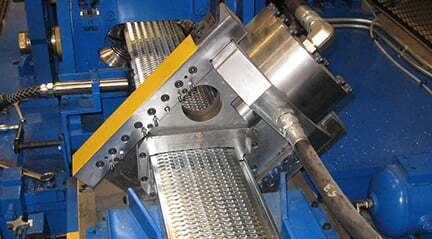

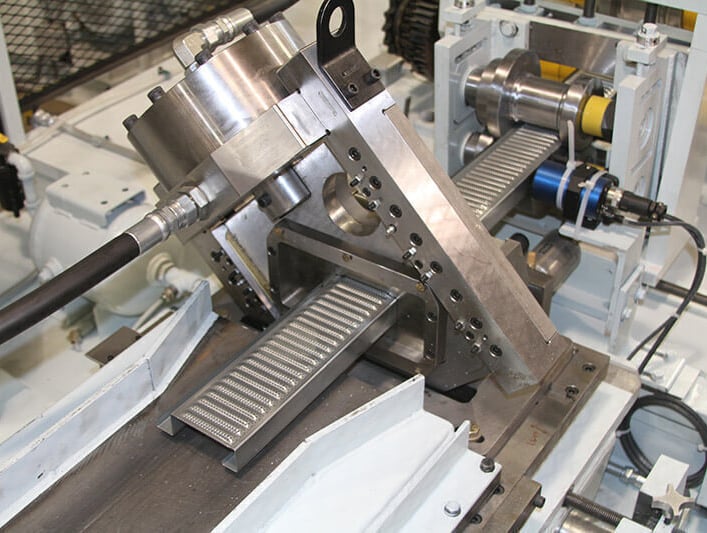

4. Cutting System:
   • Type: Hydraulic cutting with hardened blades
   • Accuracy: ±0.5 mm
   • Power: 5.5 kW hydraulic system
5. Control System:
   • PLC Control: Panasonic/Siemens/Delta
   • Touchscreen interface with real-time production monitoring
   • Remote control capabilities
6. Machine Speed:
   • Standard: 15–25 m/min
   • High-speed option: 40 m/min
7. Frame and Structure:
   • Machine Frame: Heavy-duty steel welded structure
   • Coating: Anti-rust paint and powder coating
   • Dimensions: Approx. 10,000 mm x 1,500 mm x 1,500 mm (varies based on configuration)
8. Power Requirements:
   • Main Motor Power: 11–15 kW
   • Voltage: Customized to regional standards (380V, 50Hz as default)
9. Additional Features:

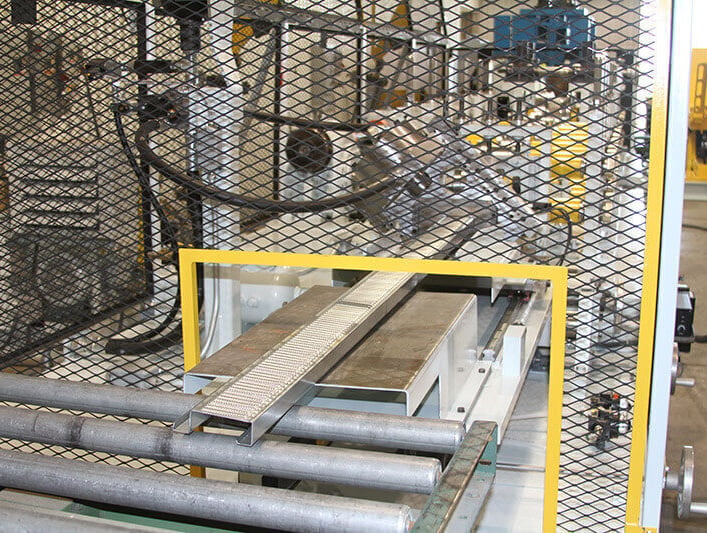

   • Automatic stacker for efficient panel collection
   • Safety enclosures and guards
   • Coil handling systems, including uncoilers and straighteners

Key Features

• Durability: Robust construction to handle heavy-duty materials.
• Precision: Ensures uniform panel dimensions and perforations.
• Flexibility: Customizable designs for different grain bin floor specifications.
• Automation: PLC-controlled system simplifies operations and reduces human errors.
• Safety: Built-in safety features to protect operators.

Applications

• Grain storage facilities (bins and silos)
• Industrial warehouses
• Agricultural storage solutions
• Ventilated flooring in large storage units

Maintenance Requirements

• Daily Checks:
  • Inspect rollers and shafts for alignment.
  • Ensure the cutting blades are sharp and properly aligned.
• Weekly Maintenance:
  • Lubricate moving parts like shafts and chains.
  • Check the hydraulic system for leaks.
• Monthly Inspection:
  • Inspect the PLC system for errors.
  • Verify the accuracy of the perforation and cutting systems.
• Annual Servicing:
  • Replace worn-out rollers and blades.
  • Conduct a thorough calibration of the entire machine.

Question and Answer Section

1. What materials can the Grain Bin Floor Roll Forming Machine process?

The machine can process galvanized steel, stainless steel, and aluminum, with thicknesses ranging from 0.5 mm to 1.5 mm.

2. Is it possible to customize the perforation patterns?

Yes, the hydraulic punching system allows for customizable perforation patterns, controlled through the PLC system.

3. What is the production speed of the machine?

The standard production speed is 15–25 m/min, with high-speed options available up to 40 m/min.

4. How is the machine controlled?

The machine is controlled via a PLC system with a touchscreen interface, providing easy operation and real-time monitoring.

5. Can the machine operate on different power supplies?

Yes, the power system can be customized to meet regional requirements, such as 380V/50Hz or other standards.

6. What safety features does the machine have?

The machine includes safety guards, emergency stop buttons, and optional enclosures to ensure operator safety.

7. How long does it take to set up the machine?

Initial setup and calibration typically take 2–3 days, depending on the configuration and site conditions.
