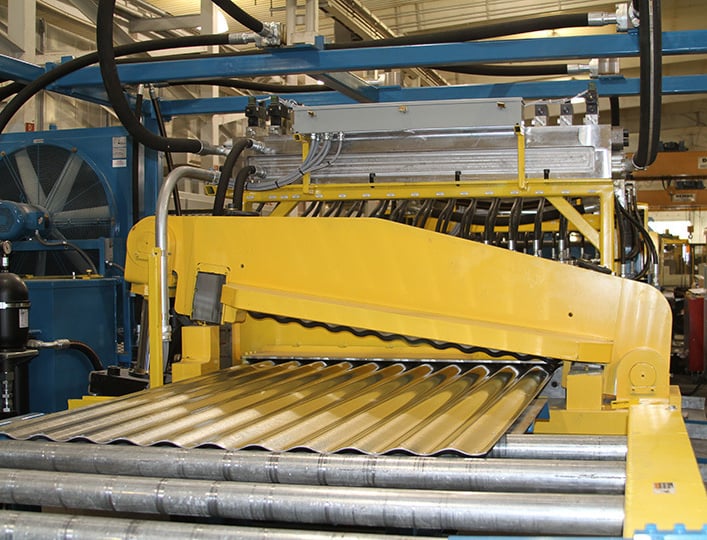

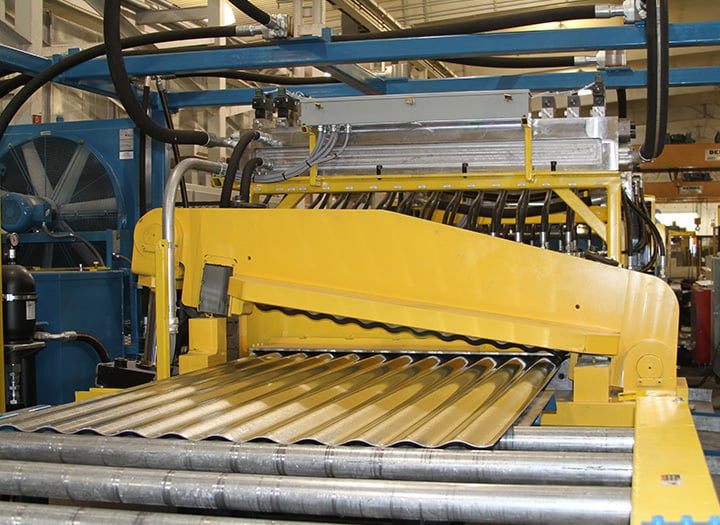

Grain Bin Sidewall Roll Forming Machine in Kansas, USA

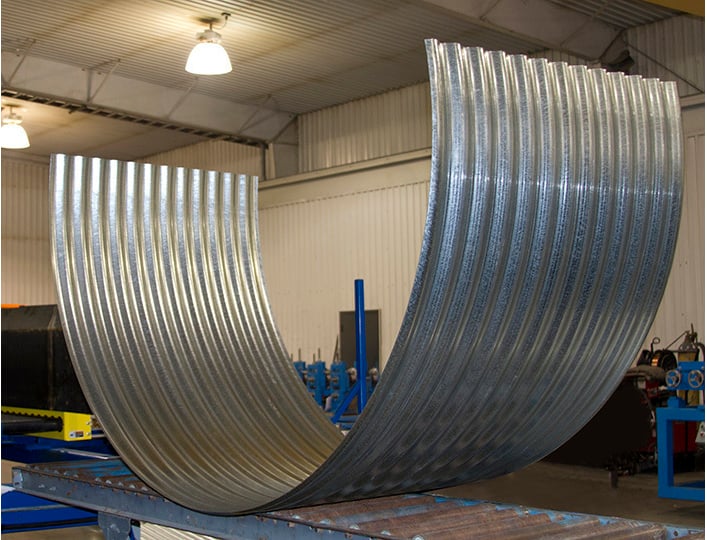

A Grain Bin Sidewall Roll Forming Machine is a specialized piece of equipment used to manufacture the curved, corrugated metal panels that form the walls of grain storage bins. These machines are integral in the agriculture industry, ensuring efficient, precise, and high-quality production of panels tailored for durable grain bin construction. The USA has a thriving market for grain bins due to its extensive agricultural operations, making this machine a critical tool for producers.

Specifications of Grain Bin Sidewall Roll Forming Machines

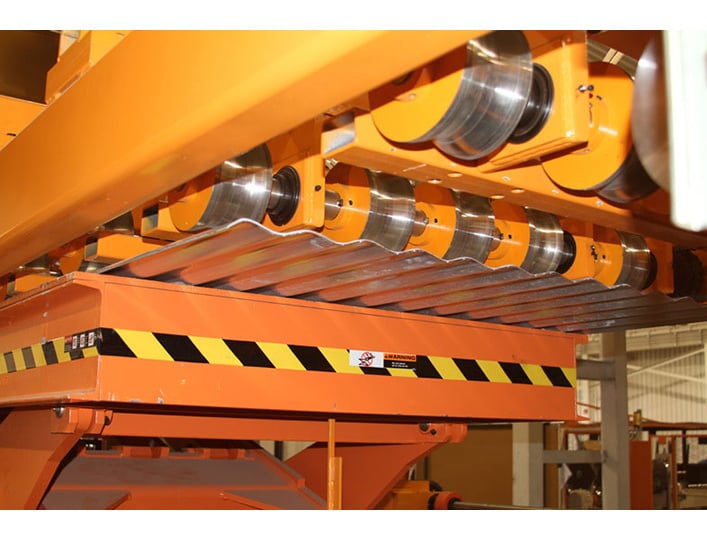

1. Roller Materials
   • High-grade steel rollers with chrome plating for durability.
   • Rollers designed for corrugation and curve profiles.

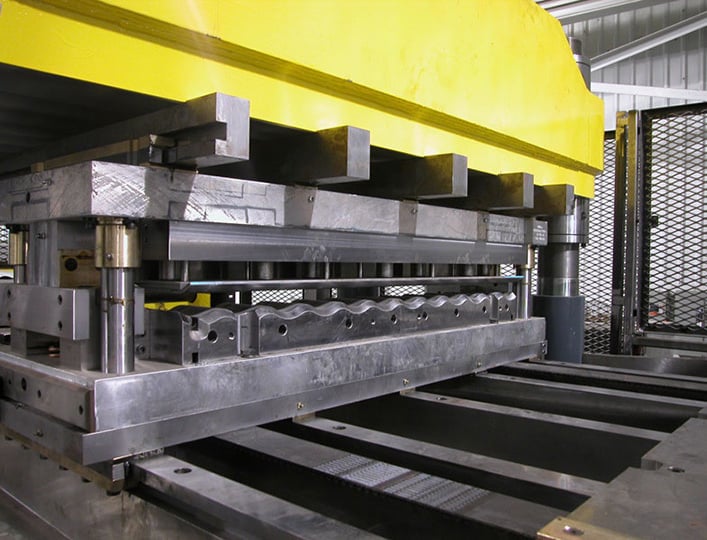

2. Punching and Notching
   • Hydraulic punching system for connection holes.
   • Precise notching for overlapping panel alignment.
3. Frame Size
   • Heavy-duty steel frame for stability during high-speed operations.
   • Approximate dimensions: 7m x 1.5m x 1.2m (customizable).
4. Motors
   • Main motor: 15-30 kW, depending on production capacity.
   • Servo motors for precise feeding and positioning.
5. Cutting System
   • Hydraulic cutting system with hardened steel blades.
   • Capable of cutting materials with thicknesses up to 2.5mm.
6. Machine Speed
   • Production speed: 10-20 meters per minute.
   • Adjustable speed for custom production requirements.
7. PLC System
   • Programmable Logic Controller (PLC) with a touchscreen interface.
   • Integration for automatic operation and error detection.
8. Safety Features
   • Safety enclosures around moving parts.
   • Emergency stop buttons and overload protection systems.
9. Materials Processed
   • Galvanized steel, stainless steel, and aluminum.
   • Thickness: 0.8mm to 2.5mm.
10. Power Supply
    • Standard: 380V, 50Hz or 220V, 60Hz (customizable for USA standards).
11. Coil Handling System
    • Coil weight: Up to 10 tons.
    • Uncoilers and recoilers with hydraulic operation.
12. Optional Features
    • Stacker systems for automated panel collection.
    • Remote PLC monitoring for easy operation.
    • Coil car for easier loading.

Machine Description

The Grain Bin Sidewall Roll Forming Machine is engineered to streamline the production of corrugated sidewall panels used in grain bin construction. With robust construction, precision tooling, and high efficiency, this machine is tailored to meet the demanding requirements of the agriculture sector.

Key features include a fully automated production process, starting from material feeding to the final cutting and stacking. The machine's design ensures high repeatability, consistency, and adaptability to varying panel sizes. This ensures compatibility with grain bins ranging from small farm silos to large commercial storage facilities.

Common Questions and Answers

1. What is the primary use of a Grain Bin Sidewall Roll Forming Machine?

The machine is used to manufacture corrugated sidewall panels for grain bins, which are critical for storing grains securely in agricultural and commercial settings.

2. What materials can the machine process?

It is designed to handle galvanized steel, stainless steel, and aluminum with a thickness range of 0.8mm to 2.5mm.

3. Is the machine customizable?

Yes, the machine can be customized in terms of size, power supply, and additional features like stackers and remote PLC monitoring.

4. What safety features does the machine include?

The machine is equipped with safety enclosures, emergency stop buttons, and overload protection to ensure operator safety.

5. How fast can the machine produce panels?

The production speed is approximately 10-20 meters per minute, which can be adjusted based on specific requirements.

6. Does the machine require extensive maintenance?

No, regular maintenance such as lubrication of moving parts, checking alignment, and cleaning is sufficient to ensure longevity.

7. Can the machine be adapted for USA power standards?

Yes, it can be customized for 220V or 380V power supplies commonly used in the USA.

8. How is the machine delivered and installed?

The machine is shipped in secure packaging, and professional installation support is available, including setup and training for operators.

9. What industries benefit most from this machine in the USA?

Agriculture and grain storage industries are the primary beneficiaries, along with manufacturers of grain bins and silos.

10. What optional features are available?

Optional features include stackers, remote PLC systems, coil handling equipment, and specialized punching or notching configurations for unique grain bin designs.
