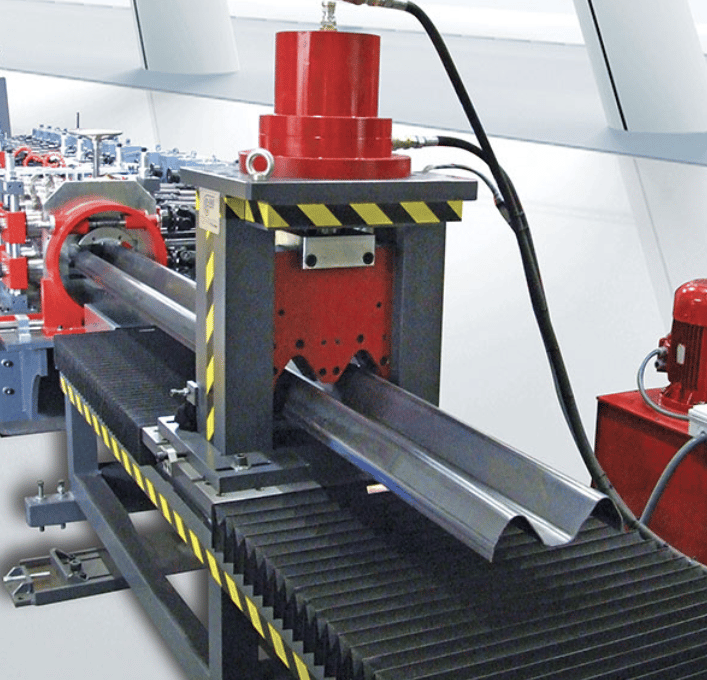

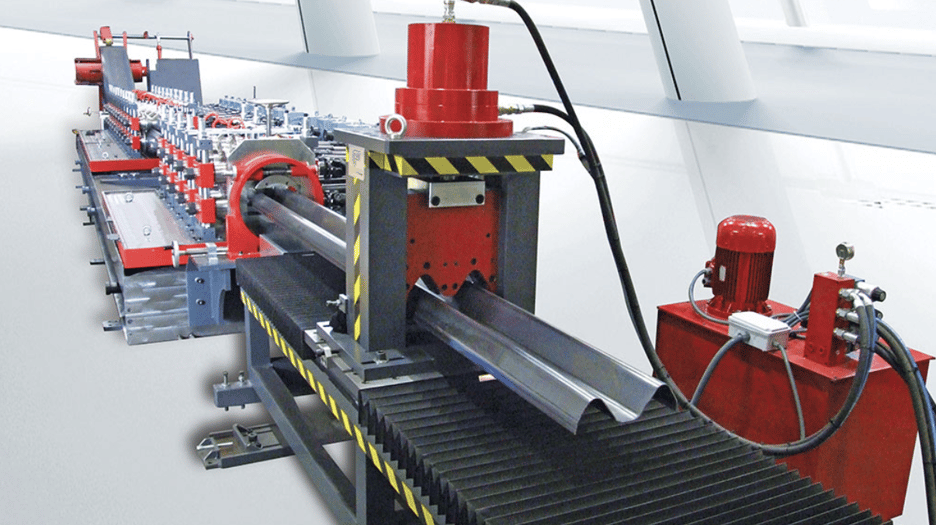

Guard Rail Road Barrier Roll Forming Machine in Istanbul, Turkey

Roll Forming Machine, Cassette type for Rail ‘’A (2W), B, 3W profiles’’

• Start- stop or automatic operation with qiuck change roll tooling

• Sheet metal width:420 mm / 470 mm / 750 mm

• Strip thickness: 3.0 – 3.5 mm

• Cutting length profile: 4.300 mm (adjustable length)

• Material:S235JR / S355JR / S420MC/ S500MC

• Special stamping unit and roll forming machine

Span Band

• Strip thickness: 5.0 mm

• Strip width: 70 mm

EAE Machinery provides both standard and flexible production line

for processing of coiled sheet metal of road barrier systems

Guard Rail Post '' C '' Profile

• Start- stop or automatic operation with quick change roll forming

• Strip thickness: 4.0 – 5.0 mm

• Material: S235JR/ S355JR

• İntegral pre punch equipment

• Roll Forming Machine, Flying shears and Stacking unit

Sigma Post “Sigma profile’’

• Start- stop or automatic operation with quick change roll tooling

• Strip thickness:4.0 – 4.2 mm

• Material:S235JR/ S355JR

• Integrated pre-punch equipment

• Roll Forming machine, Flying shears and Stacking unit
