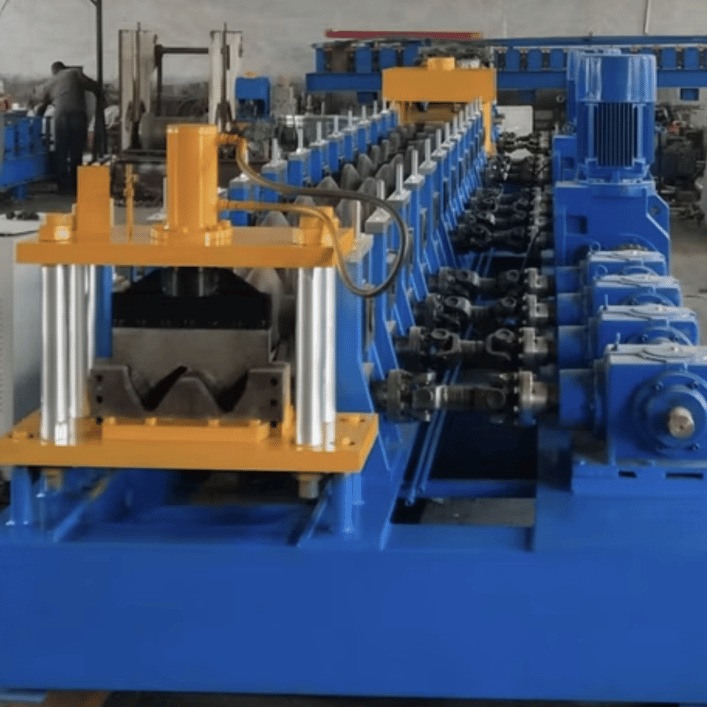

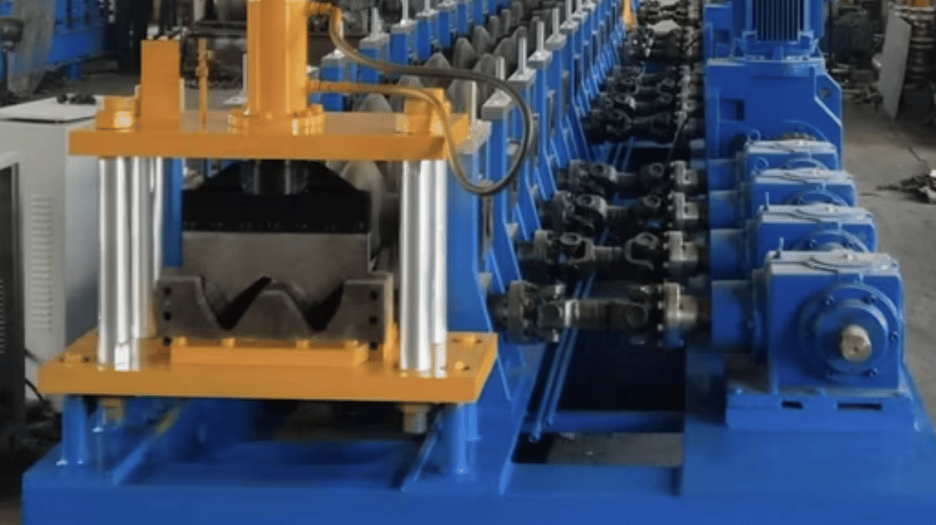

Guardrail Roll Forming Machine in Dominican Republic

A guardrail roll forming machine is a highly specialized piece of equipment designed for producing highway guardrails, commonly seen on roadsides as a safety barrier for vehicles. These machines are essential in producing high-quality guardrails with consistent accuracy, strength, and durability.

Machine Description

Guardrail roll forming machines create guardrails from coils of steel, which are typically galvanized to prevent rust and corrosion. The machine feeds the metal coil into a series of rollers, gradually forming it into the desired guardrail profile. After forming, the guardrail is often cut to length using a hydraulic cutting system, then punched for bolts and installation holes. This high-precision forming ensures that the guardrails meet stringent safety and quality standards, particularly for use in highway infrastructure.

Specifications of Guardrail Roll Forming Machine

Here are typical specifications for a guardrail roll forming machine:

1. Roller Material: Hardened steel or chrome-coated rollers to prevent wear.
2. Frame Size and Structure: Heavy-duty steel frame, often with a thickness around 20-30 mm, ensuring machine stability and longevity.
3. Motors: AC motors with high power, generally around 15-25 kW depending on the production speed and guardrail thickness.
4. Punching System: Hydraulic punching system for bolt holes, slots, and other installation requirements; programmable for varying hole patterns.
5. PLC System: Programmable Logic Controller (PLC) system for controlling the machine’s forming, punching, and cutting processes.
6. Hydraulic Cutting System: Precise, automatic hydraulic cutting with sensors to achieve accurate lengths.
7. Machine Speed: Production speeds of 10-20 meters per minute, depending on guardrail specifications.
8. Safety Guards and Enclosures: Protective guards around the machine to ensure operator safety.
9. Enclosures: Sound and dust enclosures to provide a safer and cleaner working environment.
10. Profile Types: Typically produces W-beam or Thrie-beam profiles, with adjustable settings for specific profile requirements.
11. Thickness Range: Suitable for steel thicknesses ranging from 2.5 to 4 mm.
12. Profile Width: Can handle guardrail profiles up to 500 mm wide.
13. Control Panel: User-friendly control interface for easy adjustment and monitoring.

Profile Description

Guardrails produced by roll forming machines are made from galvanized or stainless steel to resist corrosion and withstand harsh environmental conditions. The two main types of guardrail profiles are:

• W-beam Profile: The most commonly used guardrail type, featuring a wavy design for better impact resistance.
• Thrie-beam Profile: Thicker and wider than W-beams, suitable for areas that require higher impact resistance.

Industries and Market Size: Guardrails are widely used in highway safety, parking lots, bridges, and industrial facilities. The primary markets include transportation departments, construction firms, and civil engineering companies.

Optional Extras

• Stackers: Automatic stacking systems to streamline production and organize finished guardrails.
• Remote PLC Systems: Allows remote operation and monitoring.
• Coil Car Tippers: Aids in loading heavy coils onto the machine with ease.
• Uncoilers and Recoilers: For loading and collecting metal coils efficiently.
• Automatic Stackers and Leveling Systems: Enhances production efficiency by automating material handling.

Setup and Installation Process

Setting up a guardrail roll forming machine requires careful calibration and testing to ensure that it meets the specifications for length, width, and hole punching accuracy. A professional installation team often performs initial setup and testing to optimize performance.

1. Machine Positioning and Leveling: Ensuring the machine is stable and level is crucial for accurate production.
2. Roller Alignment: Adjusting the rollers to match the profile requirements for W-beam or Thrie-beam production.
3. Programming the PLC: Inputting the desired specifications for length, hole positioning, and production speed.
4. Testing: Running trial production to check for alignment, profile accuracy, and cutting precision.

Maintenance Requirements

Routine maintenance ensures the guardrail roll forming machine continues to operate efficiently and produces high-quality guardrails.

• Daily Cleaning: Removing dust and debris from the rollers and control panel.
• Lubrication: Regularly lubricating moving parts like rollers, bearings, and chains.
• Inspection of Hydraulic System: Checking for leaks and ensuring hydraulic oils are at the correct level.
• Roller Maintenance: Inspecting rollers for wear and replacing them if they show signs of damage.
• Electrical Inspection: Checking the PLC and electrical wiring to ensure there are no faults.

Question and Answer Section

Q1: What materials are used to make guardrails on this machine?

Guardrails are typically made from galvanized steel or stainless steel, as these materials offer high strength and resistance to corrosion, which is essential for outdoor use.

Q2: What profile types can this machine produce?

The machine can produce W-beam and Thrie-beam profiles, which are the two most common types of guardrails. W-beams are standard on most highways, while Thrie-beams are used for locations needing extra impact resistance.

Q3: What is the maximum production speed of this machine?

The production speed ranges between 10-20 meters per minute, though this may vary depending on the thickness of the steel and the complexity of the guardrail profile.

Q4: How accurate is the hole punching system?

The hydraulic punching system offers high accuracy, with hole placement accuracy within ±1 mm, ensuring the guardrails meet installation requirements.

Q5: What is the power requirement for this machine?

Most guardrail roll forming machines require a three-phase power supply, with motor requirements around 15-25 kW depending on the model.

Q6: Is it possible to operate this machine remotely?

Yes, with an optional remote PLC system, operators can control and monitor the machine’s performance from a remote location, enhancing flexibility and safety.

Q7: How often should the machine undergo maintenance?

It’s recommended to perform daily inspections and cleaning, with a comprehensive maintenance check every month or as per the machine’s usage. Regular maintenance extends machine life and ensures consistent product quality.

Q8: What are the safety features of the guardrail roll forming machine?

The machine is equipped with safety guards and enclosures to protect operators. Additionally, emergency stop buttons and automatic shutdown features help prevent accidents.

Q9: Can this machine be customized?

Yes, guardrail roll forming machines can often be customized based on specific production requirements, such as different profile widths, hole patterns, or additional automated stackers and uncoilers.

Q10: What are the main markets for guardrail roll forming machines?

The primary markets include transportation departments, road construction companies, and civil engineering firms. The demand for guardrails is particularly high in areas with developing infrastructure and expanding highway networks.
