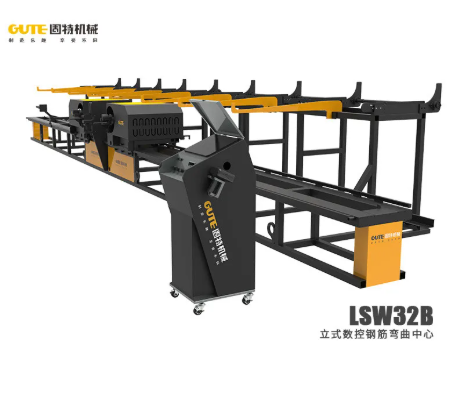

GUTE Double Head CNC Stirrup Bender 18KW — New | GUTE, Chengdu, China

The GUTE Double Head 18KW CNC Stirrup Bender is a vertical CNC steel bar bending center designed for high-speed rail, road and bridge, housing construction, subway, and other large-scale infrastructure projects. The machine processes rebar from 10mm to 32mm in diameter, capable of producing a wide variety of shapes using PLC control, with machining accuracy controlled within ±2mm.

Intelligent numerical control operation reduces both labor intensity and labor cost compared to manual bending. The machine can store up to 100 shapes, which can be recalled directly during processing — removing the need to reprogram common shapes repeatedly. An innovative fixture design also makes bending horseshoe-shaped bars significantly more convenient than on conventional bending machines.

Why Choose a CNC Stirrup Bender?

Manually bending rebar stirrups is labor-intensive, inconsistent, and slow at scale — particularly for large infrastructure projects requiring thousands of identical stirrup shapes. The GUTE Double Head CNC Stirrup Bender solves this with dual servo-controlled bending heads, rack-drive precision, and stored-shape memory, allowing operators to switch between up to 100 pre-programmed shapes without manual resetting.

The all-steel welded box body construction ensures the machine stays accurate and won't deform over its working life, while servo control of both bending angle and machine head movement ensures consistent, repeatable forming accuracy across every piece produced.

Machine Specifications

• Rated power: 18KW
• Air source working pressure: 0.8MPa
• Maximum bending angle: -120° to 180°
• Maximum bending length: 10m
• Minimum curved edge spacing: 390mm
• Machine head movement speed: 0.5–1 m/sec
• Fastest bending speed: 72°/sec
• Total weight: 4T
• Average power consumption: 5KW/H
• Dimensions (L×W×H): 12m × 2m × 1.5m
• Voltage: 380V/420V/440V
• Movement control: Servo
• Bending control: Servo
• Power source: Pneumatic

Rebar diameter capacity (mm) and simultaneous processing quantity:

• 10mm: 7 bars
• 12mm: 6 bars
• 14mm: 5 bars
• 16mm: 4 bars
• 20mm: 3 bars
• 22mm: 2 bars
• 25mm: 1 bar
• 28mm: 1 bar
• 32mm: 1 bar

Model: LSW-32B
Brand: GUTE
Certification: CE, ISO 9001:2000
Condition Available: New

Key Features

• All-steel welded box body — strong, durable, will not deform over its working life
• Rack drive system ensures accurate, consistent product sizing
• Servo-controlled bending and machine head movement for precise angle and forming accuracy
• Stores up to 100 shapes for quick recall during production
• Innovative fixture design for easier horseshoe bar bending
• Machining accuracy within ±2mm

Applications

• High-speed rail construction
• Road and bridge construction
• Housing and building construction
• Subway and metro infrastructure projects
• General reinforced concrete construction

Who This Machine Is For

• Rebar processing and fabrication companies
• Construction contractors handling high-volume stirrup production
• Infrastructure project suppliers (rail, road, bridge, subway)
• Precast concrete manufacturers

Frequently Asked Questions

What rebar sizes can this machine process?
The machine processes rebar from 10mm to 32mm in diameter, with the number of bars processed simultaneously decreasing as diameter increases (from 7 bars at 10mm down to 1 bar at 32mm).

How accurate is the bending?
Machining accuracy is controlled within ±2mm, with both bending angle and machine head movement controlled by servo motors for consistent, repeatable results.

Can this machine store multiple bending shapes?
Yes. The machine can store up to 100 shapes, which can be recalled directly during processing without needing to reprogram each time.

What makes this machine suited to horseshoe bar bending?
An innovative fixture design specifically simplifies the process of bending horseshoe-shaped bars compared to conventional bending machines.

What power supply does this machine need?
The machine operates on 380V/420V/440V voltage with an 18KW rated power draw, plus a pneumatic air supply at 0.8MPa working pressure.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This model is available new, backed by CE and ISO 9001:2000 certification.
