Gutter Roll Forming Machine Germany

Gutter roll forming machines are specialized equipment designed to produce continuous lengths of gutters used in roofing and drainage systems. These machines are integral for manufacturing seamless gutters, offering precision, speed, and customization capabilities that cater to various building needs. In Germany, where high standards for construction materials are prevalent, gutter roll forming machines are essential for achieving both functional and aesthetically pleasing drainage solutions.

Description of Gutter Roll Forming Machines

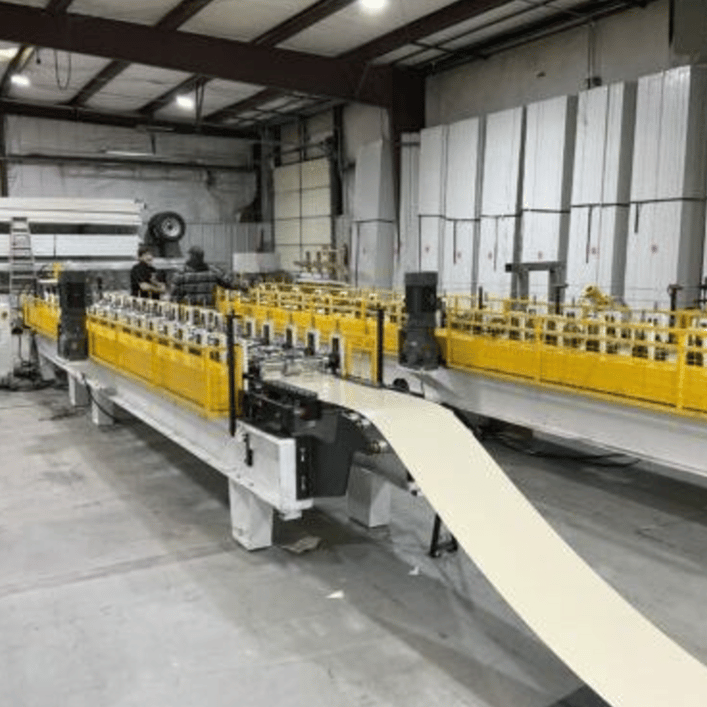

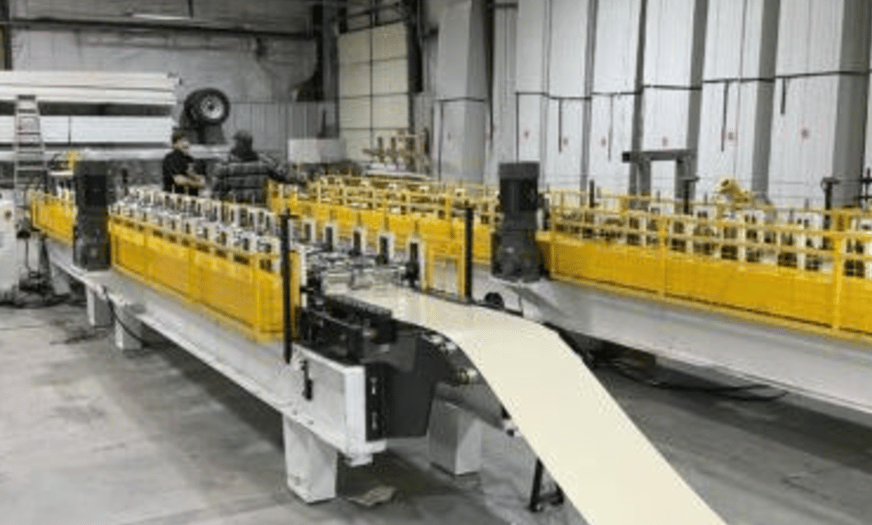

A gutter roll forming machine is an advanced metalworking machine that converts flat metal coils into gutter profiles. The machine typically includes a decoiler, a roll-forming system, a cutting mechanism, and an output table. It ensures seamless production, reducing the need for welding and assembly. German manufacturers and users demand machines with high precision, energy efficiency, and robust build quality to align with local standards and environmental regulations.

Specifications of Gutter Roll Forming Machines

Core Features

• Roller Materials: Hardened steel or chrome-coated rollers for durability and precision.
• Frame Structure: Heavy-duty steel frame for vibration-free operation.
• Motor Type: High-efficiency motors, often servo or AC motors.
• Control System: Programmable Logic Controller (PLC) with touch screen for easy operation.

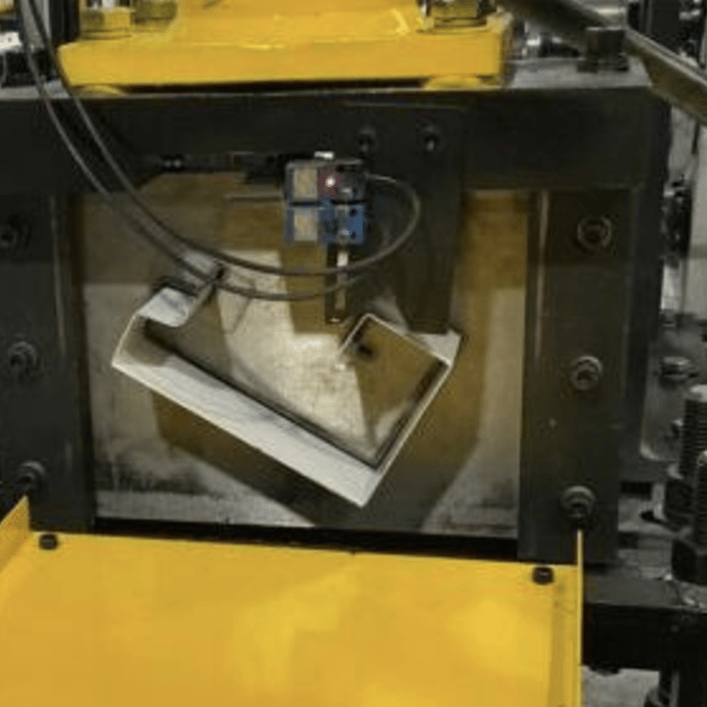

• Cutting System: Hydraulic or pneumatic cutting system for clean and accurate cuts.
• Machine Speed: Typically ranges from 10-20 meters per minute, depending on the profile complexity.
• Safety Features: Emergency stops, safety guards, and enclosures to protect operators.

Technical Specifications

1. Profile Type: Half-round, K-style, or box gutters.
2. Material Thickness: 0.5 mm to 1.2 mm (steel, aluminum, or copper).
3. Material Width: 300 mm to 600 mm.
4. Power Supply: 380V/50Hz (adapted for Germany’s power grid standards).
5. Length Accuracy: ±1 mm.
6. Cutting System: Hydraulic with hardened steel blades.
7. Coil Capacity: Supports up to 5-ton coils.

Applications

• Residential Buildings: For water drainage systems in homes.
• Commercial Buildings: To meet high-volume gutter requirements for offices, malls, and warehouses.
• Industrial Facilities: Customized solutions for factories and large industrial complexes.

Optional Features

• Remote PLC system for monitoring and operation.
• Coil car or hydraulic uncoilers for heavy-duty coil handling.
• Custom tooling for non-standard profiles.
• Integrated gutter punching systems for outlet holes.
• Automated stacker systems for easier collection of finished products.

Advantages of Gutter Roll Forming Machines

1. Efficiency: Produces gutters at high speed without compromising quality.
2. Customization: Ability to produce different styles and sizes to meet German market demands.
3. Durability: Designed for long-term usage with minimal maintenance.
4. Cost-Effectiveness: Reduces material waste and labor costs.

Setup and Maintenance

1. Installation: Ensure a level surface, proper power supply, and adequate space for coil handling and finished product storage.
2. Calibration: Adjust rollers and cutting mechanism for the desired gutter profile.
3. Maintenance Tips:
   • Regular lubrication of moving parts.
   • Cleaning rollers and cutters to prevent debris build-up.
   • Periodic inspection of electrical systems and hydraulic lines.

Q&A Section

1. What materials can be used with a gutter roll forming machine?

These machines commonly process materials like galvanized steel, aluminum, copper, and coated steel. The choice depends on the project requirements and durability needed.

2. Can the machine produce multiple gutter profiles?

Yes, with interchangeable rollers or custom tooling, the machine can produce different profiles, such as K-style, half-round, and box gutters.

3. Is it suitable for small-scale businesses in Germany?

Absolutely. Compact models are available for small businesses, while industrial-grade machines cater to high-volume production.

4. What is the average production speed?

Most machines operate at 10-20 meters per minute, ensuring both efficiency and precision.

5. Are German power supply standards compatible with these machines?

Yes, machines are typically designed to operate on Germany’s 380V/50Hz power grid.

6. What maintenance is required for optimal performance?

Regular lubrication, cleaning, and inspection of rollers, hydraulic lines, and cutting systems are necessary. Keeping the PLC software updated also helps in maintaining efficiency.

7. What safety features are included?

Most machines have safety guards, emergency stop buttons, and enclosed systems to ensure operator safety.

8. Can the machine handle custom orders?

Yes, these machines can be configured with custom tooling for unique profiles and specifications.
