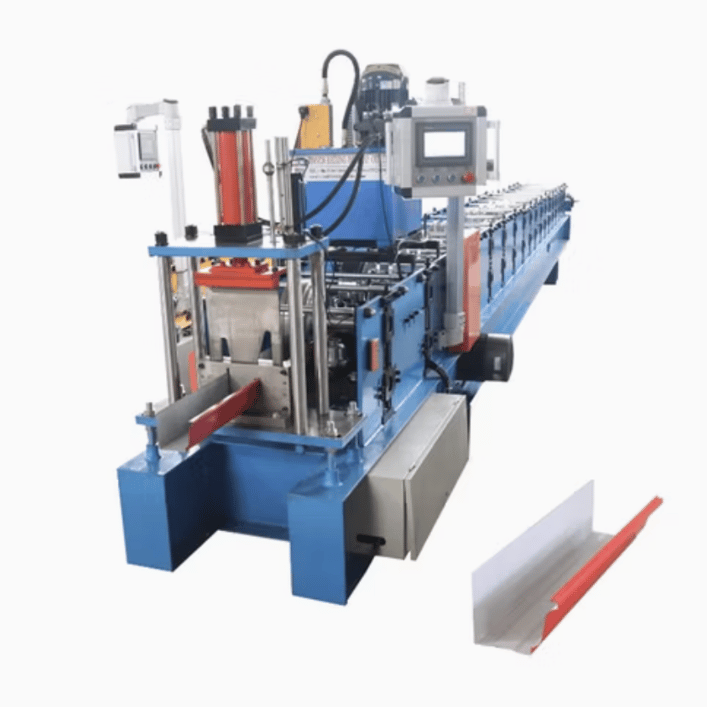

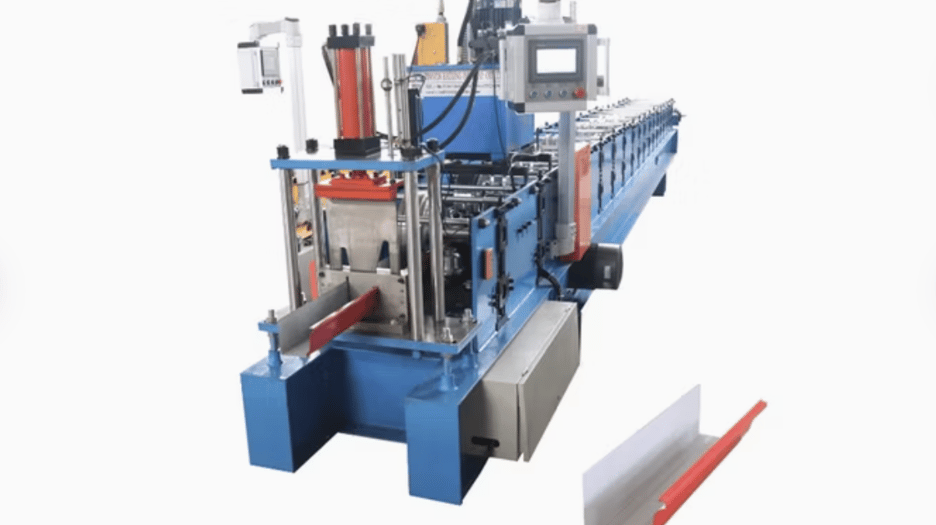

Gutter Roll Forming Machine in Kazakhstan

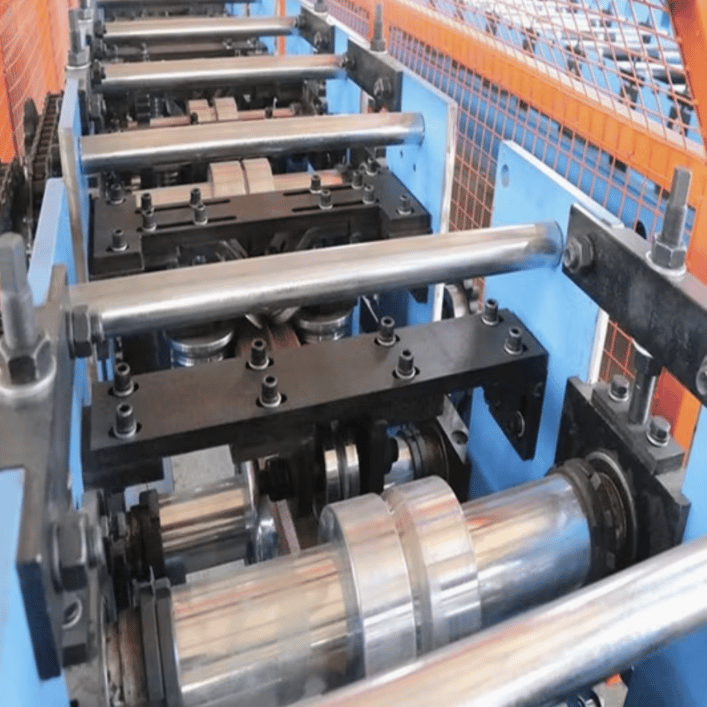

A gutter roll forming machine typically processes coil materials such as galvanized steel, aluminum, and copper to create gutters of different shapes and sizes. The machine is equipped with a series of roller stations that progressively bend and form the flat metal sheet into a precise gutter profile. Advanced models often come with automated controls, high-speed motors, and precise cutting mechanisms, allowing for enhanced productivity and lower labor requirements.

Key Specifications

• Material Compatibility: Galvanized steel, aluminum, copper, and other metals suitable for gutters
• Roller Materials: High-grade steel with hard chrome plating for durability and corrosion resistance
• Forming Stations: 10 to 18 stations depending on the gutter profile requirements
• Thickness Range: 0.5mm to 1.5mm, adjustable based on material
• Gutter Profiles: K-style, half-round, box, seamless, and custom shapes as required
• Forming Speed: 10-20 meters per minute, with speed controls in advanced models
• Cutting System: Hydraulic or servo motor-driven cutting mechanism for precision cutting
• Drive System: Chain or gear-driven, depending on the model and desired strength
• Motor Power: 5-10 kW depending on production capacity
• PLC Control System: Touchscreen interface for easy programming, monitoring, and error diagnosis
• Machine Dimensions: Varies by model, generally around 6-8 meters in length
• Weight: 5,000 - 10,000 kg depending on machine structure and capacity
• Safety Features: Safety guards, emergency stop buttons, and overload protection

Profile Description

Gutter roll forming machines can create several types of gutter profiles based on the regional demand and architectural style. Common profiles include:

• K-Style: Widely used in residential applications for its effective water handling.
• Half-Round: Ideal for traditional or historic homes, offering a smoother flow due to its rounded shape.
• Box Gutters: Suitable for commercial buildings, box gutters provide a larger capacity for handling rainfall.
• Seamless Gutters: Used for long-lasting, leak-resistant systems often used in high-end applications.

Optional Extras

• Decoilers and Recoilers: For handling larger coils and managing finished products.
• Hydraulic Coil Car: Assists in loading heavy coils onto the decoiler.
• Automatic Stacker: Automates the stacking of finished gutters for organized output.
• Punching System: Allows for holes or slots to be added for installation purposes.
• Leveling System: Ensures precise alignment of metal sheets before they enter the forming section.
• Remote PLC Systems: Enables monitoring and troubleshooting remotely, improving productivity.

Setup and Installation

Setting up a gutter roll forming machine involves placing it on a solid foundation, connecting it to a stable power source, and calibrating it to the desired gutter profile. Initial setup includes adjusting roller stations and checking the feeding mechanism for accuracy. After installation, test runs are typically performed to ensure the machine produces precise gutters.

Maintenance Requirements

Routine maintenance is essential to extend the life of a gutter roll forming machine. Regular lubrication of rollers, checking the alignment of stations, and ensuring the PLC system is free from dust or debris will enhance machine performance. Periodic inspections and preventive maintenance of the hydraulic and electrical components are recommended to avoid unexpected downtime.

Question and Answer Section

Q1: What types of materials can be used with a gutter roll forming machine?

A1: Gutter roll forming machines can process a variety of materials, including galvanized steel, aluminum, and copper. The choice of material depends on the climate, building style, and durability requirements of the gutter.

Q2: Can the machine produce different styles of gutters?

A2: Yes, most gutter roll forming machines can be adjusted to produce different styles, such as K-style, half-round, and box gutters. The machine’s forming stations can be calibrated to achieve the desired profile.

Q3: How does the hydraulic cutting system work in gutter roll forming machines?

A3: The hydraulic cutting system is synchronized with the forming rollers. Once the desired length of the gutter is reached, the hydraulic system activates and cuts the metal precisely, ensuring each gutter section is uniform.

Q4: What is the typical forming speed of a gutter roll forming machine?

A4: Gutter roll forming machines typically operate at speeds ranging from 10 to 20 meters per minute. Some advanced models may have speed controls to adjust the output rate based on production needs.

Q5: Is special training required to operate this machine?

A5: Basic training is generally sufficient to operate a gutter roll forming machine, especially for models with a PLC control system. Operators should understand safety protocols and machine calibration processes.

Q6: What maintenance is required for this machine?

A6: Regular maintenance includes lubricating the rollers, checking alignment, and cleaning the machine to prevent dust buildup. Hydraulic and electrical components should also be inspected periodically to ensure smooth operation.

Q7: How does a PLC system benefit a gutter roll forming machine?

A7: The PLC system allows operators to control various aspects of production, such as length, speed, and cutting accuracy, through a user-friendly interface. It also offers diagnostics, which helps in troubleshooting and enhances machine efficiency.

Q8: Can a gutter roll forming machine be customized?

A8: Yes, manufacturers often provide customization options to meet specific profile requirements or add features like punching or embossing systems to create unique gutter designs.
