PUTAI Gypsum Board Ceiling Bar Roll Forming Machine – Cassette Keel Production Line

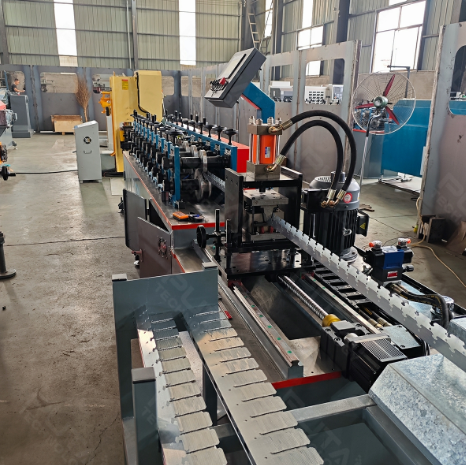

The PUTAI gypsum board ceiling bar roll forming machine produces cassette keels, the steel main bars that carry plasterboard and panel ceilings. Hung from the floor slab above and fixed with screws and hangers, the cassette keel links the ceiling framework together and holds it stable and level. The machine forms 0.8 mm steel through 10 stations at up to 40 m/min, driven by a 12.5 kW motor and controlled by a PLC, giving ceiling component manufacturers a fast, dependable supply of main bars for dry-hung ceiling systems.

What Is a Cassette Keel?

• A steel main bar used as the primary support in suspended plasterboard and panel ceilings
• Connected to the structure above with hangers and screws
• Uses a hook-and-slot system so secondary members lock in securely
• Stabilises the whole ceiling grid and keeps it level
• Widely used in dry-hung ceiling installations in homes, offices and commercial buildings

Key Features

• Dedicated line for cassette keel ceiling bars
• High output of up to 40 m/min
• 10 forming stations with forged Cr12 rollers
• 12.5 kW main motor with gear drive
• PLC control for easy length and batch setting
• Punching dies designed and made in PUTAI's own mould processing centre
• Robust middle plate frame built to withstand forming forces and adjust for different profile sizes

Technical Specifications

• Product: Cassette keel, gypsum board ceiling main bar
• Material: Steel coil
• Material thickness: 0.8 mm
• Forming stations: 10
• Roller material: Cr12 (D3), forged
• Shaft: 50 mm, 45# steel, forged
• Speed: Up to 40 m/min
• Transmission: Gear drive
• Main motor power: 12.5 kW
• Control system: PLC
• Machine weight: Approx. 3,000 kg

Why PUTAI's Tooling Stands Out

• In-house mould making: PUTAI designs and machines its own punching moulds and roller tooling on high-precision equipment
• Dedicated R&D team: Tooling is developed in-house rather than outsourced
• Faster custom work: Profiles and punching patterns can be tailored to your ceiling system

Applications

• Gypsum board (plasterboard) suspended ceilings
• PVC and composite panel ceilings
• Residential, office and commercial interiors
• Hotels, schools and public buildings

Related PUTAI Ceiling Machines

• Cassette suspended ceiling bar roll forming machine, for clip-in metal ceilings
• Ceiling T grid roll forming machine, for lay-in tile ceilings
• Furring channel and omega profile roll forming machines

Commercial Details

• Brand: PUTAI Technology
• Company: Tianjin PUTAI Technology Co., Ltd
• Factory: Bazhou, Hebei, China
• Minimum order: 1 set
• Colour: Customised
• Packing: Plastic film wrap for export
• Delivery time: 60 days
• After-sales: Engineer support provided

Frequently Asked Questions

• Where is this machine made? At PUTAI's factory in Bazhou, Hebei, China. The company office is in Tianjin, and machines are exported worldwide.
• What is a cassette keel used for? It's the main support bar in a suspended plasterboard or panel ceiling, fixed to the structure above and holding the ceiling grid stable and level.
• What thickness does the machine form? 0.8 mm steel.
• How fast does it run? Up to 40 m/min.
• Does PUTAI make its own tooling? Yes. PUTAI designs and machines its punching moulds and rollers in its own mould processing centre.
• How long is delivery? Around 60 days.
• What should I send for a quotation? Your cassette keel profile drawing or sample, slot pattern, thickness, target output, and local voltage and frequency.
