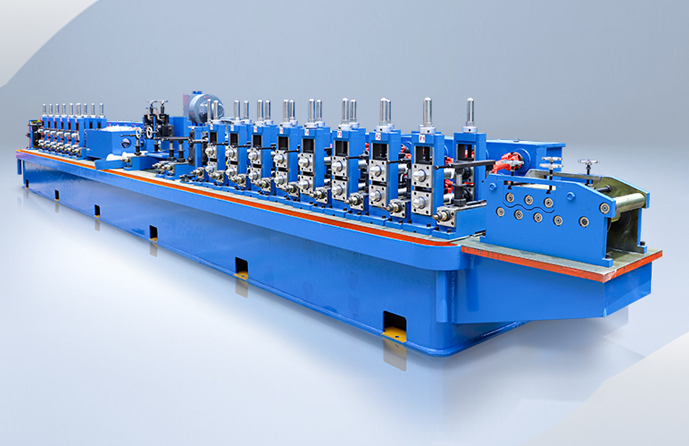

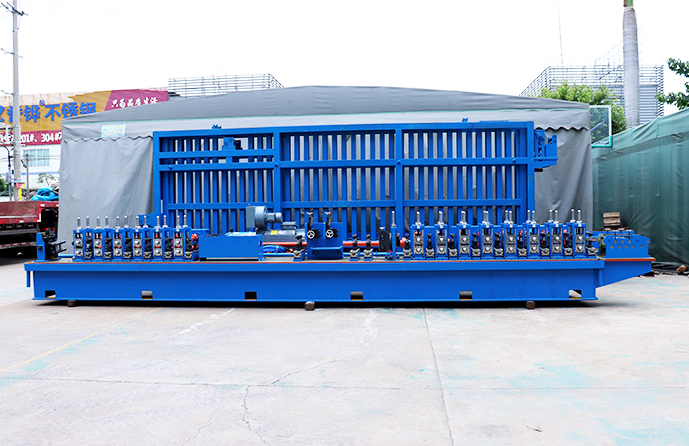

HF28 ERW High Frequency Tube Mill (8-50.8mm, up to 120 m/min) | Kingtech, Foshan, China

The HF28 is a high-frequency ERW (electric resistance welded) tube mill for producing small-diameter steel tube. It makes round tube from 8mm to 50.8mm in diameter, with wall thicknesses of 0.3 to 1.8mm, and square tube from 10 × 10mm to 40 × 40mm, with wall thicknesses of 0.3 to 1.5mm. Production speed runs from 20 to 120m/min.

The mill works by forming steel strip into a tube shape through a series of rolling moulds. High-frequency current then heats the strip edges, using the proximity effect and skin effect, and the two edges are pressed together by squeeze rolls to form the weld. The tube is cooled in a water tank, then sized and straightened to the required dimensions.

The complete line runs from raw material feeding through to cutting and collecting the finished tube. Production speed can be varied according to tube size. It runs hot or cold rolled carbon steel strip in grades such as Q195, Q235, and 16Mn.

Why Choose the HF28?

Small-diameter tube is made in very large volumes, and speed and cost per metre are what matter. The HF28 sits at the fast end of Kingtech's range.

• High speed. Up to 120m/min, the fastest of Kingtech's mills we've listed.
• Small and thin tube. Diameters from 8mm and walls as thin as 0.3mm suit light-gauge tube.
• Low running cost. Kingtech highlights production cost minimisation and cost-effectiveness among the mill's features.
• Long service life. Kingtech says the mill lasts more than 20 years.
• Complete line. Uncoiler, cutter, accumulator, mill, saw, and unloading platform come as a set.

Machine Specifications

• Model: HF28
• Round pipe diameter: 8mm to 50.8mm
• Round pipe wall thickness: 0.3mm to 1.8mm
• Square pipe size: 10 × 10mm to 40 × 40mm
• Square pipe wall thickness: 0.3mm to 1.5mm
• Production speed: 20 to 120m/min
• Main motor power: 90kW
• High frequency power: 100kW
• Material: hot or cold rolled carbon steel strip (Q195, Q235, 16Mn)

Machine configuration

• Double-side uncoiler
• Steel strip cutter
• Material accumulator (vertical or horizontal type)

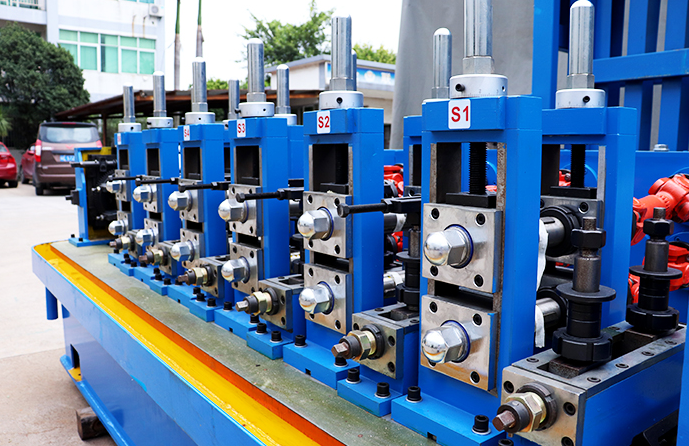

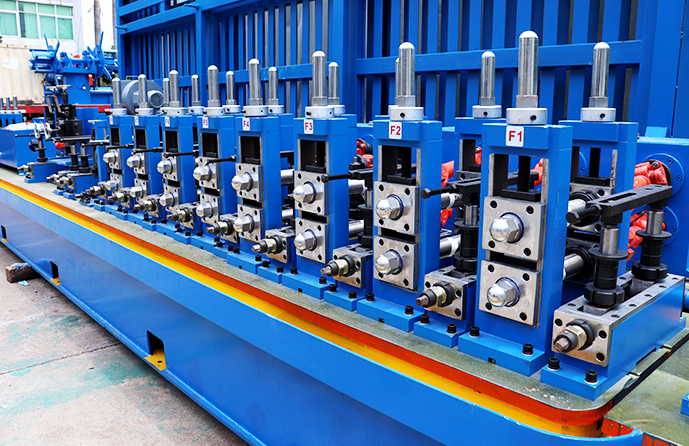

• Forming and sizing machine
• Pipe cutting saw (cold cutting or friction cutting)
• Pipe unloading platform
• Rolling moulds
• High frequency appliances

Condition Available: New

Key Features

• High-frequency ERW welding using proximity and skin effect
• Speeds of 20 to 120m/min
• Round tube from 8 to 50.8mm and square tube up to 40 × 40mm
• Runs Q195, Q235, and 16Mn carbon steel strip
• Complete line from uncoiler to unloading platform
• High precision and stable production
• Long service life (Kingtech states more than 20 years)

Applications

• Small-diameter round and square steel tube production
• Light-gauge tube for the industries Kingtech lists, including furniture, handrail, building construction, greenhouse, irrigation, and exhaust systems

Who This Machine Is For

• Steel tube manufacturers producing small-diameter and thin-wall tube
• Furniture and light structural tube makers
• Producers who want a high-speed, cost-efficient mill for standard tube

Frequently Asked Questions

What sizes of tube can it make?
Round tube from 8mm to 50.8mm (0.3 to 1.8mm wall) and square tube from 10 × 10mm to 40 × 40mm (0.3 to 1.5mm wall).

How fast does it run?
Between 20 and 120m/min, depending on the tube size.

What steel can it use?
Hot or cold rolled carbon steel strip such as Q195, Q235, and 16Mn.

How is the tube welded?
The strip is formed through rolling moulds and heated by high-frequency current, and the edges are pressed together to weld. The tube is then cooled, sized, and straightened.

How does it compare with Kingtech's other mills?
The HF28 handles the smallest tube and runs fastest (up to 120m/min). The HF50 (19 to 76mm, up to 100m/min) is aimed at scaffolding tube, and the HF76K127 (48 to 127mm, up to 90m/min) handles larger structural pipe.

What is included in the line?
A double-side uncoiler, strip cutter, accumulator, forming and sizing machine, cutting saw (cold or friction), unloading platform, rolling moulds, and high frequency appliances.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This model is available new, built to your tube specification.
