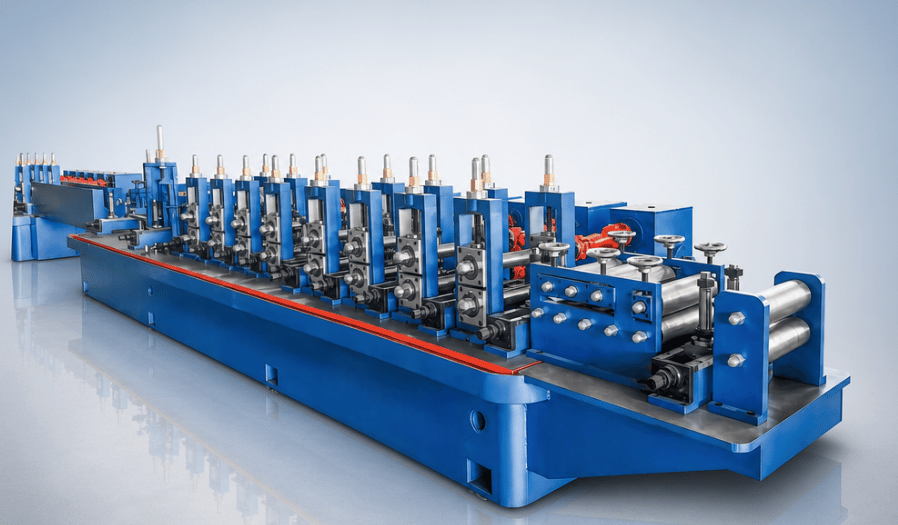

HF32 ERW High Frequency Welding Pipe Production Line (15-65mm) | Kingtech, Foshan, China

The HF32 is a high-frequency ERW (electric resistance welded) pipe production line for small to medium-diameter pipe. It makes round pipe from 15mm to 65mm in diameter, with wall thicknesses of 0.5 to 2.5mm. It also makes square pipe from 20 × 20mm to 50.8 × 50.8mm (walls 0.5 to 2.0mm) and rectangular pipe from 10 × 30mm to 40 × 60mm. Production speed runs from 20 to 100m/min.

The line forms steel strip into a pipe shape through rolling moulds. High-frequency current then heats the strip edges, using the proximity effect and skin effect, and the edges are pressed together to form the weld. The pipe is cooled with water and finished through sizing and straightening moulds. The complete line runs from raw material feeding through to cutting and collecting the finished pipe, and speed can be adjusted to suit pipe size.

It runs carbon steel coil, galvanised steel coil, and other hot or cold rolled steel coil.

Why Choose the HF32?

The HF32 gives you a wider size range and more welding power than a small-tube mill, while keeping high speed.

• Broad size range. Round pipe from 15 to 65mm, plus square and rectangular sections, on one line.
• Higher power. A 132kW main motor and 150kW of high-frequency power support thicker walls (up to 2.5mm) than the smaller HF28.
• Fast. Speeds of up to 100m/min.
• Coil flexibility. Runs carbon steel, galvanised, and other hot or cold rolled coil.
• Complete line. Uncoiler, cutter, accumulator, mill, saw, and unloading platform are supplied together.
• Long service life. Kingtech states more than 20 years, along with stable production, high precision, and a wide range of applications.

Machine Specifications

• Model: HF32
• Round pipe diameter: 15mm to 65mm
• Round pipe wall thickness: 0.5mm to 2.5mm
• Square pipe size: 20 × 20mm to 50.8 × 50.8mm
• Rectangular pipe size: 10 × 30mm to 40 × 60mm
• Square pipe wall thickness: 0.5mm to 2.0mm
• Production speed: 20 to 100m/min
• Main motor power: 132kW
• High frequency power: 150kW
• Material: carbon steel coil, galvanised steel coil, other hot or cold rolled steel coil

Machine configuration

• Double-side uncoiler
• Steel strip cutter
• Vertical material accumulator
• Forming and sizing machine
• Pipe cutting saw (cold cutting or friction cutting)
• Pipe unloading platform
• Rolling moulds
• High frequency appliances

Stated delivery time: 60 to 70 days for the HF16 to HF32 range (per Kingtech's website)
Condition Available: New

Key Features

• High-frequency ERW welding using proximity and skin effect
• 15 to 65mm round pipe, plus square and rectangular sections
• Speeds of 20 to 100m/min
• 132kW main motor and 150kW high-frequency power
• Runs carbon, galvanised, and other hot or cold rolled coil
• Complete line from uncoiler to unloading platform
• Fast production, stable operation, and high precision

Applications

• Small to medium-diameter round, square, and rectangular steel pipe
• Pipe for the industries Kingtech lists across its range, including furniture, handrail, building construction, greenhouse, irrigation, and exhaust systems

Who This Machine Is For

• Steel pipe manufacturers producing small to medium-diameter pipe
• Producers who want one line to make round, square, and rectangular sections
• Manufacturers stepping up from a smaller tube mill

Frequently Asked Questions

What sizes of pipe can it make?
Round pipe from 15mm to 65mm (0.5 to 2.5mm wall), square pipe from 20 × 20mm to 50.8 × 50.8mm (0.5 to 2.0mm wall), and rectangular pipe from 10 × 30mm to 40 × 60mm.

How fast does it run?
Between 20 and 100m/min, depending on pipe size.

What materials can it run?
Carbon steel coil, galvanised steel coil, and other hot or cold rolled steel coil.

What power does it have?
A 132kW main motor and 150kW of high-frequency power.

How does it compare with Kingtech's other mills?
It sits between the smaller HF28 (8 to 50.8mm, 90kW) and the HF50 (19 to 76mm, 160kW). The HF50 is the one aimed at scaffolding tube.

What is included in the line?
A double-side uncoiler, strip cutter, vertical accumulator, forming and sizing machine, cutting saw (cold or friction), unloading platform, rolling moulds, and high frequency appliances.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This model is available new, built to your pipe specification.
