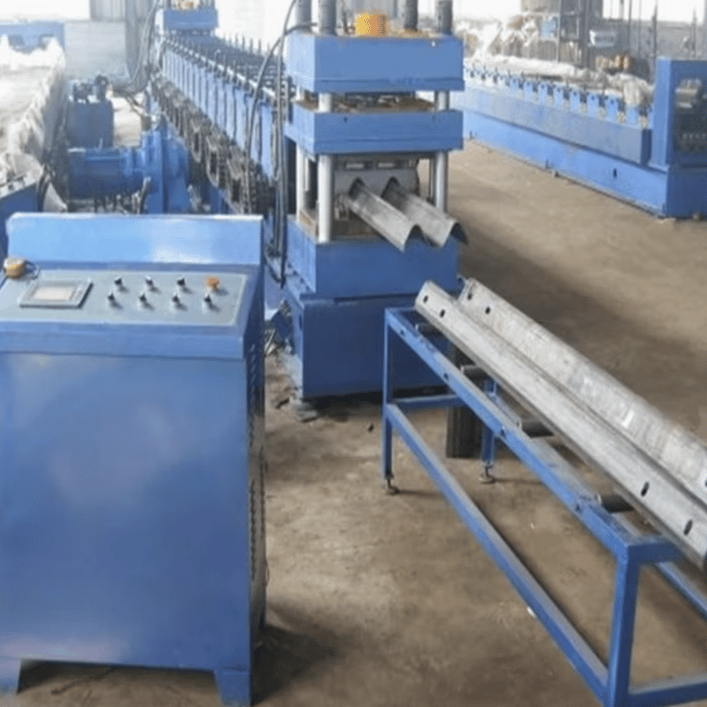

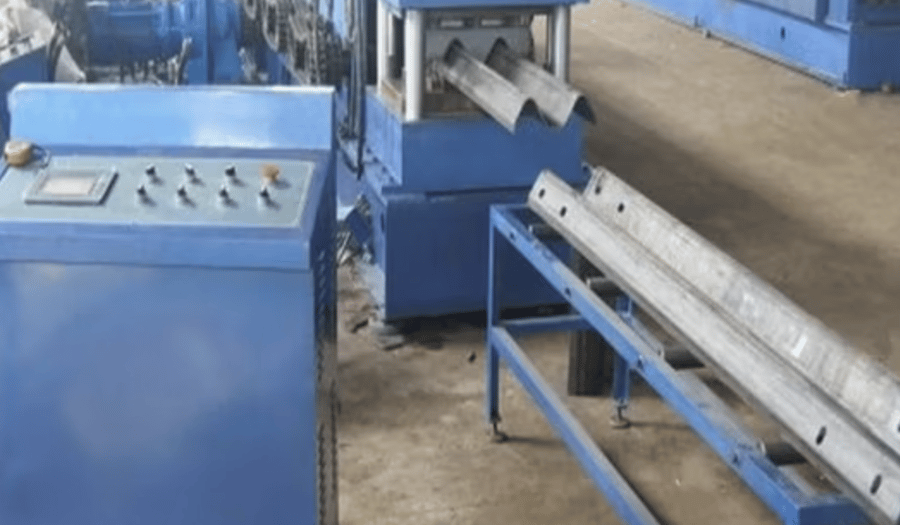

Highway Guardrail Roll Forming Machine Germany

The highway guardrail roll forming machine is a specialized industrial equipment used to manufacture high-quality guardrails commonly seen on highways. These machines are engineered to produce W-beam, Thrie-beam, or other custom guardrail profiles with precision and efficiency. Guardrails serve a critical purpose in road safety, making these machines indispensable in the infrastructure and construction industry.

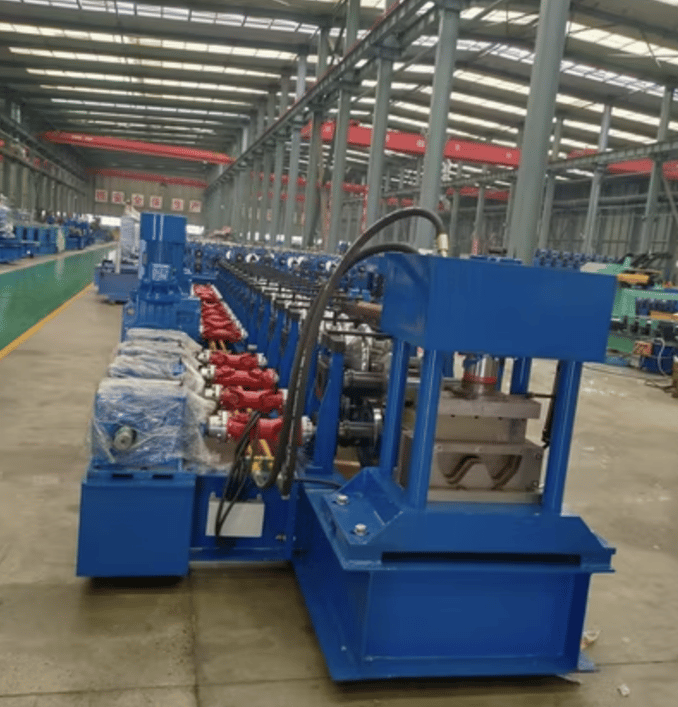

This roll forming equipment operates by feeding steel coils into the machine, which are then processed through a series of rollers to achieve the desired guardrail profile. It incorporates advanced features like hydraulic punching and cutting systems, servo motors, and programmable logic controllers (PLC) for automated, accurate, and consistent production.

Specifications

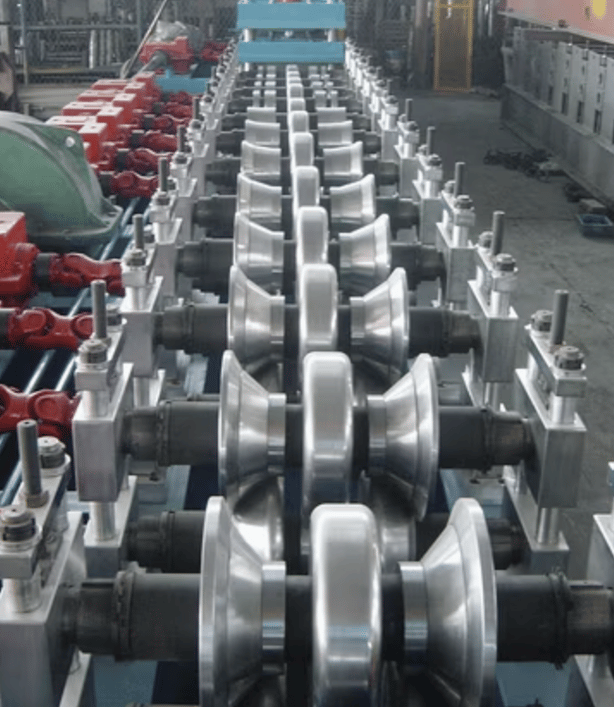

1. Roller Materials: High-grade chrome-coated steel (Cr12Mov) for durability and corrosion resistance.
2. Punching System:
   • Hydraulic punching with precision alignment.
   • Customizable punching dies for different hole patterns.
3. Hydraulic Cutting System:
   • Advanced hydraulic cutting system for precise edge cutting.
   • Material wastage minimized through precision engineering.
4. Motor Type: Servo motors for smooth and energy-efficient operation.
5. Frame Size: Heavy-duty steel frame for machine stability and longevity.
6. Power Requirements:
   • Voltage: 380V/50Hz (customizable for Germany’s power standards).
   • Power Output: 15-20 kW.
7. Machine Speed:
   • Production speed: 10-20 meters per minute (adjustable).
   • Speed depends on punching and profile requirements.
8. Safety Guards and Enclosures: Fully enclosed safety guards to protect operators and ensure workplace safety.
9. Control System:
   • PLC system with touchscreen interface.
   • Multilingual support, including German, for ease of operation.
10. Material Specifications:
    • Material: Galvanized steel, mild steel, or stainless steel.
    • Thickness range: 2.5mm - 4.0mm.
    • Width range: 300mm - 500mm (depending on the guardrail type).

Optional Features

• Stackers: Automatic stacking system to organize finished guardrails.
• Remote PLC Control System: Enables monitoring and operation from remote locations.
• Uncoilers and Recoilers: Support for heavy-duty coils with hydraulic tensioning.
• Coil Car Tippers: For easy loading and unloading of steel coils.

Setup and Installation

1. Pre-installation:
   • Ensure availability of power supply, compressed air, and raw material (steel coils).
   • Prepare foundation and space according to the machine dimensions.
2. Installation:
   • Delivered in pre-assembled modules for easy installation.
   • On-site technician support available for setup and calibration.
3. Testing and Calibration:
   • Test runs performed to ensure alignment, punching accuracy, and profile consistency.
   • Calibration based on specific guardrail dimensions.

Maintenance Requirements

• Regular lubrication of rollers and moving parts.
• Inspection of hydraulic systems for leaks or pressure inconsistencies.
• Cleaning of punching dies and cutting blades after production cycles.
• Periodic software updates for the PLC system.

Popular Guardrail Profiles in Germany

• W-Beam Guardrail: Widely used for highways and crash barriers.
• Thrie-Beam Guardrail: Preferred for high-impact zones.
• Custom Profiles: Designed to meet specific local safety standards.

Question and Answer Section

Q1: Can the machine handle custom guardrail designs?

Yes, the highway guardrail roll forming machine is customizable for various profiles, including unique designs to meet specific German or European safety standards.

Q2: What is the expected production capacity?

The machine can produce 200-300 meters of guardrail per hour, depending on the profile and punching requirements.

Q3: Is the machine compatible with Germany’s power supply standards?

Absolutely. The machine can be customized to operate at 380V/50Hz, which is standard in Germany.

Q4: How durable are the rollers and punching dies?

The rollers and punching dies are made of high-grade materials like Cr12Mov, ensuring durability and longevity even under continuous operation.

Q5: What materials are suitable for production?

The machine supports galvanized steel, mild steel, and stainless steel with a thickness range of 2.5mm to 4.0mm.

Q6: Are installation and training services provided in Germany?

Yes, technicians are available for on-site installation, calibration, and operator training in Germany.

Q7: What is the typical lead time for delivery?

Delivery times vary but typically range from 45 to 60 days, including customization and shipping to Germany.

Q8: Can the machine integrate with other automation systems?

Yes, it supports integration with stackers, coil handling systems, and other automation components for streamlined production.

Q9: What are the maintenance costs?

Maintenance costs are relatively low, requiring standard lubrication, hydraulic oil checks, and occasional part replacements.

Q10: Is it possible to export finished guardrails from Germany to other EU countries?

Yes, the machine produces guardrails that meet international safety standards, making them suitable for export within the EU.
