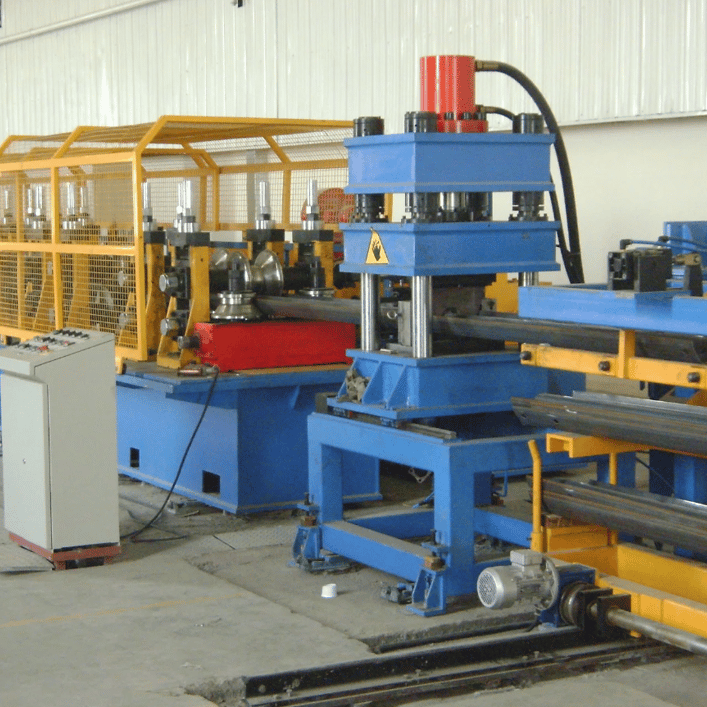

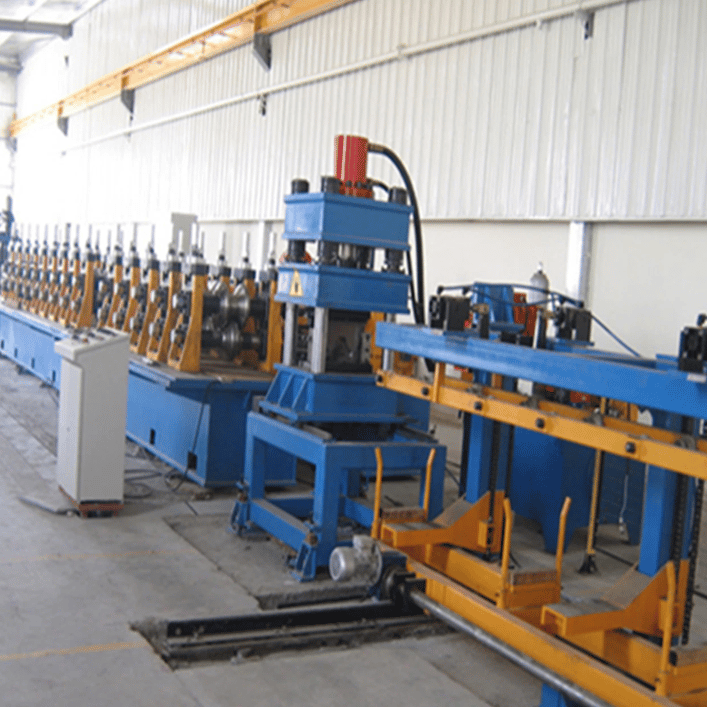

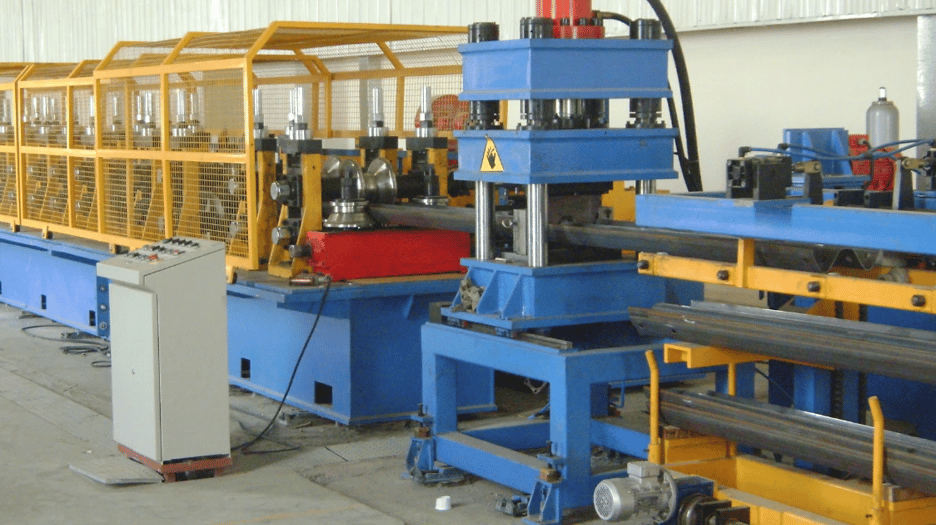

Highway Guardrail Roll Forming Machine in Thailand
- Condition
- New
- Supplier
- Roll Forming Machines Thailand
- Country
- Thailand
- Listing ID
- 8432
Request a Quote
To express an interest in this machine please submit the form below.
Parameter Technical
| Material: | Cold rolled mild steel |
| Raw material yield strength | 235Mpa |
| Tensile strength of raw materials | ≤550Mpa |
| Coils OD | ≤Ф1600 mm |
| Coils ID | Ф508mm |
| Strips width | ≤750mm |
| Strips thickness | 2.3~4mm |
| Coils weight | ≤7000 kg |
| Line speed | 4 pcs/min(for sample Length 4320mm) |
Brand of main electrical components
| Items Name | Brand |
| PLC | Mitsubishi, Japan |
| Servo system | Yaskawa , Japan |
| Inverter | Delta (Taiwan) |
| Touch Screen | Weinview(Taiwan) |
| Low voltage electrical appliances | S chneider (France) |
| DC speed controller | Eurotherm (USA) |
| Encoder | Omron(Japan) |
