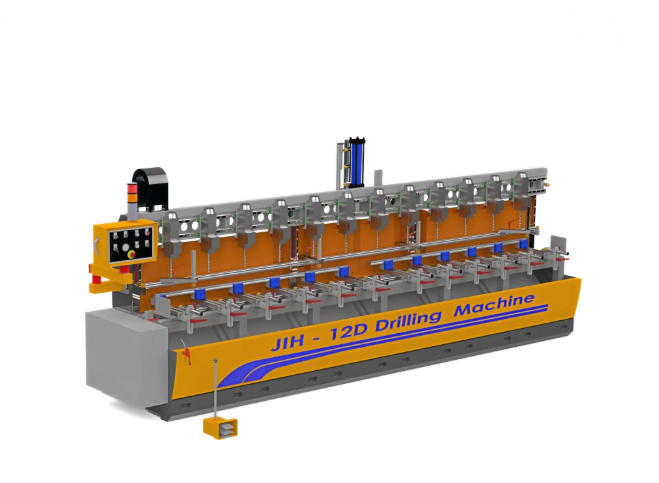

The JIH-12D is a multi-head drilling machine with up to 12 spindles that can drill simultaneously. Each spindle head can be adjusted along the machine, so you can set the hole spacing to match the part, with a minimum spacing of 150mm between spindles. Drilling many holes in a single pass cuts processing time compared with drilling one hole at a time.

Spindle spacing and the X, Y, and Z axis positions are adjusted manually. Optional LCD displays on each head give precise readouts for setting the spindle positions. The machine has built-in lubrication and an automatic oil-spraying system, which improves cutting efficiency and extends tool life.

The X axis stroke is 4.5m as standard, with 6.5m available as an option, and the positioning length can be customised on request. JIH-I describes the machine as suitable for woodworking, metalworking, and other materials, and it lists drilling machines among the equipment for aluminium formwork and aluminium frame systems.

Why Choose a Multi-Head Drilling Machine?

Long profiles such as formwork, frame sections, and structural extrusions often need a whole row of holes at set spacings. Drilling each hole separately, or repositioning a single-spindle drill along the length, is slow and adds spacing errors.

• Up to 12 holes at once. All 12 spindles drill simultaneously.
• Adjustable spacing. Each head can be positioned to suit the hole pattern, down to 150mm between spindles.
• Repeatable. Optional LCD readouts on each head make it easier to set and repeat spindle positions.
• Longer tool life. Built-in lubrication and automatic oil spraying help protect the drills.
• Long profile capacity. A 4.5m X stroke (6.5m optional) covers most profile lengths.

Machine Specifications

• Model: JIH-12D
• Number of drilling heads: 12
• Minimum spacing between spindles: 150mm
• X axis stroke: 4.5m (6.5m optional)
• Y axis stroke: 100mm (200mm when loading material 200mm wide)
• Z axis maximum drilling stroke: 150mm (100mm when loading material 100mm high)
• Spindle speed: 3,500 r.p.m.
• Drilling head motors: 1HP × 12
• Hydraulic motor: 2HP
• Maximum drilling capacity: 10mm
• Processing position range: 295mm to 455mm (material heights of 130mm to 450mm)
• Air pressure: 4 to 6kg/cm²
• Machine dimensions (L × W × H): 5,150 × 1,200 × 2,020mm
• Packing dimensions (L × W × H): 5,250 × 1,350 × 2,120mm
• Net / gross weight: 1,560kg / 1,700kg

Adjustment: manual spindle spacing and manual X, Y, and Z position adjustment (optional LCD displays on each head)
Condition Available: New

JIH-I reserves the right to modify specifications without notice. Positioning length can be customised on request.

Key Features

• Simultaneous drilling from spindle 1 to spindle 12
• Adjustable spindle spacing, minimum 150mm
• Optional LCD displays on each head for accurate spindle positioning
• Manual position adjustment on X, Y, and Z axes
• Built-in lubrication with automatic oil-spraying system
• 4.5m X stroke, with 6.5m optional and other lengths on request

Applications

• Drilling rows of holes in long aluminium profiles and extrusions
• Aluminium formwork and aluminium frame system production
• General drilling of profiles for woodworking, metalworking, and other materials

Who This Machine Is For

• Aluminium formwork and frame manufacturers
• Extrusion processors drilling repeat hole patterns along long profiles
• Workshops that want to cut drilling time with a multi-spindle machine

Frequently Asked Questions

How many holes can it drill at once?
Up to 12, using all 12 spindles simultaneously.

Can the hole spacing be changed?
Yes. Spindle spacing is adjustable, with a minimum of 150mm between spindles. Adjustment is manual, and LCD readouts on each head are optional.

How long a profile can it handle?
The X axis stroke is 4.5m as standard, with 6.5m as an option. Other positioning lengths can be customised on request.

What is the largest hole it can drill?
The maximum drilling capacity is 10mm.

How is it lubricated?
It has built-in lubrication and an automatic oil-spraying system to improve cutting efficiency and extend tool life.

What space does it need?
The machine is 5,150 × 1,200 × 2,020mm and weighs 1,560kg net.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This model is available new, from a manufacturer that has built aluminium processing machinery since 1971.
