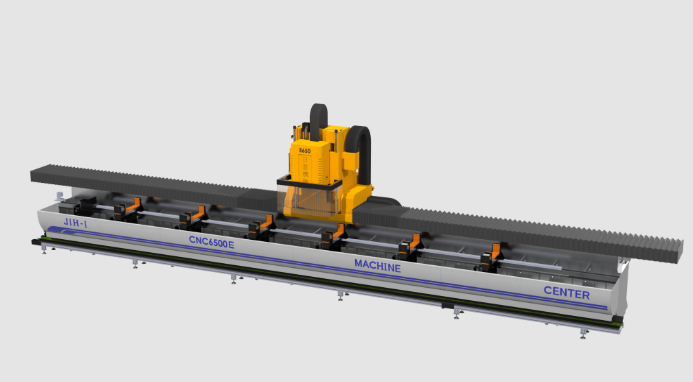

JIH-CNC E Type 3-Axis CNC Machining Center (up to 6,500mm) | JIH-I, Taichung, Taiwan

The JIH-CNC E Type is a 3-axis CNC machining center for long aluminium profiles. It uses a travelling column design, and the X axis stroke is chosen to suit your longest workpiece: 3,500, 4,500, 5,500, or 6,500mm. The table is 300mm wide and uses a vise system (one set per metre) to hold profiles.

The machine is built for speed and profile work. It has an ISO 30 spindle running at up to 18,000 rpm, high-precision linear guideways on all three axes, and Y and Z ball screws directly coupled to the servo motors for efficient, accurate transmission. An 8-tool carousel magazine with bi-directional, random tool selection keeps tool changes fast.

The controller is PC-based, with Mitsubishi, Fanuc, or Siemens controllers available as options. It is a lighter machine than JIH-I's heavy-duty H Type, at 3,500 to 5,500kg, and is aimed at aluminium, plastic, and other non-ferrous materials rather than steel or iron.

Why Choose the E Type?

Not every profile workshop needs a heavy-duty machine that can cut steel. For aluminium door, window, and curtain wall profiles, a faster, lighter machine often makes more sense.

• Fast spindle. 18,000 rpm suits aluminium, where high spindle speed gives a good surface finish.
• Choose your length. Four X-axis options let you buy only the length you need.
• Lower footprint and weight. At 3,500 to 5,500kg and 1,600mm wide, it needs far less floor strength and space than a heavy-duty model.
• Fast rapid traverse. The X axis rapids at 60m/min, which cuts non-cutting time on long profiles.
• Flexible control. PC-based control with Mitsubishi, Fanuc, or Siemens as options.

Machine Specifications

Strokes and table

• X axis stroke: 3,500 / 4,500 / 5,500 / 6,500mm (selectable)
• Y axis stroke: 300mm
• Z axis stroke: 200mm
• Distance from spindle nose to table surface: min. 150mm, max. 350mm
• Table type: vise (1 set per metre)
• Table size: 300 × 3,500 to 6,500mm (depending on X-axis stroke)

Spindle

• Spindle speed: 18,000 r.p.m.
• Spindle motor: 10HP (7.5kW)
• Spindle taper: ISO 30

Feed and accuracy

• Rapid feed rate: X 60m/min, Y 24m/min, Z 24m/min
• Servo motors: 1.3kW on each of the three axes
• Cutting feed rate: 1 to 5,000mm/min
• Repeatability: X ±0.03mm, Y ±0.02mm, Z ±0.02mm

Automatic tool changer

• Magazine: 8-tool carousel
• Tool holder: ISO 30
• Maximum tool diameter: 50mm
• Tool selection: bi-directional and random

Dimensions and requirements

• Required pneumatic pressure: 6kg/cm²
• Machine dimensions (L × W × H): 5,400 to 8,900 × 1,600 × 2,300mm
• Packing dimensions (L × W × H): 5,600 to 9,100 × 1,700 × 2,300mm
• Machine weight: 3,500 to 5,500kg
• Controller: PC-based (Mitsubishi, Fanuc, or Siemens optional)

Condition Available: New

JIH-I reserves the right to modify specifications without notice.

Key Features

• Travelling column design for efficiency and accuracy
• Four X-axis stroke options from 3,500 to 6,500mm
• 18,000 rpm ISO 30 spindle
• High-precision linear guideways on all three axes
• Y and Z axis ball screws directly coupled to servo motors
• 8-tool carousel with bi-directional, random tool selection
• PC-based controller, with Mitsubishi, Fanuc, or Siemens options
• 60m/min X-axis rapid feed

Applicable Materials

• Aluminium
• Plastic
• Other non-ferrous metals

Applications

• Aluminium doors and windows
• Curtain wall (glass wall) profiles
• Extruded aluminium profiles
• Fibreglass

Who This Machine Is For

• Aluminium door, window, and curtain wall fabricators
• Extrusion processors machining long profiles
• Workshops that want a fast, lighter machining center and don't need to machine steel

Frequently Asked Questions

Can it machine steel or cast iron?
No. The E Type is for aluminium, plastic, and other non-ferrous materials. JIH-I's H Type is the model in this range that can also process iron.

What X-axis lengths are available?
3,500, 4,500, 5,500, or 6,500mm.

How fast is the spindle?
Up to 18,000 rpm, with a 10HP (7.5kW) motor and an ISO 30 taper.

How many tools does it hold?
Eight, in a carousel magazine with bi-directional, random tool selection. The maximum tool diameter is 50mm.

What controllers are available?
PC-based control as standard, with Mitsubishi, Fanuc, or Siemens optional.

How does it compare to the H Type?
The E Type is lighter (3,500 to 5,500kg against 15,000 to 21,000kg), has a faster spindle (18,000 rpm against 12,000), and has a smaller tool magazine (8 against 24 tools). The H Type offers larger strokes, a heavier build, and steel and iron capability.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This model is available new, from a manufacturer that has built aluminium processing machinery since 1971.
