KR-LMJG 20kW Fiber Laser Cutting Machine for Plates & H-Beams | Kasry, Dezhou, China

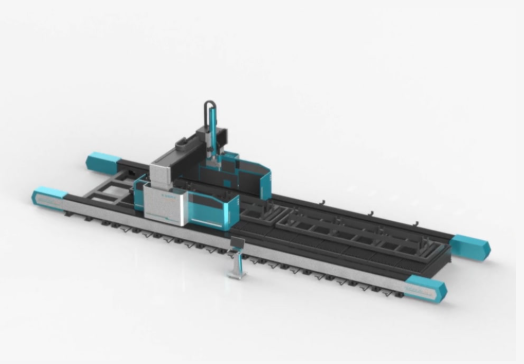

The KR-LMJG is a gantry-type fiber laser cutting machine built for steel structure fabricators. It is a "composite" machine, meaning it can cut both flat steel plate and structural profiles such as H-beams, I-beams, and channels on the same machine. Perforation cutting handles material from 1mm to 30mm thick, with a 20,000W (20kW) laser and cutting accuracy of 0.05mm.

It can cut, pierce holes, and also letter and mark parts, so cut pieces come off the machine already identified. Bevel cutting up to ±45° allows weld preparation to be cut directly. Kasry says the cutting process handles all sections of an H-beam, and that this approach is entirely different from a traditional cutting line.

The control system was developed in-house. It imports directly from Tekla models, nests parts automatically, and has a simple, intuitive interface. The gantry structure gives stability on large workpieces, and dual-drive motion gives high speed and better precision.

Two Models

Kasry lists two versions of the machine:

• KR-LMJG-3010: for plates and profiles. It cuts plates up to 3m × 12m (customisable) and profiles. Equipment size is approx. 19 × 7.8 × 4.5m, with a single workstation.
• KR-LMJG-1500: a profile machine with a dual-station arrangement. Equipment size is approx. 33 × 7.8m.

Why Choose a Composite Laser Cutting Machine?

Steel structure shops usually cut plates and profiles on different machines. A composite machine handles both, which saves floor space and capital, and lets a single control system and nesting software cover the whole job.

• Plate and profile on one machine. Fewer machines to buy, house, and maintain.
• Direct from Tekla. Import models and nest automatically, without re-drawing parts.
• Bevel cutting. Cut weld preparation angles up to ±45°.
• Marking. Lettering and marking as part of the same operation.
• High-power fiber laser. 20kW cuts up to 30mm.

Machine Specifications

Common to both models

• Cutting mode: fiber laser
• Laser power: 20,000W (20kW)
• Perforation cutting thickness: 1mm to 30mm
• Bevel cutting: ±45°
• Cutting accuracy: 0.05mm
• Functions: cutting, hole cutting, lettering, and marking
• Suitable profiles: H-beam, I-beam, channel steel, and other sections

KR-LMJG-3010

• Workpieces: plates and profiles
• Plate processing range: 3m × 12m (customisable)
• Profile processing range: 100 × 200mm to 500 × 1,000mm (see notes)
• Workstation: single
• Equipment size: approx. 19 × 7.8 × 4.5m

KR-LMJG-1500

• Workpieces: profiles
• Profile processing range: 100 × 200mm to 600 × 1,500mm
• Workstation: dual station
• Equipment size: approx. 33 × 7.8m

Control: in-house control system with direct Tekla model import and automatic nesting

Condition Available: New

Key Features

• Cuts both plates and structural profiles on one machine
• 20kW fiber laser for cutting up to 30mm
• ±45° bevel cutting
• Cutting accuracy of 0.05mm
• Direct Tekla model import and automatic nesting
• Cutting, hole cutting, lettering, and marking on one machine
• Stable gantry structure with dual-drive motion
• Handles all sections of an H-beam

Applications

• Cutting H-beams, I-beams, channels, and steel plate for steel structure fabrication
• Cutting bevels for weld preparation
• Part marking and hole cutting in structural steel

Who This Machine Is For

• Steel structure fabricators who cut both plate and profiles
• Shops moving from plasma or flame cutting to fiber laser
• Fabricators who already use Tekla for detailing

Frequently Asked Questions

What can it cut?
Steel plates and structural profiles, including H-beams, I-beams, and channels.

How thick can it cut?
1mm to 30mm (perforation cutting).

Can it cut bevels?
Yes, up to ±45°.

How accurate is it?
Kasry states a cutting accuracy of 0.05mm.

How do I get my drawings onto the machine?
The control system imports directly from Tekla models and nests parts automatically.

What size plate can it take?
The KR-LMJG-3010 handles plates up to 3m × 12m, and Kasry says this can be customised.

Can it mark parts?
Yes. Lettering and marking are done on the same machine.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This machine is available new, built to order.
