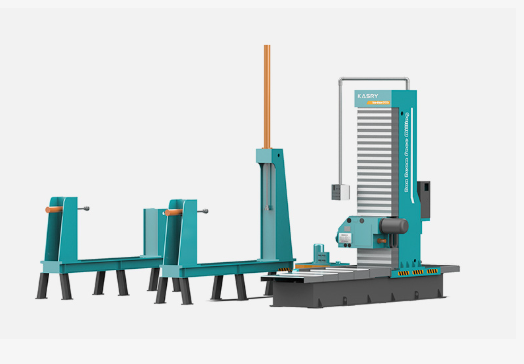

KRX-DMX CNC Face Milling Machine (Sections to 2000×1500mm) | Kasry, Dezhou, China

The KRX-DMX is a face milling machine for steel fabrication. A rotary cutter with multiple cutting edges removes material from the surface of the workpiece to leave a flat, smooth face, which prepares the piece for welding, assembly, or further machining. It handles workpieces with a section up to 2,000 × 1,500mm and plate thicknesses from 4mm to 80mm, in structural steel grades Q235A, Q235B, Q345, and Q420C.

The worktable travels 2,000mm horizontally and the milling head lifts through 1,500mm. Both the horizontal feed and the vertical lifting speed are numerically controlled and adjustable from 50 to 850mm/min. The milling head spindle runs at 111 to 628rpm.

Kasry lists this machine as a companion to its box beam assembly machine, which suggests its main use is preparing the ends of large box-section beams and columns so they fit tightly together for welding.

Why Choose a Dedicated Face Milling Machine?

Large fabricated sections are usually cut by thermal processes that leave rough, slightly uneven ends. Where two sections must meet squarely, such as in box columns, machined faces give a tighter fit-up and more accurate lengths.

• Flat, accurate faces. Milling removes the rough thermal cut edge and leaves a machined surface.
• Large capacity. Sections up to 2,000 × 1,500mm and plate up to 80mm thick.
• Controlled feed. Numerically controlled horizontal and vertical feeds from 50 to 850mm/min.
• Adjustable finish. Kasry says feed rate, spindle speed, and cutter type can be changed to vary the surface texture.
• Structural steel grades. Q235A, Q235B, Q345, and Q420C are covered.

Machine Specifications

• Model: KRX-DMX
• Maximum workpiece section size: 2,000 × 1,500mm
• Horizontal effective stroke of worktable: 2,000mm
• Effective lifting stroke of milling head: 1,500mm
• Workpiece plate thickness: 4mm to 80mm
• Workpiece materials: Q235A, Q235B, Q345, Q420C
• Horizontal feed milling speed: 50 to 850mm/min (numerical control)
• Vertical lifting milling speed: 50 to 850mm/min (numerical control)
• Milling head spindle speed: 111 to 628rpm
• Equipment size: 4.2 × 1 × 3m

Condition Available: New

Key Features

• Numerically controlled horizontal and vertical milling feeds
• Handles sections up to 2,000 × 1,500mm
• Plate thickness range of 4 to 80mm
• Works on Q235A, Q235B, Q345, and Q420C steel
• Adjustable feed rate, spindle speed, and cutter type for different surface finishes
• Compact footprint of 4.2 × 1 × 3m

Applications

• Face and end milling of large steel sections
• Preparing box beam and box column ends for fit-up and welding
• Surface preparation before further machining

Who This Machine Is For

• Steel structure fabricators producing box columns and beams
• Bridge and heavy construction steelwork manufacturers
• Fabricators who need machined faces on large welded sections

Frequently Asked Questions

What does this machine do?
It mills a flat, smooth face on large steel workpieces using a rotary cutter, ready for welding, assembly, or further machining.

What size workpieces can it handle?
Sections up to 2,000 × 1,500mm, with plate thicknesses from 4 to 80mm.

What steels can it machine?
Q235A, Q235B, Q345, and Q420C.

How fast does it cut?
Feed rates of 50 to 850mm/min, both horizontally and vertically, with spindle speeds of 111 to 628rpm.

Is it numerically controlled?
The horizontal and vertical milling feeds are numerically controlled. The page doesn't name a control system.

What is it used with?
Kasry lists it alongside its box beam assembly machine.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to submit.

Should I buy new or used?
This machine is available new, built to order.KRX-DMX Face Milling Machine

Kasry: Dezhou, Shandong, China

Numerically controlled milling machine for producing flat, accurate faces on large steel workpieces up to 2,000 × 1,500mm in section, with plate thicknesses from 4 to 80mm.
