Large Platform Fiber Laser Cutting Machine
Zhouxiang: Wuxi, Jiangsu, China
Gantry-type fiber laser cutter with a 9 to 15m X-axis stroke and 3m Y-axis stroke, offered from 3kW to 30kW, for cutting long and large-format metal plate.
Overview

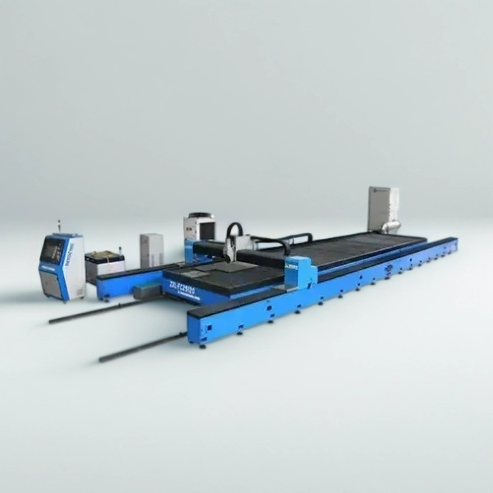

The Large Platform Fiber Laser Cutting Machine is a gantry-type fiber laser cutter built for large-format sheet and plate. The X axis travels 9,050 to 15,050mm, depending on the configuration, and the Y axis travels 3,050mm, so it can handle long plates in a single setup. The Z axis moves 100mm.
Zhouxiang describes the machine as using a gantry structure with precision ball screw, rack and pinion, and linear guide drive systems, and a German fiber laser source. Laser power ranges from 3kW to 30kW, so the machine can be matched to the thickness of the material you cut.
Positioning speed is up to 80m/min on both the X and Y axes. Zhouxiang says the machine is designed for industrial cutting with high precision and efficiency, and lists automotive, aerospace, and construction as example industries.
Why Choose a Large-Platform Laser Cutter?
Long plates such as those used in structural steel, machinery frames, and heavy fabrication are difficult to cut on standard-format machines. A large platform machine takes them in one piece, without repositioning.
- Very long cutting travel. 9 to 15m on the X axis.
- Wide power range. From 3kW for thin material to 30kW for heavy plate.
- Fast positioning. Up to 80m/min on X and Y.
- Precise axes. Repositioning accuracy of ±0.02mm on all three axes.
- Gantry construction. Designed for stability over large working areas.
Machine Specifications
X axis
- Moving stroke: 9,050 to 15,050mm
- Positioning accuracy: ±0.1mm
- Repositioning accuracy: ±0.02mm
- Maximum positioning speed: 80m/min
Y axis
- Moving stroke: 3,050mm
- Positioning accuracy: ±0.02mm
- Repositioning accuracy: ±0.02mm
- Maximum positioning speed: 80m/min
Z axis
- Moving stroke: 100mm
- Positioning accuracy: ±0.02mm
- Repositioning accuracy: ±0.02mm
Laser
- Laser type: fiber laser (described as German technology)
- Laser power: 3kW to 30kW
Drive: gantry structure with ball screw or rack and pinion drive and linear guides
Listed price range (supplier): $35,000 to $220,000 per machine (varies with configuration)
Condition Available: New
Key Features
- Gantry-type structure for large-format cutting
- X-axis stroke up to 15,050mm
- Laser power from 3kW to 30kW
- Positioning speed up to 80m/min on X and Y axes
- ±0.02mm repositioning accuracy on all axes
- Ball screw or rack and pinion with linear guide drives
Applications
- Cutting long, large-format metal plate
- Heavy plate and structural steel fabrication
- Industrial cutting for the automotive, aerospace, and construction industries
Who This Machine Is For
- Fabricators who regularly cut plates longer than 6 to 8m
- Structural steel and heavy fabrication shops
- Shops wanting one machine for both thin and thick plate by choosing the right laser power
Frequently Asked Questions
How large a plate can it cut?
The X-axis stroke is 9,050 to 15,050mm and the Y-axis stroke is 3,050mm, depending on configuration.
What laser power options are there?
3kW up to 30kW.
How fast does it move?
Up to 80m/min positioning speed on the X and Y axes.
How accurate is it?
Repositioning accuracy is ±0.02mm on all three axes. Positioning accuracy is ±0.1mm on the X axis and ±0.02mm on the Y and Z axes.
What price should I expect?
Zhouxiang lists $35,000 to $220,000, depending on configuration, laser power, and options.
Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.
Should I buy new or used?
This machine is available new, built to order.
