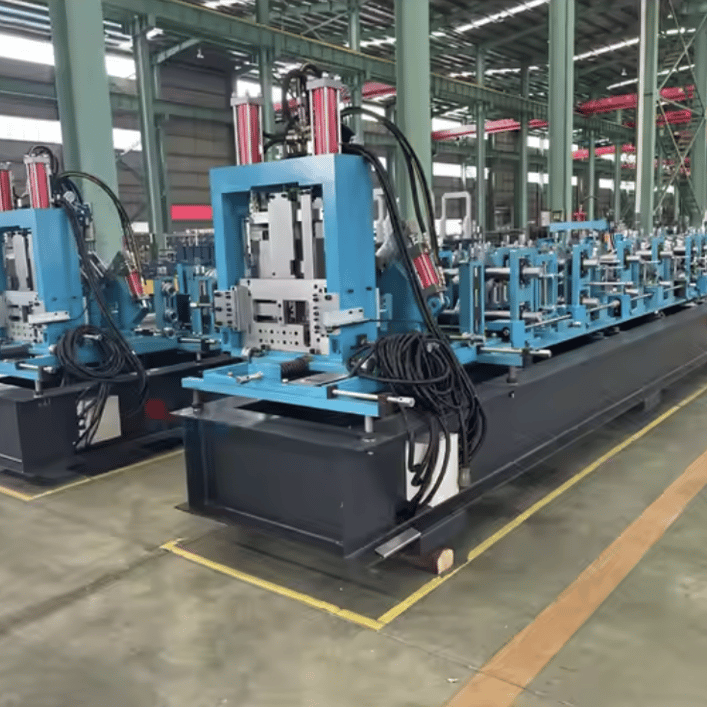

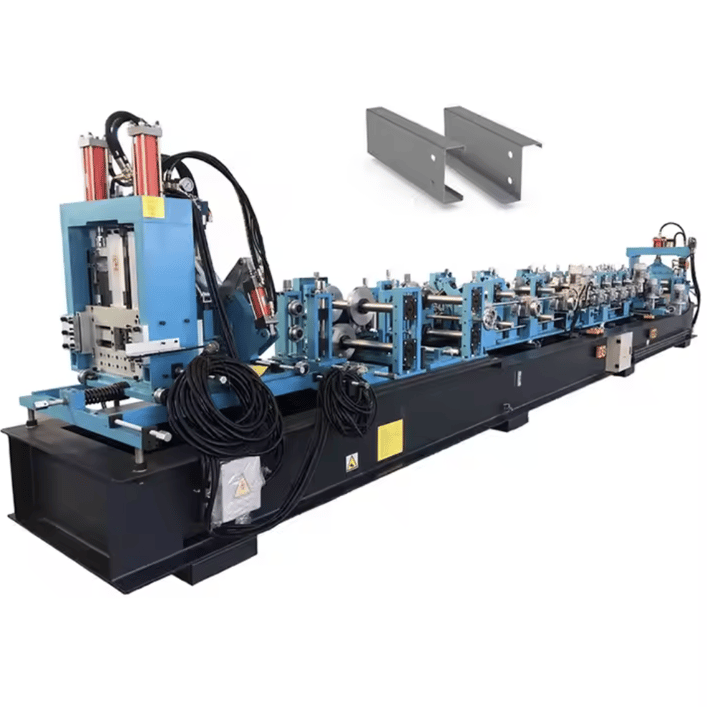

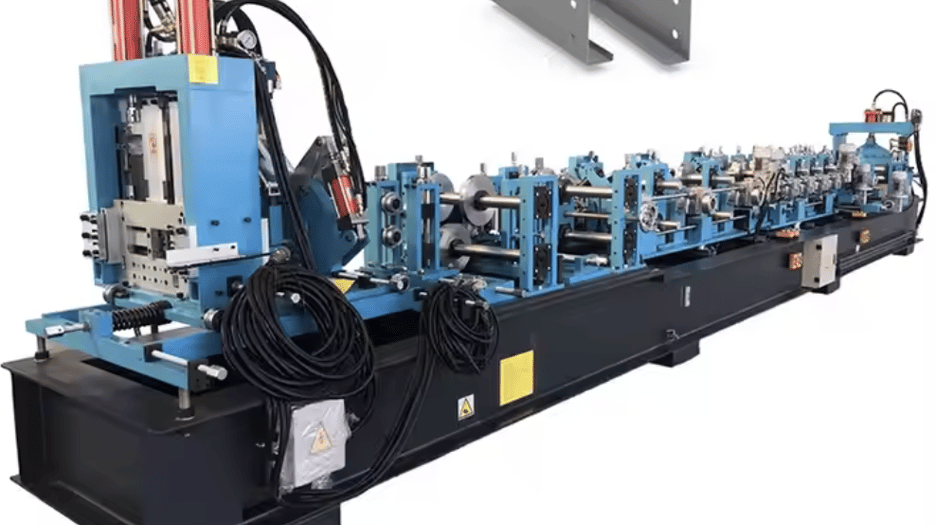

Light Gauge Auto Change Size C Z Steel Profile Metal Channel Roll Forming Purlin Making Machine in China
| Type | Steel Frame & Purlin Machine |
| Work Pressure | 16 MPA |
| Voltage | 380V |
| Power | 22KW |
Other attributes
| Core Components | PLC, Bearing, Motor, Gear, Pump |
| Production Capacity | 30m/min |
| Place of Origin | Jiangsu, China |
| Weight | 11 kg |
| Warranty | 2 years |
| Key Selling Points | Long Service Life |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Brand Name | SUPER |
| Dimension(L*W*H) | 10*1.5*1.3METER |

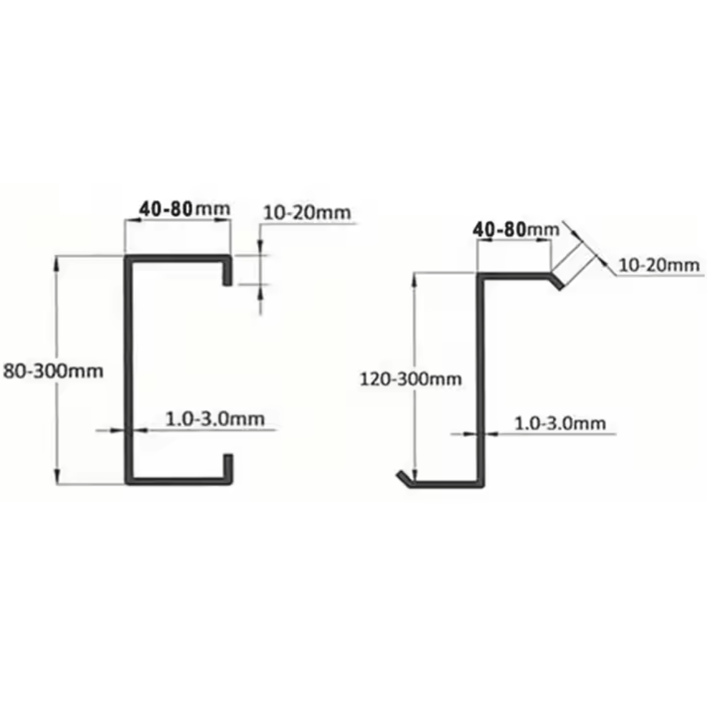

| Material Thickness | 1.0-3.0mm galvanized steel |
| Control System | PLC control Panel |
| Shaft Material | 40Cr(80mm) |
| Roller Material | GCr15 |
| Cutter Blade Material | Cr12Mov |
| After Warranty Service | Video technical support |
| Certification | CE |
Packaging and delivery
| Packaging Details | 1*40"HQ container interchange cz cold rolled purlins machine |
| Port | shanghai |
