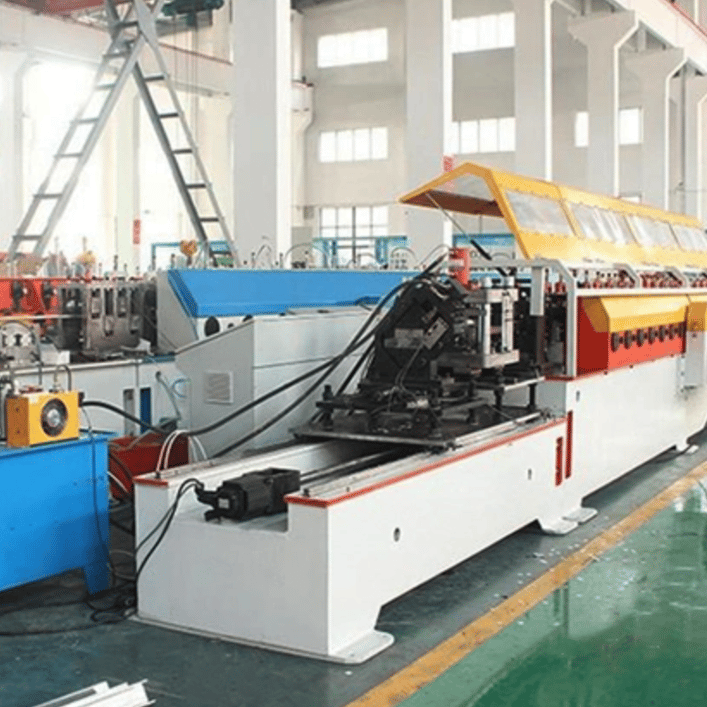

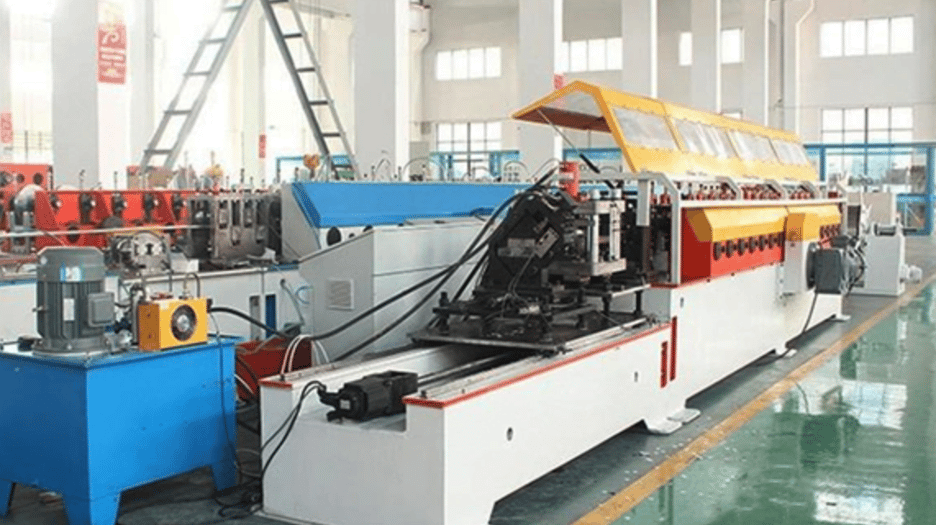

Light Gauge Roll Forming Machine in Texas, USA
- Condition
- New
- Supplier
- Roll Forming Machines United States
- Country
- United States
- Listing ID
- 8503
Request a Quote
To express an interest in this machine please submit the form below.
| Material | Colored steel sheet, galvanized steel sheet, aluminum sheet |
| Thickness of coil sheet | 1.0-2.0mm |
| Efficiency width | 25/30mm |
| Machine details | |
| Roller material | High grade NO. 45 forged steel |
| Shaft material | High grade NO. 45 carbon wrought steel |
| Cutting blade | Cr12 mould steel with quenched treatment |
| Diameter of shaft | 70mm or as your requirement |
| Main frame | 300 H steel |
| Forming steps | 16 stations |
| Productivity | 15-20m/min |
| Hydraulic station power | 4KW |
| Hydraulic pressure | 10-12MPa |
| Appearance size | 7700mm*1500mm*1500mm |
| Hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirement |
| Cut Mode | Hydraulic forming after cutting off |
| Cutter material | Cr12 Heat Treatment |
| Electronic control system | PLC, Touch Screen, Encoding counter |
| Color | Blue, green or yellow or as your requirement |
| Rolling material | 45# steel,roller surfaces polishing, hard plating |
