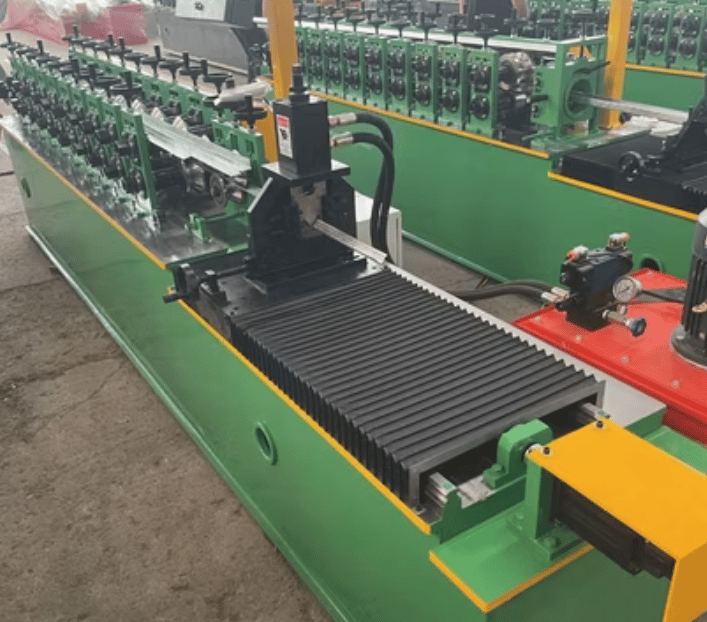

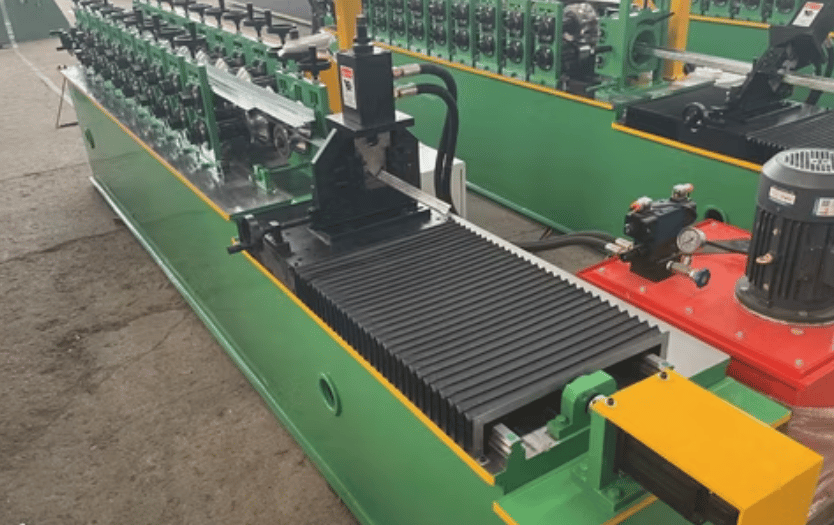

Light Steel Roll Forming Machine in Costa Rica

Mullti Profiles Light Gauge Steel Frame Roll Forming Machine for Steel Framing Villa

Profile Shape	C, U and Sigma Shape
Profile Size	135-305 mm
Material Thickness	1-2.5 mm, G300-G450 Zinc-Alum Steel Coil
Operation System	21 inches Touchable Screen
Production Control System	Self-devoloped FrameTec LGS machine Controlling Software
Design Software	Vertex BD from Finland
Comprehensive Machine Speed	Joists: 500 m/hr Walls: 800 m/hr
Max. Machine Speed	2,150m/hr
Power Supplier	380V, 50Hz, 3Phrases, can be customized
Hydraulic Coolant System	Self Cooling, Optional refrigeration device for high strength production, air cooling and AC cooling
Punching, Cutting Mould	Fixing tabs, Web hole, Service Hole, Dimple, Web Notch
Hole Punching Accuracy	± 0.5 mm
Decoiler	5000 kgs,auto decoiling

Classical LGS machine models for 6+ years, very stable and with high speed production speed	The MF300 produces wall frames, trusses and joists for residential and light commercial building quickly economically
Advanced hydraulic and punching functions for high productivity and versatile components production such as trusses, walls and joists	An auto-gauging system that automatically adjusts gauge range to increase overall productivity for steel thickness from 1 -2.5mm
High line speed results in the accelerated cold formed steel framing and truss manufacturing output	Smart internet connectivity provides cloud-based data reporting to enable real-time production management, and technical diagnostics to improve efficiency
High line speed results in the accelerated cold formed steel framing and truss manufacturing output	Self developing control system base on the market feedback that can meet your requirement well & with good after sales support
