PUTAI Ceiling Panel Linear Strip Roll Forming Machine – Automatic Metal Strip Ceiling Production Line

The PUTAI linear strip roll forming machine is an automatic production line for manufacturing metal linear strip ceiling panels used in suspended ceilings across commercial, industrial and public buildings. It forms 0.3–0.4 mm pre-painted steel coil through 12 precision stations into long, straight strip panels with a clean painted finish, then cuts each panel to length with a servo cutting system at up to 25 m/min. From airports and metro stations to shopping malls and office lobbies, it gives metal ceiling manufacturers consistent panel quality for design-led interiors.

What Is a Linear Strip Ceiling?

• A suspended ceiling made of long, narrow metal panels clipped side by side onto carriers
• Creates a clean, directional look that suits large open spaces
• Panels can be solid for a smooth finish or perforated with acoustic backing to reduce noise
• Available in many colours and finishes to match interior design schemes

Key Features

• Dedicated line for accurate, straight linear strip panels
• Forms 0.3–0.4 mm pre-painted steel with a clean surface finish
• 12 forming stations for gradual shaping that protects the painted coating
• Servo cutting system for accurate, repeatable panel lengths
• Length set by encoder counting or photoelectric detection of punched holes
• 11 kW main motor with gear drive for steady production at up to 25 m/min
• Heavy 60 mm shafts in 40Cr steel for rigid, accurate forming
• Archway roller stands with graduated adjusting nuts for quick, repeatable setup
• Hydraulic cylinders and pumps in national standard sizes, easy to replace worldwide

Technical Specifications

• Product: Linear strip ceiling panels
• Material: Pre-painted steel (PPGI)
• Material thickness: 0.3 – 0.4 mm
• Forming stations: 12
• Roller material: Cr12 (D3)
• Shaft diameter: 60 mm
• Shaft material: 40Cr steel
• Speed: Up to 25 m/min
• Transmission: Gear drive
• Main motor power: 11 kW
• Cutting system: Servo cutting
• Machine weight: Approx. 3,500 kg
• Automation: Automatic

How the Production Line Works

• Decoiling: The coil is loaded onto the uncoiler with tension control for steady feeding
• Roll forming: 12 stations bend the strip step by step into the linear panel profile

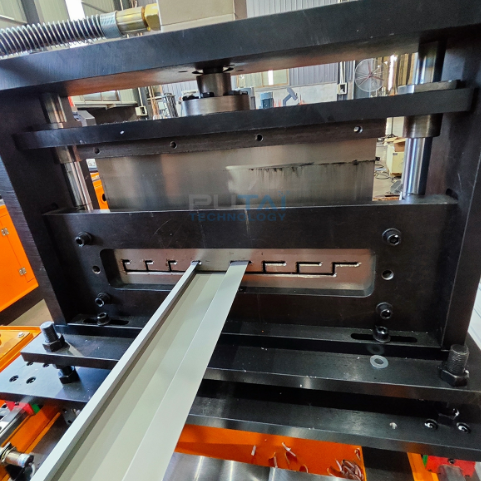

• Servo cutting: Each panel is measured and cut to the programmed length
• Output: Finished panels are collected for inspection and packing

Applications

• Suspended metal ceilings in commercial buildings
• Acoustic strip ceilings using perforated panels
• Decorative linear ceilings for retail and hospitality
• Airports, metro stations and transport hubs
• Shopping malls, office lobbies and public buildings

Related PUTAI Ceiling Machines

• Suspension ceiling carrier roll forming machine, for the carriers that hold linear strip panels
• U baffle ceiling roll forming machine
• Ceiling T grid roll forming machine

Commercial Details

• Brand: PUTAI Technology
• Place of origin: Tianjin, China
• Minimum order: 1 set
• Colour: Customised
• Packing: Plastic film wrap for export
• Warranty: One year
• After-sales: Engineer support provided

Frequently Asked Questions

• What material does the machine form? Pre-painted steel from 0.3 to 0.4 mm thick.
• How fast does it run? Up to 25 m/min.
• Will forming damage the painted surface? The strip is shaped gradually across 12 stations, which helps protect the coating. Share your coil specification with PUTAI to confirm the tooling setup.
• Can it produce perforated acoustic panels? Perforated panels are used for acoustic ceilings. Ask PUTAI about perforating options for this line.
• Can PUTAI supply the matching carrier machine? Yes. PUTAI also builds ceiling carrier roll forming machines, so you can produce complete linear ceiling systems.
• What should I send for a quotation? Your panel profile drawing, panel width, material and thickness, whether you need perforation, target output, and local voltage and frequency.
