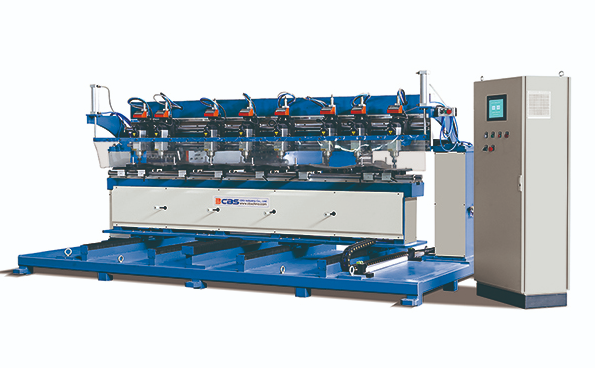

MAFM-830 CNC Multi-Head Slot Milling Machine for Aluminium Formwork | CBS Industry, Jinan, China

The MAFM-830 is a CNC multi-head milling machine for the automatic milling of slots in aluminium formwork panels. It handles U panels and IC profiles, and can be configured with 6, 7, or 8 individual milling heads, so up to 8 slots can be milled at the same time.

Each milling head works independently and has its own fine adjustment. Each milling shaft also has a digital measurement display, which makes it quicker to set the distance between slots. The feeding system is servo-driven, with settings that can be adapted to different working modes.

The machine has two working tables, so two workpieces can be loaded at the same time. The table is specially designed to suit both older and newer formwork panel designs, and the clamping fixtures are shaped to the workpiece. Fixtures for non-standard profiles can be made to order.

Why Choose a Multi-Head Slot Milling Machine?

Milling the slots in formwork panels one at a time is slow, and slot spacing errors show up later when panels are assembled on site. Milling many slots in a single pass, with spacing set by digital display, removes most of that variability.

• Many slots per pass. With 8 heads, up to 8 slots are milled at once.
• Fast set-up. Digital displays on each shaft and fine adjustment on each head make spacing easy to set.
• Independent heads. Each head works on its own, so you can run 6, 7, or 8 slots depending on the panel.
• Continuous loading. With two working tables, one workpiece can be loaded while the other is being milled.
• Works with older panels. The table design suits both old and new aluminium formwork panels, which helps if you also refurbish existing formwork.

Machine Specifications

• Milling heads: 6, 7, or 8 individual heads (configurable)
• Maximum slots milled at the same time: 8
• Minimum distance between two milling heads: 150 ± 0.1mm
• Milling width: 36mm, 40mm, or 42mm (selectable)
• L and U profile height range: 100mm to 600mm
• Maximum panel length: 3000mm
• Milling accuracy: ±0.15mm per 300mm
• Repeat positioning accuracy: ±0.10mm per 300mm
• Maximum working speed: 4500mm/min
• Main shaft speed: 9000 r/min
• Rated power: 2.2kW × 8
• Input voltage: 380/415V, 50Hz
• Working tables: 2 (two workpieces loaded at the same time)
• Feeding system: servo driven

Condition Available: New

Key Features

• Up to 8 milling heads, each working independently
• Digital measurement display on every milling shaft for quick slot spacing
• Fine adjustment on each milling head
• Servo-driven feeding system
• Two working tables for loading two workpieces at once
• Selectable milling widths of 36, 40, and 42mm
• Fixtures shaped to the workpiece, with custom fixtures available for non-standard profiles
• Table design suits both old and new aluminium formwork panels

Applications

• Slot milling in aluminium formwork U panels
• Slot milling in IC profiles
• Slot milling in L and U profiles from 100 to 600mm in height
• Production of new formwork panels and refurbishment of older ones

Who This Machine Is For

• Aluminium formwork manufacturers
• Formwork system producers who mill slots in high volumes
• Formwork refurbishment and repair operations

Frequently Asked Questions

How many slots can it mill at once?
Up to 8. The machine can be configured with 6, 7, or 8 individual milling heads.

How close together can the slots be?
The minimum distance between two milling heads is 150 ± 0.1mm.

What slot widths can it mill?
36mm, 40mm, or 42mm, selectable.

What size panels can it handle?
Panels up to 3000mm long, with L and U profile heights from 100mm to 600mm.

How accurate is it?
Milling accuracy is ±0.15mm per 300mm, and repeat positioning accuracy is ±0.10mm per 300mm.

Can it mill older formwork panels as well as new ones?
Yes. The worktable is designed to suit both old and new aluminium formwork panels.

Can it handle non-standard profiles?
Yes. The clamping fixtures are designed for the workpiece shape, and fixtures for non-standard profiles can be customised.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This model is available new, from a manufacturer that supplies complete formwork machine ranges and turn-key lines.
