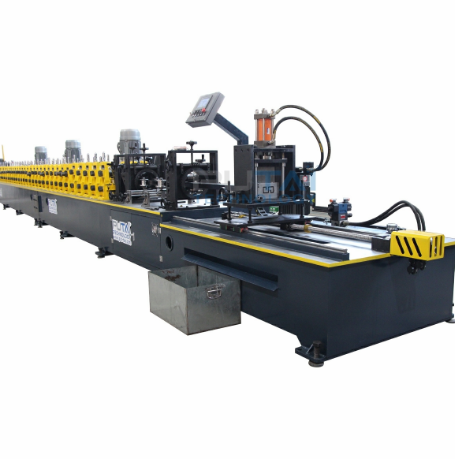

Metal Palisade Fence Roll Forming Machine | PUTAI, Tianjin, China
PUTAI Metal Palisade Picket Fence Roll Forming Machine – Palisade-Style Pales for Residential and Decorative Fencing
Palisade-style steel fencing gives homes, gardens and commercial frontages a clean, upright look with the durability of steel. The PUTAI metal palisade fence roll forming machine lets fencing manufacturers produce their own palisade-style pales and pickets from coil, forming 0.4–0.6 mm steel through 18 stations at up to 30 m/min. Twin 5.5 kW motors and PLC control deliver steady, repeatable production, with every pale formed to the same profile for fences that line up straight and even.
What Is Palisade-Style Fencing?
- A fence made from vertical steel pales fixed closely side by side to horizontal rails
- Gives a strong visual boundary and more privacy than open wire fencing
- Roll-formed pales are light, straight and quick to install
- Steel won't rot, warp or attract termites like timber
- Popular for homes, gardens, schools, parks and business frontages
Built for Fence Manufacturers
- Output: Up to 30 m/min to keep pace with large orders
- Consistency: 18 forming stations give every pale the same profile and dimensions
- Strength: Cold forming work-hardens the steel, adding stiffness to light-gauge pales
- Power: Twin 5.5 kW motors for smooth, even forming
- Control: PLC for easy setting of pale length and batch quantity
- Durability: Cr12 rollers and 40Cr shafts for long service life
- Setup: Archway roller stands with graduated adjusting nuts for accurate, repeatable adjustment
- Footprint: Compact at approx. 5.5 × 1.2 × 1.4 m
Machine Specifications
- Product: Palisade-style fence pales and pickets
- Material: Steel coil
- Material thickness: 0.4 – 0.6 mm
- Forming stations: 18
- Roller material: Cr12 (D3)
- Shaft: 50 mm, 40Cr steel
- Speed: 0 – 30 m/min
- Transmission: Gear drive
- Main motor power: 5.5 kW × 2
- Control system: PLC
- Machine size: Approx. 5.5 × 1.2 × 1.4 m
- Machine weight: Approx. 3,000 kg
- Automation: Automatic
Where Palisade-Style Fences Are Used
- Residential front and boundary fences
- Garden and pool surrounds
- Schools, parks and playgrounds
- Shop fronts and business premises
- Housing developments and estates
Related PUTAI Machines
- Metal picket fence roll forming machine
- Sliding gate roller track roll forming machine
Buying Information
- Brand: PUTAI Technology
- Company: Tianjin PUTAI Technology Co., Ltd
- Factory: Bazhou, Hebei, China
- Minimum order: 1 set
- Colour: Customised
- Packing: Plastic film wrap for export
- Delivery time: 60 days
- After-sales: Engineer support provided
Buyer Questions
- Where is this machine made? At PUTAI's factory in Bazhou, Hebei, China. The company office is in Tianjin, and machines are exported worldwide.
- Is this machine suitable for high-security palisade fencing? No. High-security palisade uses much heavier steel, typically 2–3 mm. This machine is designed for residential and decorative palisade-style fencing in 0.4–0.6 mm steel.
- How fast does it run? Up to 30 m/min.
- Can the pale profile be customised? Yes. Profiles are built to your drawing.
- How much space does it need? The machine is approx. 5.5 × 1.2 × 1.4 m, plus room for the decoiler and run-out.
- How long is delivery? Around 60 days.
- What should I send for a quotation? Your pale profile drawing or sample, material and thickness, length range, target output, and local voltage and frequency.
