PUTAI Picket Metal Fence Profile Roll Forming Machine – Made in Tianjin, China

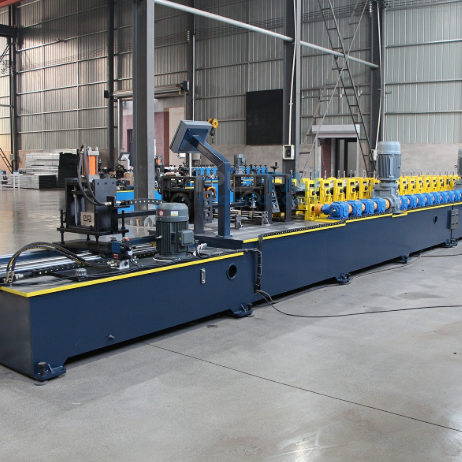

The PUTAI metal picket fence roll forming machine is an automatic production line for manufacturing steel fence pickets and light fence profiles. Built at PUTAI's factory in Tianjin, China, it forms 0.4–0.6 mm steel coil through 18 precision stations at up to 30 m/min, producing pickets with identical dimensions, profile and strength every time. It gives fencing manufacturers a fast, low-cost alternative to manual fabrication for residential, agricultural and commercial fencing markets.

What Is a Metal Picket Fence?

• A fence made from vertical roll-formed steel pickets fixed to horizontal rails
• A durable, low-maintenance alternative to timber that won't rot, warp or attract termites
• Often made from pre-painted or galvanized steel for a long-lasting coloured finish
• Popular for gardens, homes, farms, schools and commercial boundaries

Key Features

• Automatic production from coil to finished picket
• Speeds of up to 30 m/min for high-volume output
• 18 forming stations for accurate, consistent profiles
• Twin 5.5 kW motors for steady forming power
• Cold forming work-hardens the steel, adding strength and rigidity to each picket
• PLC control for easy setting of length and quantity
• Gear drive for accurate, low-maintenance running
• Cr12 rollers for high wear resistance and long service life
• Archway roller stands with graduated adjusting nuts for quick, repeatable setup
• Compact footprint of approx. 5.5 × 1.2 × 1.4 m

Technical Specifications

• Product: Metal fence pickets and fence profiles
• Material: Steel coil
• Material thickness: 0.4 – 0.6 mm
• Forming stations: 18
• Roller material: Cr12 (D3)
• Shaft diameter: 50 mm
• Shaft material: 40Cr steel
• Speed: 0 – 30 m/min
• Transmission: Gear drive
• Main motor power: 5.5 kW × 2
• Control system: PLC
• Machine size: Approx. 5.5 × 1.2 × 1.4 m
• Machine weight: Approx. 3,000 kg
• Automation: Automatic

Why Roll Forming for Fence Pickets?

• Faster output: Continuous production far outpaces manual or press-based fabrication
• Consistent quality: Every picket matches in size and profile, so fences go up straight and even
• Stronger product: Cold forming increases the stiffness of thin steel
• Lower cost: Less labour and less material waste per picket

Applications

• Residential garden and boundary fences
• Agricultural and farm fencing
• School, park and public space fencing
• Commercial and industrial boundaries
• Decorative steel fence panels

Commercial Details

• Brand: PUTAI Technology
• Manufacturer: Tianjin PUTAI Technology Co., Ltd
• Place of origin: Tianjin, China
• Minimum order: 1 set
• Colour: Customised
• Packing: Plastic film wrap for export
• Delivery time: 60 days
• After-sales: Engineer support provided

Frequently Asked Questions

• Where is this machine made? It is manufactured by Tianjin PUTAI Technology Co., Ltd at its factory in Tianjin, China, and exported worldwide.
• What thickness can it form? Steel from 0.4 to 0.6 mm.
• How fast does it run? Up to 30 m/min.
• Can it make different picket profiles? Profiles are built to your drawing, and other shapes can be produced by changing the roller sets.
• Why are roll-formed pickets strong despite thin steel? Cold forming work-hardens the steel, and the formed profile adds stiffness.
• How long is delivery? Around 60 days.
• What should I send for a quotation? Your picket profile drawing or sample, material type and thickness, length range, any punching needs, target output, and local voltage and frequency.
