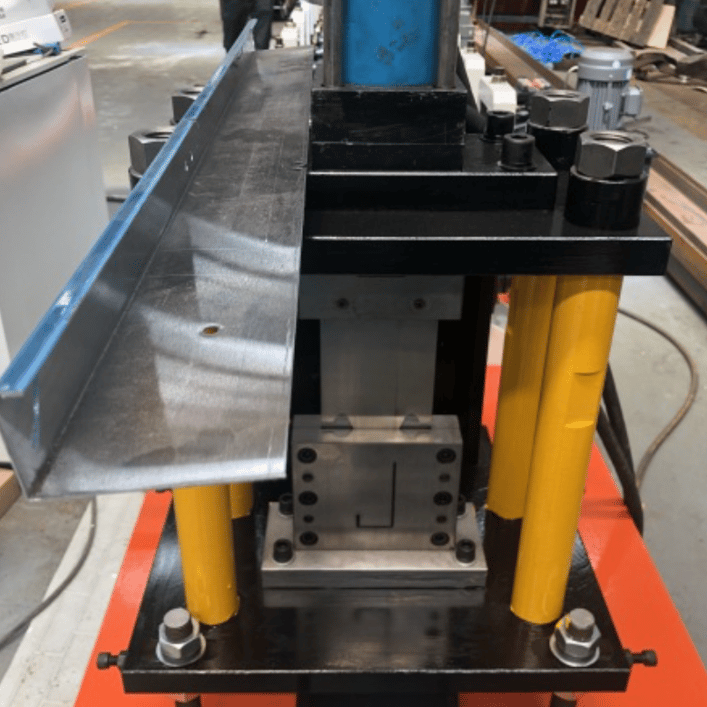

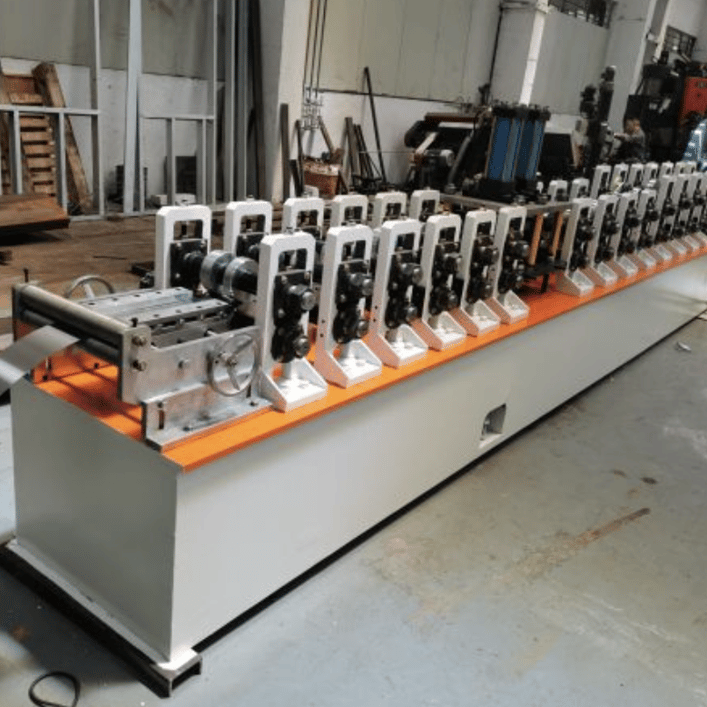

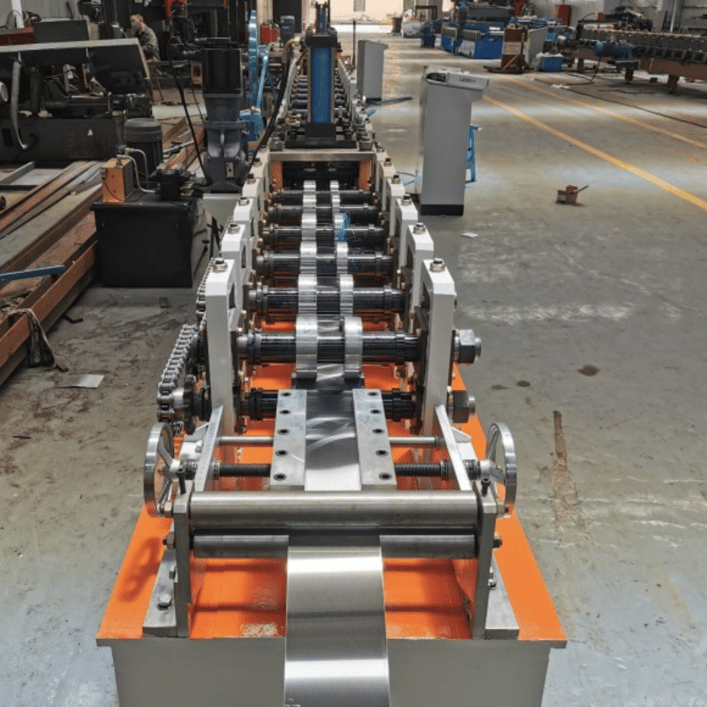

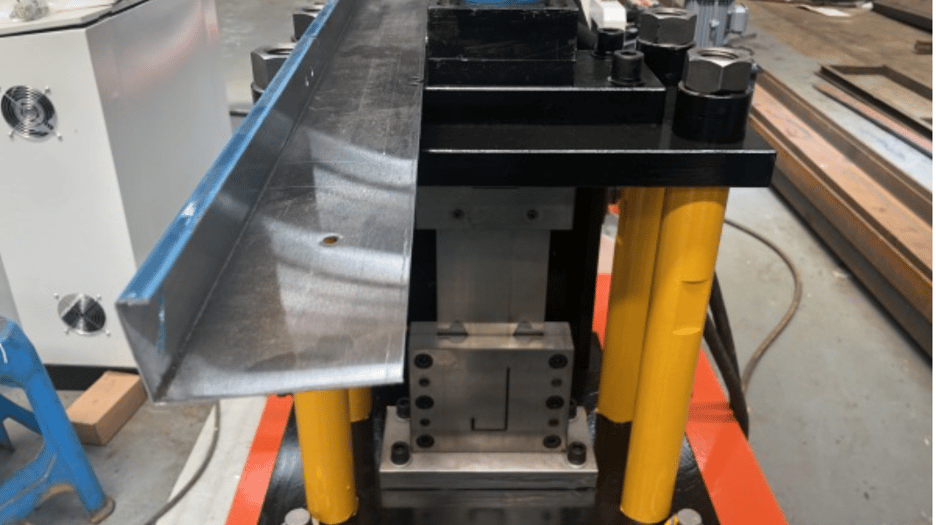

Metal Siding Trim J Channel Roll Forming Machine in Wuxi, China
This machine to produce J channel, J-channel has traditionally been used as trim around windows and doors during vinyl and aluminum siding installations, along with being used quite frequently for soffit. It can also be used to finish areas where horizontal siding dead ends into another material
| Material of coil | Material Thickness | 0.3-0.8mm galvanized sheet full hard 85-95, G550, PPGI |
| Forming system | Rolling Speed | 0-10 m/min( without the cutting time) |
| Roller Stations | About 16-18 stations | |
| Roller Material | 45# Steel with quenching 60mm shaft | |
| Maim Motor Power | 5.5 kw | |
| Hydraulic cutting Power | 4 kw | |
| Bearing | Rubber sealing bearing | |
| Cutting system |
Material Of Cutting | CR12 with quench treatment |
| Hardness | HRB 85-95 | |
| Tolerance | +-1.5mm | |
| Cutting way | Stop cutting | |
| Electrical control system | Electric Source | 220V, 60HZ,3 phase Also can satisfy Customer’s require |
| Control System | PLC Delta | |
| Inverter | Delta | |
| Weight | About 2.5 tons | |
| Way Of Drive | 1 inch single chain | |
| Size of machine | Length 7500mm* Width 800mm* Height 500m | |
| MOTOR | Under the frame of the machine |
Request a quote
We'll respond within one business day
Enquiring about Metal Siding Trim J Channel Roll Forming Machine in Wuxi, China
Prefer to talk?
Call us on +44 20 3355 6554 (UK) or +1 407 887 3237 (US) to speak directly with our sales engineers.
- Condition
- New
- Supplier
- Roll Forming Machines
- Country
- China
- Categories
- Wall Cladding & Siding Machines J Channel / J Trim
- Listing ID
- 14062
