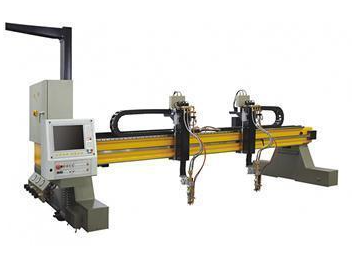

MG Multi-Head CNC Plasma Cutting Machine (3-6.5m Span, Rails to 40m) | Jinfeng, Ningbo, China

MG Multi-Head Plasma Cutting Machine

Jinfeng (Ningbo Jinfeng Welding & Cutting Machinery Manufacture): Cixi, Ningbo, China

CNC gantry cutting machine with a 3 to 6.5m span, rails of 8 to 40m, and one or two torch carriages, for plasma cutting of complex shapes and rapid strip cutting from plate, with optional flame, bevel, and marking units.

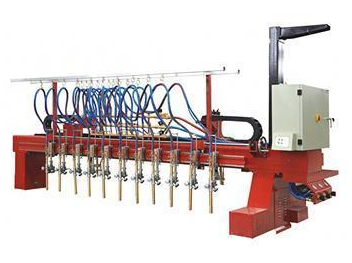

The MG Multi-Head Plasma Cutting Machine is a CNC gantry for cutting plate. Its CNC cutting head handles complicated shapes, and with a plasma source fitted it cuts sheet quickly. A straight cutting head cuts strips (steel bars) from steel plate efficiently and with little deformation.

The machine is made in a range of sizes: the span can be anywhere from 3,000 to 6,500mm, the effective cutting width is the span less 800mm, and the rail is 8 to 40m long, with an effective cutting length of the rail less 2m. It has one or two cutting torch carriages, bilateral drive, and uses a plasma source of up to 200A with arc-voltage height control. The plasma dust removal system can be dry, shallow water, or underwater.

The structure is built to hold accuracy: the cross beam and end frames are welded in an automatic welding centre to reduce distortion, and all stressed parts are stress-relieved. Jinfeng says it machines its frames on its own multi-axis CNC machining centres, which keeps the beam parallel to the rail and the holes accurately positioned. The torch base has 360° anti-collision protection and a heavy torch lifter with manual, electric, and automatic height modes, and the machine is controlled by an imported PLC.

Why Choose a Multi-Head Plasma Cutter?

Long rails and multiple torches let one machine cut large plates and long strips efficiently. Choosing the dust removal method (dry, shallow water, or underwater) lets you match the machine to your fume and noise requirements.

• Very long cutting travel. Rails up to 40m for long plate and strip work.
• Flexible spans. 3 to 6.5m to match your plate widths.
• Choice of dust control. Dry, shallow water, or underwater plasma cutting.
• Multiple torches. One or two carriages, with twin and triple torch options.
• Add-on functions. Flame cutting, bevel cutting, powder marking, and inkjet marking.

Machine Specifications

• Model: MG
• CNC system: Chinese-made or imported
• Drive: bilateral drive
• Machine span: 3,000 to 6,500mm
• Effective cutting width: span minus 800mm
• Rail length: 8 to 40m
• Effective cutting length: rail length minus 2m
• Cutting torch carriages: 1 to 2
• Single flame cutting torch: optional
• Rail: 38kg/m
• Nesting software: FastCAM or APNS3000 (1 set)
• Plasma power source: up to 200A
• Torch height control: arc voltage height adjustment
• Plasma dust removal: dry, shallow water, or underwater
• Specific functions: powder marking, perforation with third-level air supply, triple torch
• Non-cutting speed: 0.1 to 6m/min (as listed)
• Torch lifting stroke: 200mm
• Linear positioning precision: ±0.5mm per 10m
• Linear repeatability: ±0.4mm per 10m
• Marking precision: 0.5mm or better
• Set speed error: ±5% or better
• Cut surface roughness: Ra 12.5 to 25
• Automatic height adjustment precision: 0.5mm or better
• Machine specification: 4.8 × 1.8 × 2.3m (as listed)

Construction

• Cross beam and end frames welded in an automatic welding centre; stressed parts stress-relieved
• Linear rails on both axes; spring-loaded engaged gear and rack
• Torch base with 360° anti-collision protection
• Torch lifting: manual, electric, or automatic height adjustment
• Imported PLC

Condition Available: New

Optional Cutting and Marking Units

• Single flame cutting torch: up to 200mm thick (300mm by contract), with flashback arrestors
• Flame triple or fourfold torch bevel station: V, X, Y, and K bevels, 0 to 45°, up to 75mm thick
• Rotation, contour bevel, or curve cutting torch: ±45° deflection and ±540° rotation for cutting bevels on curves
• Double or twin torch: two flame torches adjustable from 80 to 200mm apart
• Powder marking device: white line of 0.8 to 1mm to show part shapes and welding lines
• Inkjet marking device: prints symbols, dates, and text on cut parts, at up to 12m/min

Key Features

• Spans from 3 to 6.5m and rails from 8 to 40m
• One or two cutting carriages
• Plasma cutting up to 200A, with optional flame cutting
• Dry, shallow water, or underwater dust control
• 360° torch anti-collision protection
• Frames welded in an automatic welding centre and stress-relieved

Applications

• Cutting complex shapes and sheet in steel, stainless, and aluminium

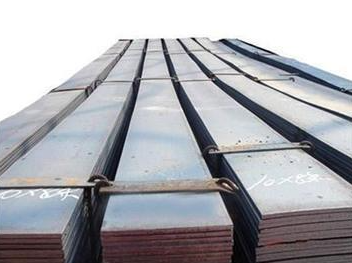

• Cutting strips from plate
• Long-plate and strip cutting for structural steel and heavy fabrication

Who This Machine Is For

• Fabrication shops and steel service centres cutting large or long plate
• Shops that need a choice of dust control (dry, water table, or underwater)
• Buyers who want to add flame and bevel cutting to a plasma gantry

Frequently Asked Questions

What sizes can it cut?
Spans from 3,000 to 6,500mm (cutting width is span less 800mm), on rails of 8 to 40m.

How many torches does it have?
One or two cutting torch carriages, with optional single flame, twin, and triple torch units.

Which plasma source does it use?
A plasma source of up to 200A. The brand isn't stated (see notes).

How is dust controlled?
The plasma dust removal can be dry, shallow water, or underwater.

Can it cut bevels?
Yes, with the optional flame bevel station (0 to 45°) or rotating contour bevel torch.

Can it mark parts?
Yes, with the optional powder marking and inkjet marking devices.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This machine is available new, built to order.
