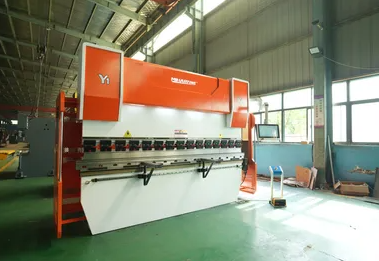

Miharting WC67Y/K-100/3200 CNC Hydraulic Press Brake: 100 Ton, 3200 mm in Wuhu, China

Miharting WC67Y/K-100/3200 CNC Hydraulic Press Brake: 100 Ton, 3200 mm

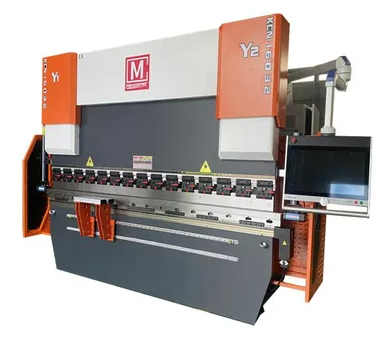

The Miharting WC67Y/K-100/3200 is a 100-ton CNC hydraulic press brake with a 3200 mm bending length and a Delem DA69T controller. It is built for bending carbon steel and stainless steel sheet, and comes CE certified with a 2-year warranty.

Key Specifications

Model: WC67Y/K-100/3200
Bending force: 1000 kN (100 tons)
Bending length: 3200 mm
Throat depth: 320 mm
Ram stroke: 140 mm
Maximum opening height: 395 mm
Main motor power: 7.5 kW
CNC controller: Delem DA69T
Servo-controlled axes: X, Y, and R
Materials: Carbon steel and stainless steel
Certification: CE
Warranty: 2 years
Color: Customizable

Features

Rigid welded frame. The frame is fully welded and machined as one structure, which keeps it stiff under load and holds bend accuracy over time.

Torsion bar synchronization. A steel torsion bar with mechanical stops keeps the ram level across the full 3200 mm length, so bend angles stay consistent from end to end.

Delem DA69T CNC control. The DA69T controller supports angle programming, so operators can enter the target angle and let the controller calculate the bend. That cuts setup time and raises throughput.

Servo-driven backgauge. The X and Y axes are driven by servo motors through heavy-duty synchronous belts, giving fast, quiet, and accurate positioning. A motorized R axis adjusts backgauge height.

Precision backgauge components. Imported ball screws and linear guide rails on the backgauge maintain positioning accuracy so parts stay within tolerance.

Imported hydraulic system. Imported hydraulic components deliver stable, accurate performance through long production runs.

Applications

This 100-ton press brake suits general sheet metal fabrication, including cabinets and enclosures, brackets, kitchen equipment, automotive parts, agricultural machinery parts, and architectural panels up to 3.2 meters long.

Other Sizes in the WC67Y/K Series

The WC67Y/K series runs from 40 tons with 2500 mm length up to 600 tons with 6000 mm length. The 100-ton model is also available in 2500 mm, 4000 mm, and 5000 mm lengths.

Ordering, Lead Time, and Payment

Lead time is about 7 days for available stock, or 20 to 30 days after deposit for production orders. Payment terms are a 30% deposit with the 70% balance due before shipment, by T/T, Western Union, MoneyGram, or PayPal. Miharting supplies export documents, certificates of conformance, and certificates of origin. Installation and commissioning are available remotely or on-site.

Frequently Asked Questions

What is the bending capacity of the Miharting WC67Y/K-100/3200?
It has a bending force of 100 tons (1000 kN) and a maximum bending length of 3200 mm.

What controller does this press brake use?
It uses the Delem DA69T CNC controller, with servo control of the X, Y, and R axes.

What materials can it bend?
It is designed for carbon steel and stainless steel sheet.

Does it come with a warranty?
Yes, it includes a 2-year warranty and is CE certified.

How do I choose the right press brake size?
Share your material type, maximum sheet thickness, and maximum sheet width with Miharting, and they will recommend the right tonnage and length.

How long does delivery take?
About 7 days for stock machines, or 20 to 30 days after deposit for production orders.
