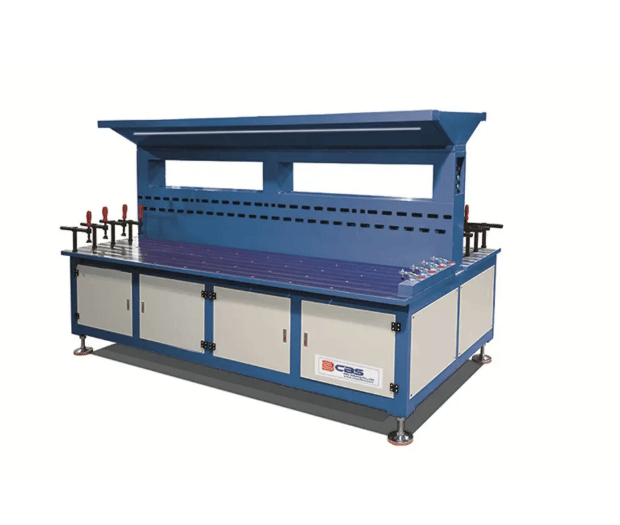

MWT-3000 Aluminium Formwork Welding Table | CGMA, Jinan, China

The MWT-3000 is a welding worktable designed mainly for welding aluminium formwork panels. The top is made from 30mm thick steel plate, finely machined for high strength and no deformation, so panels stay flat and accurately located while they are being welded.

Two worktables are integrated into one unit, with an individual worktable on each side, which saves floor space and lets two operators work at once. Both ends of each table have manual fast clamps that make locating and securing panels quick and easy.

The table also includes working-environment features. Six LED lights along the top improve visibility, and two high-efficiency exhaust fans (with a 360mm exhaust pipe diameter) draw away welding fume to make conditions more comfortable for operators.

Why Choose a Dedicated Formwork Welding Table?

Aluminium formwork panels must be welded flat and to accurate dimensions, and a warped or unsuitable bench makes that difficult. A purpose-built table gives you a stable, flat reference surface and a fast way to hold panels.

• Flat and rigid. The 30mm steel plate top is finely machined and resists deformation.
• Fast clamping. Manual fast clamps at each end make positioning quick.
• Two stations in one. Two worktables share a frame, saving workshop space.
• Better working conditions. Six LED lights and two exhaust fans improve lighting and fume control at the point of work.

Machine Specifications

• Input voltage: 220V, 50Hz
• Rated power: 1.5kW
• Worktable height: 850mm
• Worktable length: 2,900mm
• Worktable width: 720mm (per side)
• Worktable material: 30mm thick steel plate, finely machined
• Clamps: manual fast clamps (both ends)
• Lighting: six LED lights
• Fume extraction: two high-efficiency exhaust fans, 360mm exhaust pipe diameter
• Overall dimensions (L × W × H): 3,020 × 1,700 × 1,900mm

Condition Available: New

Key Features

• 30mm thick steel plate worktable with fine machining for high strength and no deformation
• Two integrated worktables (one on each side) to save space
• Manual fast clamps at both ends for easy location and operation
• Six LED lights for better working conditions
• Two high-efficiency exhaust fans with 360mm exhaust pipe

Applications

• Welding aluminium formwork panels
• Formwork panel fabrication and assembly workshops

Who This Machine Is For

• Aluminium formwork manufacturers
• Formwork fabrication workshops that assemble panels by hand
• Operations adding welding stations alongside cutting and milling equipment

Frequently Asked Questions

What is this table used for?
Welding aluminium formwork panels. It holds and locates the panel on a flat steel surface while it is welded.

How is the panel held in place?
Manual fast clamps at both ends of each worktable secure the panel quickly.

How many people can work at it at once?
Two worktables are integrated into one unit, one on each side, so two operators can work at the same time.

Does it deal with welding fume?
Yes. It has two high-efficiency exhaust fans with a 360mm exhaust pipe diameter, and six LED lights for visibility.

What size is it?
The worktable is 2,900mm long and 720mm wide per side, standing 850mm high. Overall dimensions are 3,020 × 1,700 × 1,900mm.

What power does it need?
220V, 50Hz, with a rated power of 1.5kW for the fans and lighting.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This model is available new, from a manufacturer with 23 years of experience in aluminium processing machinery.
