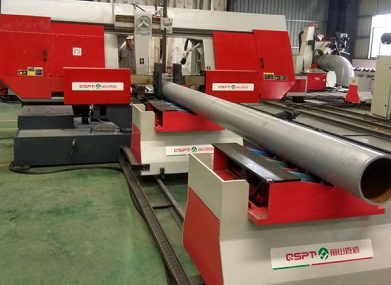

Pipe Conveying System for Cutting Band Saw PLRCS (DN400-1000) | Qianshan, Shanghai, China

The PLRCS is a pipe conveying system designed to work with Qianshan's pipe cutting band saw machines. It carries the pipe through the saw, automatically or manually, while it is cut, and the cut pieces can be removed from the machine with a turnover mechanism if needed. It handles DN400, DN600, DN800, and DN1000 pipe across the PLRCS-16Aa, 24Aa, 32Aa, and 40Aa models.

The system uses V-type polyurethane rollers, the same as those used in the band saw's own internal conveying, which keeps the pipe aligned in all directions as it moves. Speed is adjustable from 2 to 20m/min, either manually or with stepless variable frequency control. Operators control it from a console, and wireless remote control is available as an option.

Qianshan says the system raises the automation level of the pipe fabrication plant and reduces the hazards of hoisting pipe.

Why Choose a Matched Conveying System?

A band saw is only as fast as the pipe can be loaded and cleared. A conveyor designed for the saw keeps the pipe aligned and moving, without crane handling or manual positioning.

• Matched to the saw. Rollers are the same type as the band saw's own conveying, so alignment is consistent through the whole line.
• Automatic or manual. Choose PLC control, shared with the pipe cutting length-measuring system, or manual control.
• Safer handling. Less crane hoisting of heavy pipe.
• Fast when needed. Conveying speed up to 20m/min.
• Built to fit. Line length can be adjusted to the plant layout.

Machine Specifications

• Models: PLRCS-16Aa / 24Aa / 32Aa / 40Aa
• Applicable pipe: DN400 / DN600 / DN800 / DN1000
• Conveying length: feed-in end 1,000mm or more; feed-out end 500mm or more
• Line length: 7.5m at the feed-in end and 7.5m at the feed-out end (or as required by the customer)
• Line height: 800mm
• Roller bench material: carbon steel with blue-treated surface (rubber-coated if necessary)
• Rollers: V-type polyurethane
• Conveying speed: 2 to 20m/min
• Speed adjustment: manual or variable frequency stepless
• Control system: manual (A1), or PLC control shared with the pipe cutting length-measuring system (A2)
• Remote control: wireless remote control optional

Condition Available: New

Key Features

• V-type polyurethane rollers matched to the band saw's own conveying
• Automatic or manual conveying during cutting
• Turnover mechanism available to remove cut pieces
• Stepless speed control from 2 to 20m/min
• Two control options: manual console (A1) or PLC shared with the length-measuring system (A2)
• Wireless remote control optional
• Rubber-coated rollers available where needed

Applications

• Feeding pipe into a cutting band saw and clearing cut pieces
• Pipe cutting lines in pipe fabrication plants
• Reducing crane handling in pipe preparation

Who This Machine Is For

• Pipe spool fabrication shops
• Petrochemical, power, and shipbuilding pipework fabricators
• Plants installing or upgrading a pipe cutting line

Frequently Asked Questions

What does this system do?
It conveys pipe into and out of a cutting band saw, automatically or manually, while the pipe is cut.

What pipe sizes does it handle?
DN400, DN600, DN800, and DN1000, depending on model.

What is the difference between the A1 and A2 control options?
A1 is manual control. A2 is PLC control, shared with the pipe cutting length-measuring system, so the conveyor and saw work together.

How fast can it move pipe?
From 2 to 20m/min, adjustable manually or with stepless variable frequency control.

Why polyurethane V-rollers?
They match the rollers inside the band saw, which keeps pipe aligned in all directions, and they are gentler on the pipe surface.

Can the length be customised?
Yes. The 7.5m line length at each end can be changed to suit the plant layout.

Which saw does it work with?
Qianshan's pipe cutting band saw machines, including its high-speed and numerical control models.

Is financing or staged payment available?
Yes. A deposit secures your order and begins production, with the remaining balance due only once your machine has been built, inspected, and is ready to ship.

Should I buy new or used?
This system is available new, built to your plant layout.
